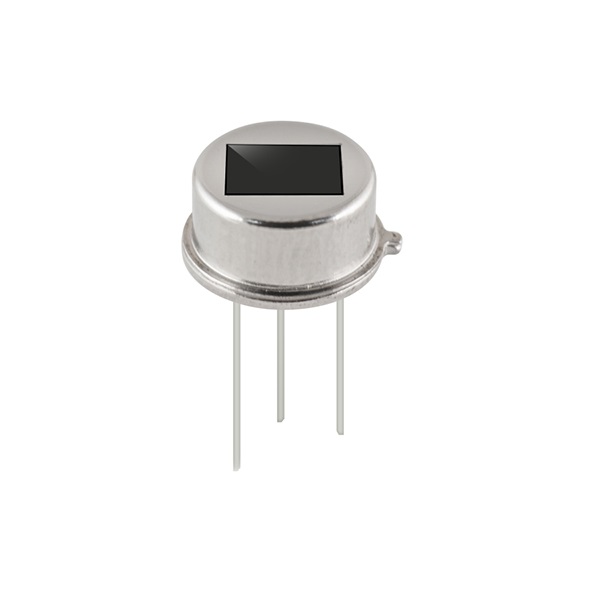

D204S 2-Element Pyroelectric PIR Sensor
- Anti-interference
- Custom design is available
- Higher in cost-performance
- Low power consumption
SKU: Not Found
Brand: Generic
Out of stock
₹47.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
D204 S 2 Elements Pyroelectric Infrared Analog PIR sensor comes standard with enhanced immunity to EMI (Electro-Magnetic Interference). It widely used in the security system.
Field of View
Features:
- Anti-interference
- Custom design is available
- Higher in cost-performance
- Low power consumption
Applications:
- Intelligent security- burglar alarm
- Wireless infrared detection alarm uses advanced signal analysis and processing technology. When the intruder enters through the detection area, it sends an alarm signal to the control panel.
- The PIR sensor is suitable for home, residential area, factory, shopping mall, warehouse, and offices.
Package Includes:
1 x D204 S 2 Elements Pyroelectric Infrared Analog PIR Sensor
Technical Specifications
| Detectivity (D*) | 1.4 ×108 cmHz1/2/W |
|---|---|
| Encapsulation Type | TO-5 |
| IR Receiving Electrode | 2×1mm, 2 elements |
| Item Type | Sensor |
| Model | PIR Sensor |
| Model No | D204 S |
| Noise[Vp-p] | <70mV |
| Offset Voltage | 0.3～1.2V |
| Operating Temperature (°C) | -30—70ºC |
| Output Balance | <10% |
| Output Signal | ≥3500mV [Vp-p] |
| Sensitivity (dBm) | ≥3300V/W |
| Shipping Dimensions | 8 × 10 × 1 cm |
| Shipping Weight | 0.05 kg |
| Spectral Response | 5—14μm |
| Supply Voltage (V) | 3—15V |
| Transmittance | ≥75% |
| Window Size | 4×3mm |
