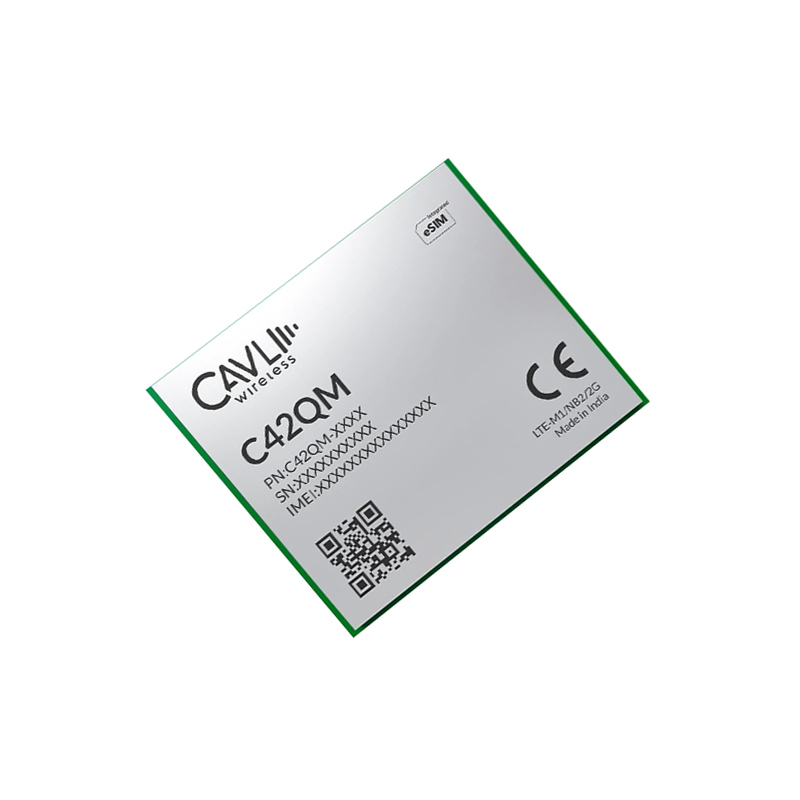

C42QM LTE Cat M1/ NB-IoT Module, designed for IoT and M2M applications, that support 3GPP release 10. With its LGA form factor, it offers pin compatibility with C16QS and C42GM modules, allowing for flexible migration. The C42QM module features integrated GNSS, providing precise and reliable positioning through GPS, GLONASS, BEIDOU, and Galileo. It supports VoLTE and SMS over IMS/SG/CS, along with a wide range of Internet protocols and industry-standard interfaces.

C42QM LTE Cat M1/ NB-IoT Module comes in two variants: C42QM-EA for the Europe and Asia market, and C42QM-NA for the North America market. Additionally, with an optional integrated eSIM powered by Cavli Hubble platform, it offers global connectivity, reducing time to market. The C42QM module is well-suited for IoT applications such as asset tracking, e-mobility, data loggers, fleet management, and environmental monitoring.

Features:

1. 3GPP Release 10: Supports LTE Cat M1 and NB-IoT for IoT/M2M applications.
2. LGA Form Factor: Pin-compatible with C16QS and C42GM for flexible migration.
3. Integrated GNSS: Accurate positioning via GPS, GLONASS, BEIDOU, and Galileo.
4. VoLTE & SMS: Supports voice and messaging over IMS/SG/CS.
5. Variants for Regions: C42QM-EA (Europe/Asia) and C42QM-NA (North America).
6. Cellular Connectivity (Download & Uplink Speeds) : ,LTE Cat M1: 588 Kbps (DL), 1199 Kbps (UL) , NB2: 127 Kbps (DL), 158.5 Kbps (UL)2G/EGPRS: 236.8 Kbps (DL), 236.8 Kbps (UL)
7. Supported Location Services : GPS, GLONASS, BeiDou, Galileo

Package Includes:

1 x  Cavli Wireless C42QM LTE Cat M1/ NB-IoT Module
