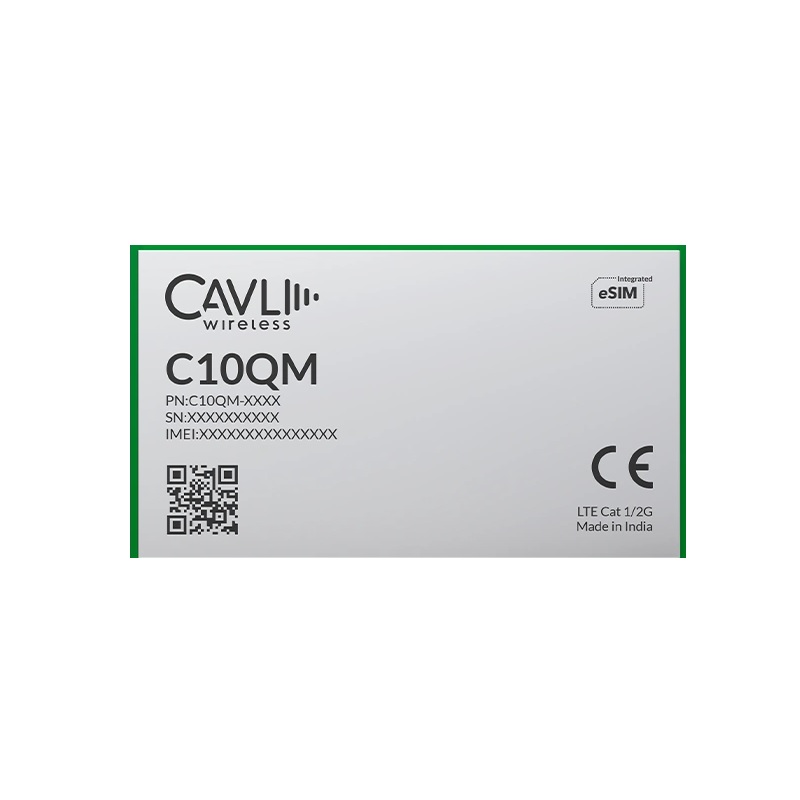

The Cavli Wireless C10QM LTE Cat 1 IoT Module has been developed within the Cavli portfolio as part of a series of LTE Cat 1 modules that adhere to 3GPP release 10. With its LGA form factor, it offers pin compatibility with the C10GS LTE Cat 1/Cat 4 and C20QM LTE Cat 4 modules, allowing for flexible migration and interoperability. The C10QM module includes in-built GNSS featuring Qualcomm® IZat™ location technology Gen8C Lite, ensuring accurate and dependable positioning via GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS. Additionally, it offers support for VoLTE, and SMS over IMS/SG/CS, as well as compatibility with various Internet protocols and standard industry interfaces that guarantee unbridled accessibility.

The module comes in two variants: C10QM-EA for the Europe and Asia market, and C10QM-NA for the North America market. Additionally, with the help of the optional integrated eSIM powered by Cavli Hubble platform, the global connectivity on offer reduces time required to market. The C10QM module was designed with consideration for IoT and M2M applications, hence the module is well suited for tasks such as asset tracking, e-mobility, data loggers, fleet management, and environmental monitoring.

Features:

1. LTE Cat 1 Compliance: Based on 3GPP release 10 specifications.
2. Pin Compatibility: Interoperable with C10GS LTE Cat 1/Cat 4 and C20QM LTE Cat 4 modules.
3. GNSS Support: Qualcomm® IZat™ Gen8C Lite with GPS, GLONASS, BeiDou, Galileo, and QZSS.
4. VoLTE and SMS: Supports VoLTE, SMS over IMS/SG/CS.
5. Internet Protocols: Compatible with various IoT and M2M industry standards.
6. Cellular Bands Supported: EMEA/APAC: LTE – B1/B3/B5/B8/B20/B40, GSM – 900/1800 MHz, NA: LTE – B2/B4/B5/B12/B13/B25/B26/B66, GSM – 900/1800 MHz
7. Supported Location Services: GPS, GLONASS, BeiDou, Galileo, QZSS Capable
8. OS: Yocto Linux (Kernel 4.14)
9. Memory: 256 MB RAM, 256/512 MB Flash
10. Cellular Connectivity Speed: LTE Cat 1: 10 Mbps (DL), 5 Mbps (UL) , 2G: 236.8 Kbps (DL/UL)

Package Includes:

1 x Cavli Wireless C10QM LTE Cat 1 IoT Module
