This ultra-small, three-axis magnetic field sensor offers high precision in a compact Wafer Level Chip Scale Package (WLCSP) with a 1.56×1.56mm footprint and 0.6mm height. It supports both SPI and I²C digital interfaces, operating at low voltages between 1.2V and 3.6V. With a magnetic field range of ±1300µT (x, y-axis) and ±2500µT (z-axis), it offers ultra-low power consumption (170µA at 10Hz) and advanced power management. RoHS compliant and suitable for various applications.

Features:

1. Ultra-small footprint for space-constrained designs.
2. Supports SPI (4-wire/3-wire) and I²C interfaces.
3. Low voltage operation with wide supply range (1.2V to 3.6V).
4. Magnetic field range of ±1300µT (x, y) and ±2500µT (z).
5. On-chip interrupt controller for efficient signal processing.
6. Ultra-low power consumption with fast wake-up times.

Package Includes:

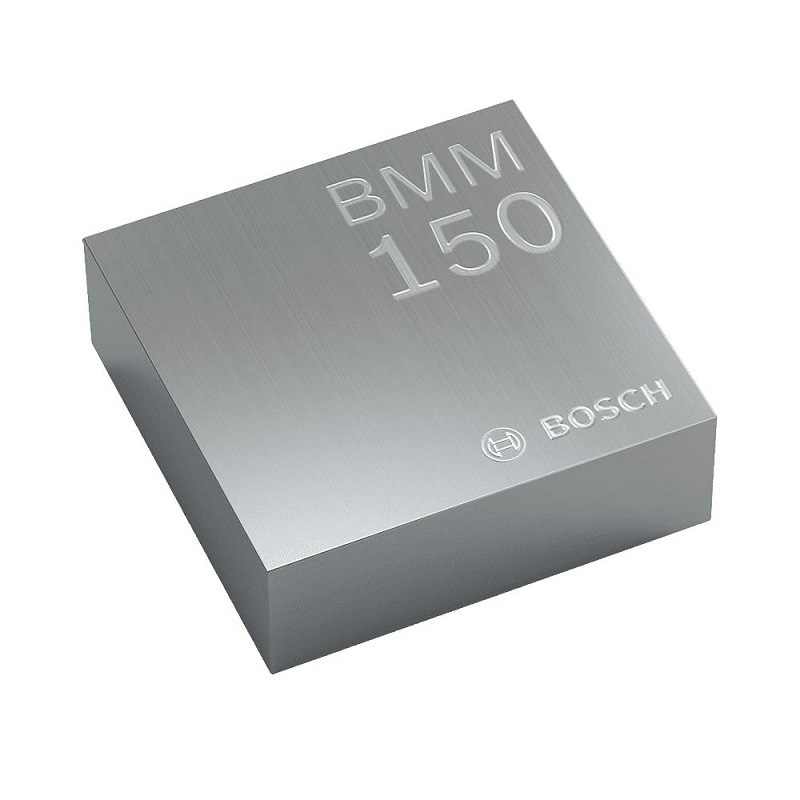

1 x BOSCH BMM150 3‑axis digital geomagnetic sensor (magnetometer)
