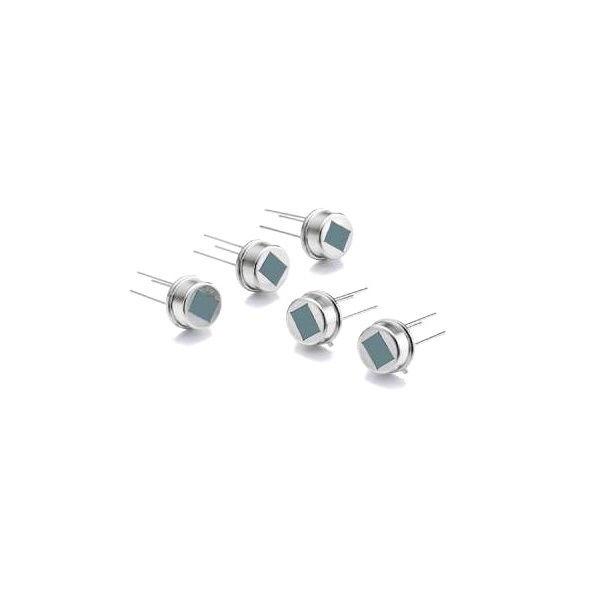

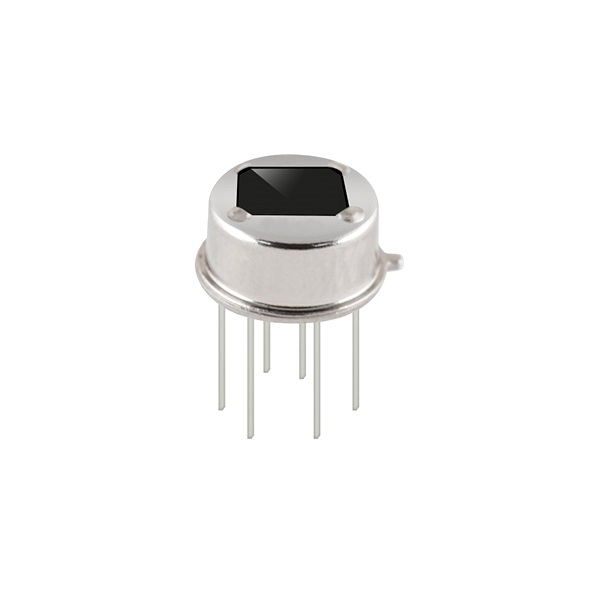

BM612 Digital PIR sensor is the newest smart digital motion detector. This Smart digital detector offers a complete motion detector solution, with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch, a timer is included. The series has versions that can include ambient light level and sensitivity adjustments.

Applications:

1. Toys
2. Digital photo frame
3. TV, Refrigerator, Air-conditioner
4. USB Alarms
5. PIR motion detection
6. Intruder detection
7. Occupancy detection
8. Motion sensor lights
9. Computer monitor
10. Security system
11. Automatic control
12. Corridor
13. Stairs Lights etc.


Features:

1. Digital signal processing（DSP）
2. Power adjustable, save more energy
3. Two-way differential high impedance sensor input
4. Built-in filter, screen the interference by other frequency
5. Excellent power supply rejection, Insensitive to RF interference
6. Schmidt REL output
7. Low voltage, low power consumption, instantaneous settling after
   power up

Note: Find Datasheet for all technical and dimensional Details in attachments

Package Includes:

1 x BM612 Digital PIR sensor
