Brushed / Brushless DC motor Driver

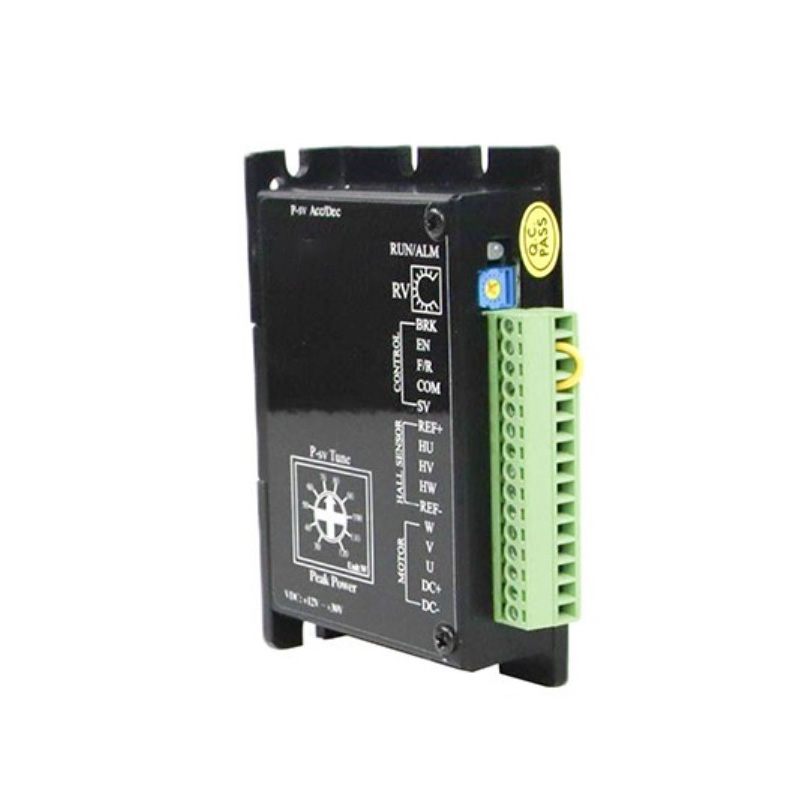

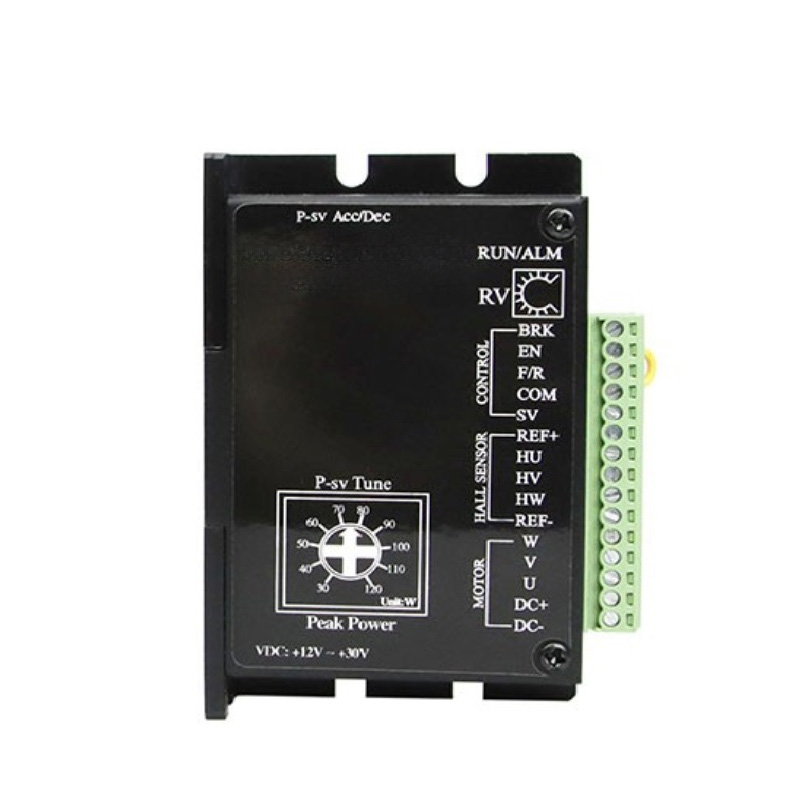

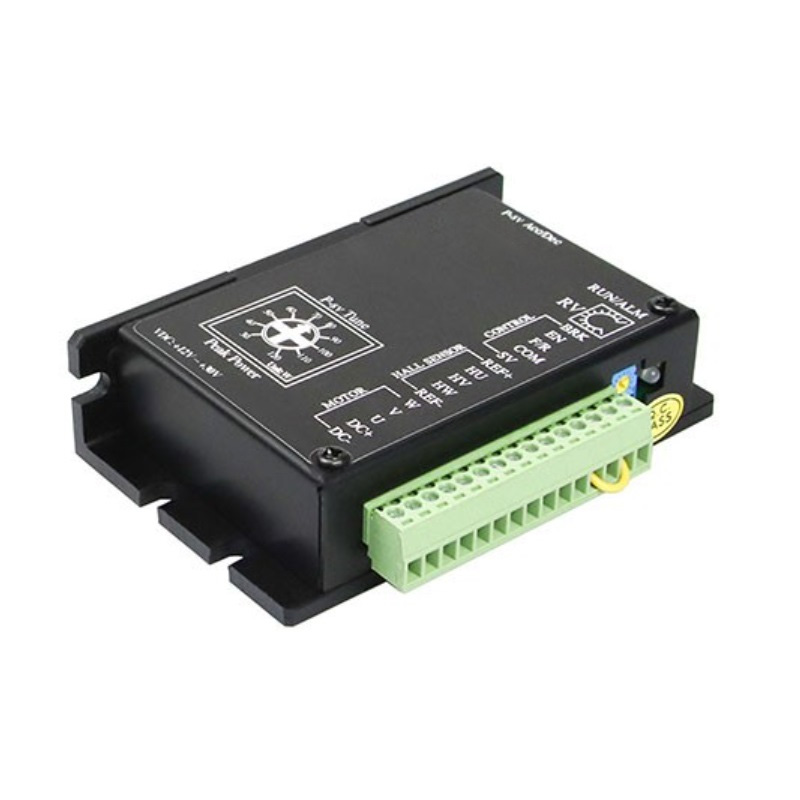

Pro-Range BLD120 Brushless DC Motor Driver
- Model: BLD120
- Input voltage:+12 to +30V DC
- Rated (RPM): 0 to 20000
SKU: Not Found
Brand: Pro-Range
Out of stock
₹3208.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
PRBLD120 is designed by Robu and is mainly for low-power low voltage BLDC motors.
The Pro-Range BLD120 Brushless DC Motor Driver is a compact and efficient electronic device designed to control brushless DC motors. It offers precise speed and direction control, supporting a wide range of applications. With its compact size and high reliability, the BLD120 is suitable for various industries, including robotics, automotive, and aerospace. Its advanced features ensure smooth motor operation and protection against overcurrent and overheating, making it an ideal choice for demanding motor control tasks.
Note: For more information Please check the attachment section
Features:
- Acc/Dec time setting
- Max output current P-sv setting
- Restart
- Alarm signal
- Built-in RV speed setting
- External potentiometer speed setting
- External analog signal speed setting
- PWM speed setting
Package Includes:
1 x Pro-Range BLD120 Brushless DC Motor Driver
Technical Specifications
| Current Rating (A) | 8 |
|---|---|
| External Potentiometer (Ω) | 10KΩ |
| Hall drive current (mA) | 20 |
| Hall Signal Voltage (V) | 5 |
| Height (mm) | 24 |
| Length (mm) | 96 |
| Model No | BLD120 |
| Model Series | BLD Series |
| Rated Speed (RPM) | 0-20000 |
| Shipping Dimensions | 10.5 × 8 × 3 cm |
| Shipping Weight | 0.166 kg |
| Storage Temperature (°C) | 0 to +50 |
| Voltage Rating (V) | 12 to 30 |
| Weight (g) | 144 |
| Width (mm) | 70 |
