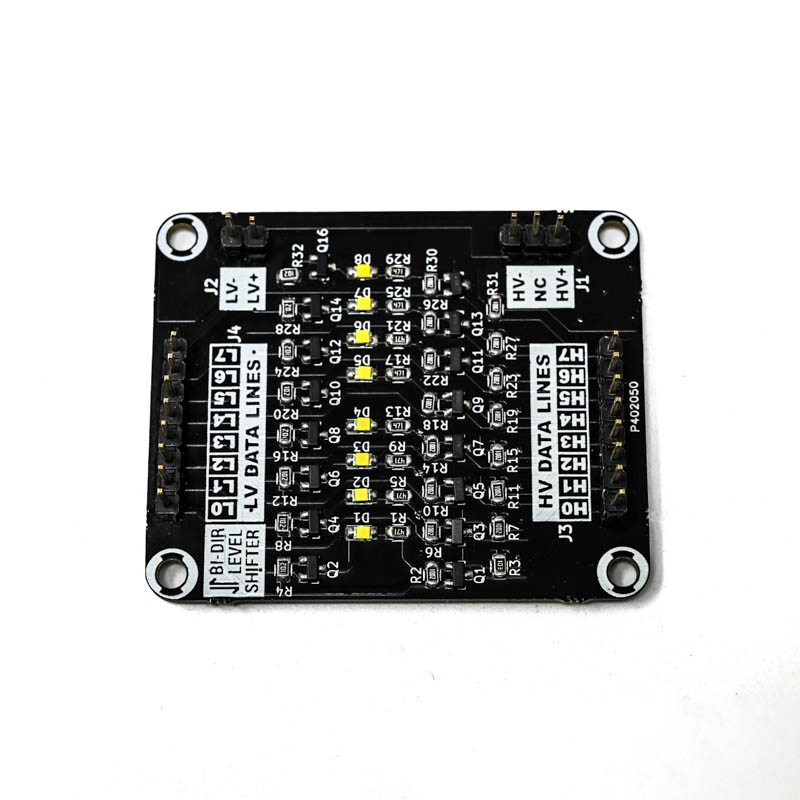

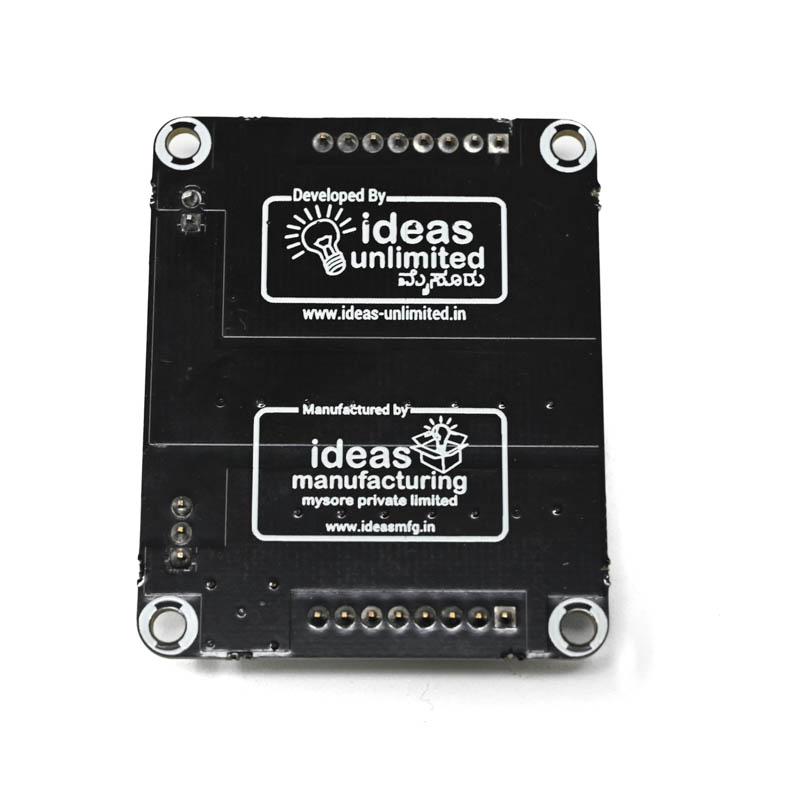

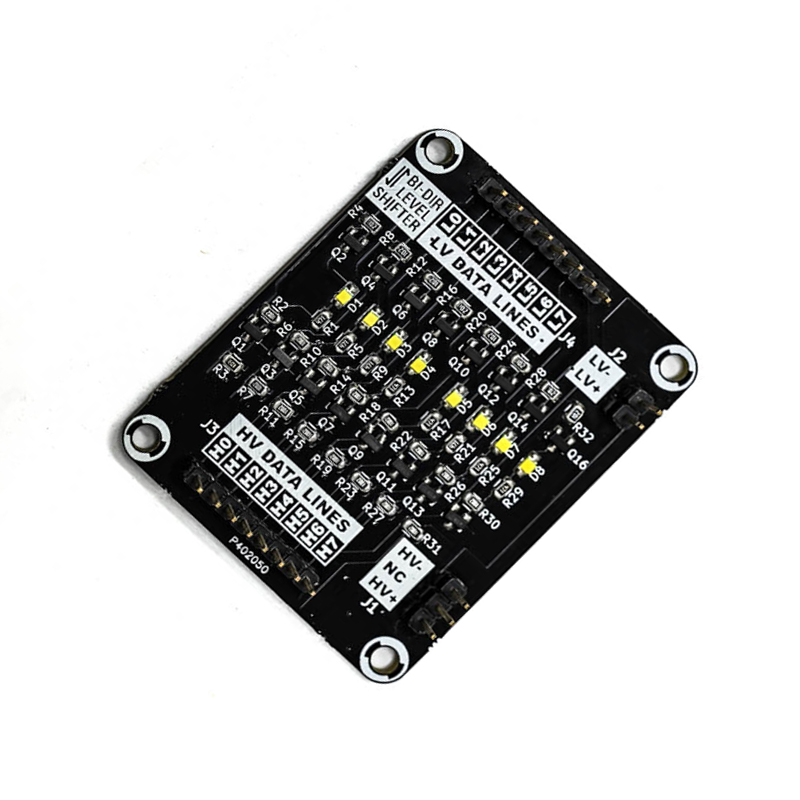

8-Channel Bi-directional Logic Level Shifter 8
- RDS(on) = 3.5 @ VGS = 10 V
- RDS(on) = 6.0 @ VGS = 4.5 V
- High Density Cell Design for Extremely Low RDS(on)
- Rugged and Reliable
- This Device is Pb−Free and Halogen Free
SKU: Not Found
Brand: ideas manufacturing
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 8-channel Bi-Directional Logic Level Shifter is a compact solution for converting voltage signals between 1.2V and 6V systems. Featuring BSS138 N-Channel transistors for fast and reliable performance, it ensures efficient level shifting for prototyping, I2C communication, and low-current applications. Each of its 8 channels operates independently, enabling seamless conversion for 8-bit buses or multiple logic signals. Built-in LED indicators provide real-time channel status, ensuring ease of use. Designed for durability and precision, this shifter is perfect for hobbyists and engineers seeking robust performance in prototyping, small servo control, and power MOSFET gate driving applications.
Features:
- Converts voltage levels between 1.2V and 6V systems.
- Features 8 independent channels with built-in LED indicators.
- Equipped with BSS138 N-Channel transistors for fast switching.
- Perfect for I2C communication, prototyping, and low-current applications.
- Rugged, reliable, and designed for efficient performance.
- Suitable for servo control, MOSFET drivers, and switching applications.
Package Includes:
1 x 8-Channel Bi-directional Logic Level Shifter 8
Technical Specifications
| Application | I2c bus communication, Prototyping & testing |
|---|---|
| Compatibility | I2C, Servo Motors, MOSFET Drivers |
| Indicator | LED |
| Number of Channels | 8 |
| Shipping Dimensions | 11 × 9 × 4 cm |
| Shipping Weight | 0.015 kg |
| Voltage Range (V) | 1.2-6 |
