8-bit Microcontrollers IC

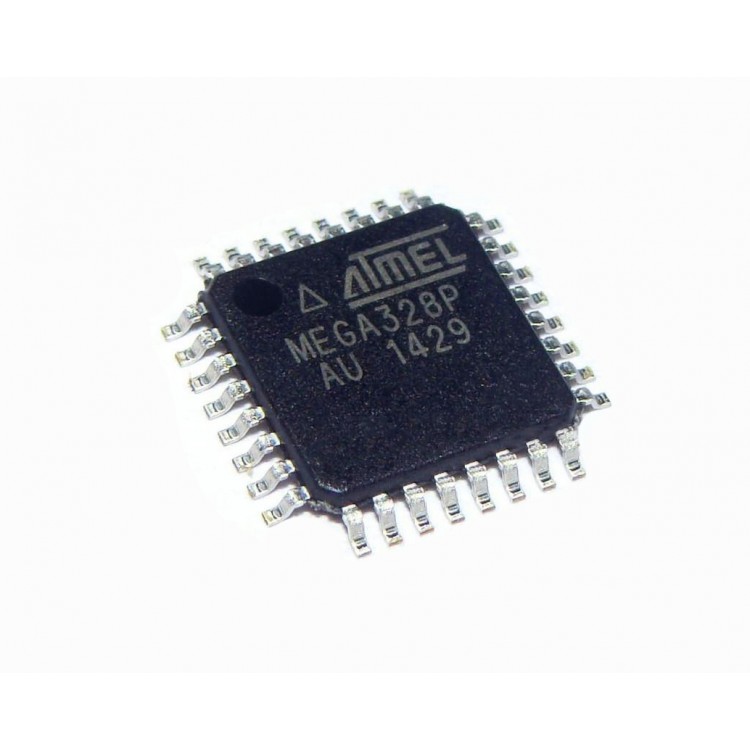

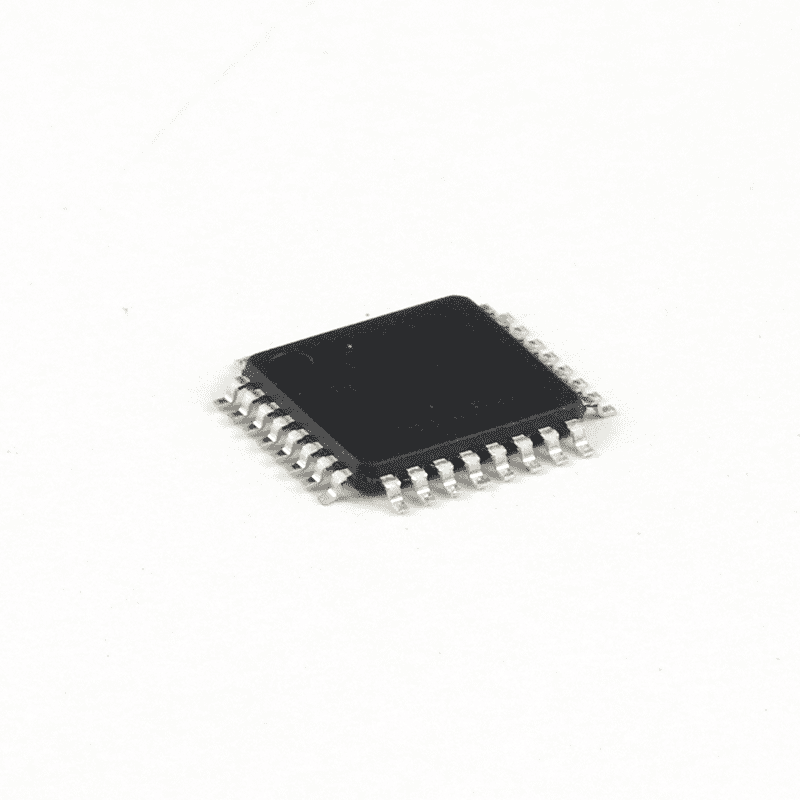

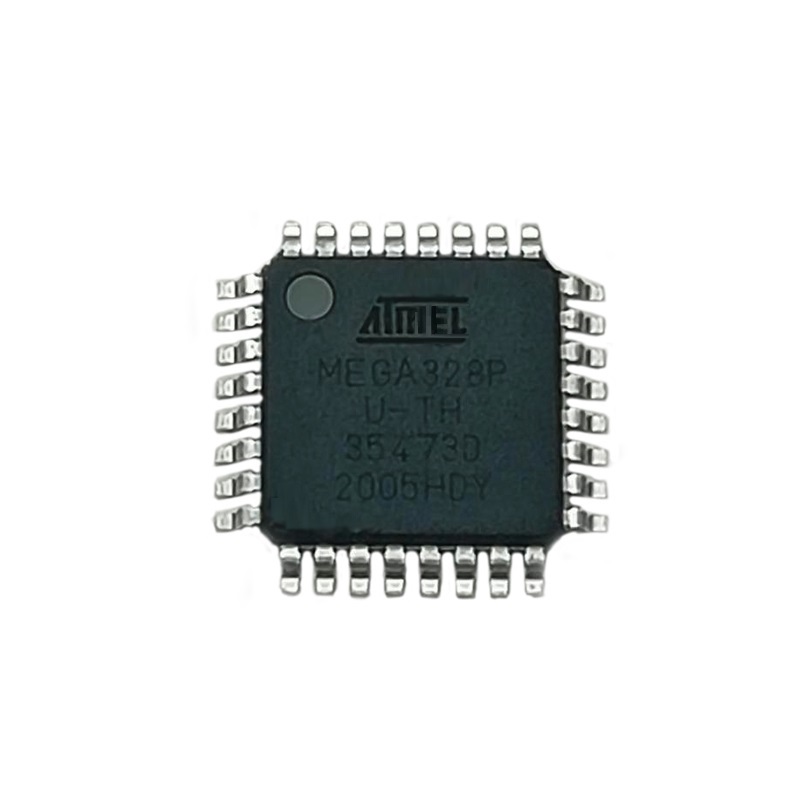

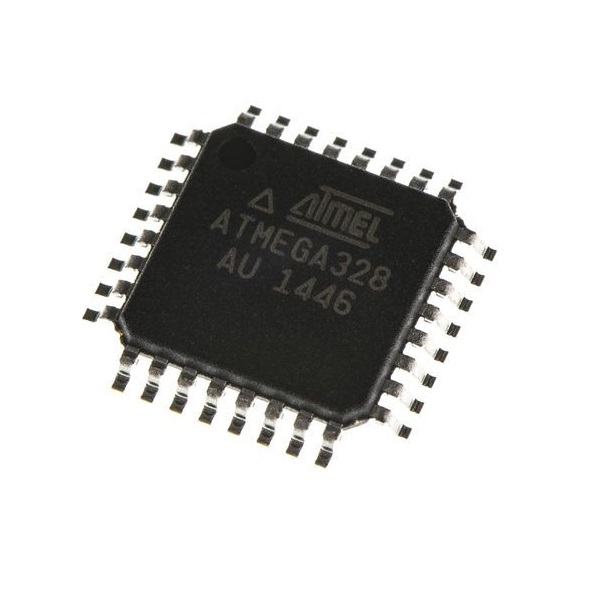

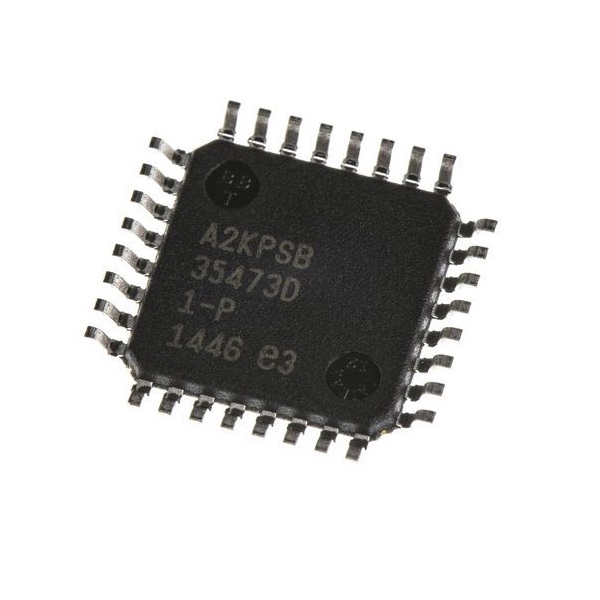

ATmega328P U-TH Microcontroller
- High Performance, Low Power Atmel®AVR® 8-Bit Microcontroller Family
- Advanced RISC Architecture
- High Endurance Non-volatile Memory Segments
- Atmel® QTouch® library support
- Peripheral Features
- Special Microcontroller Features
SKU: Not Found
Brand: Generic
Out of stock
₹240.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The high-performance Atmel picoPower 8-bit AVR RISC-based microcontroller combines 32KB ISP flash memory with read-while-write capabilities, 1024B EEPROM, 2KB SRAM, 23 general-purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, a 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.
Note:
1. Images are for reference only. The actual product may differ from the images in terms of markings.
2. Please note that the available IC model for this type is328P U-TH
Features:
- High Performance, Low Power Atmel®AVR® 8-Bit Microcontroller Family
- Advanced RISC Architecture
- High Endurance Non-volatile Memory Segments
- Atmel® QTouch® library support
- Peripheral Features
- Special Microcontroller Features
Package Includes:
1 x ATmega328P U-TH Microcontroller
Technical Specifications
| Case/Package | TQFP 32 |
|---|---|
| Data Bus Width | 8bit |
| Data RAM size and Type | 2kB SRAM |
| Data ROM Size and Type | 1024 B EEPROM |
| Dimensions (L x W x H) mm | 7 x 7 x 1 |
| Frequency Rating | 20MHz |
| Interface Type | I2C, SPI, USART |
| Manufacturer | Generic |
| Max. Clock Frequency (MHz) | 20 |
| Max. Supply Voltage (V) | 5.5 |
| Min Supply Voltage | 2.7 |
| Mounting Type | SMD/SMT |
| No. of I/Os | 23 |
| No. of Timers/Counters | 3 Timer |
| Operating Temperature (°C) | -24 to 84 |
| Processor Series | ATmega328P |
| Product Type | 8-bit Microcontrollers – MCU |
| Program Memory (KB) | 32 |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
