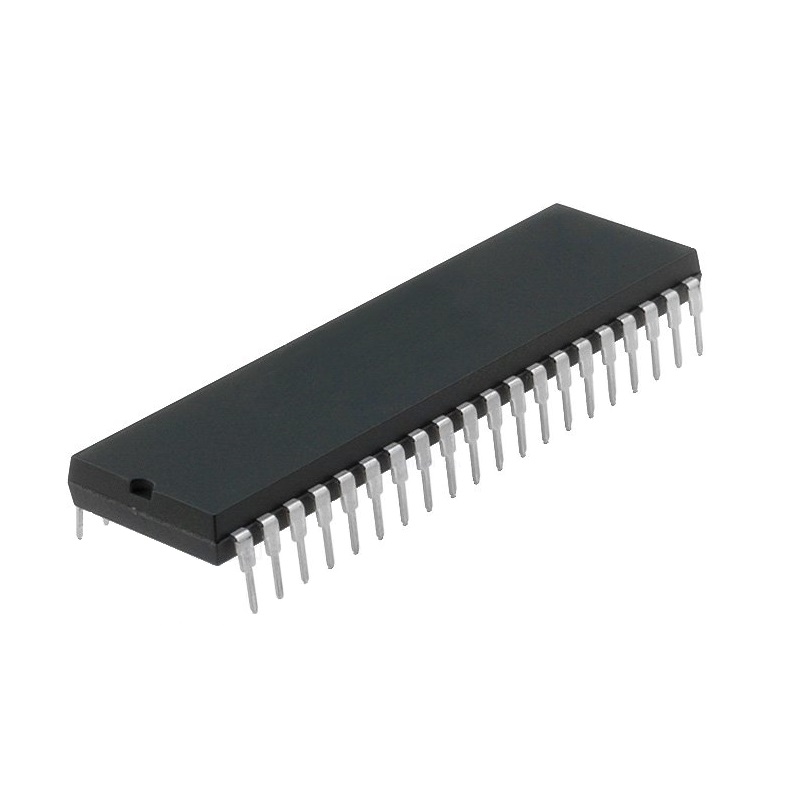

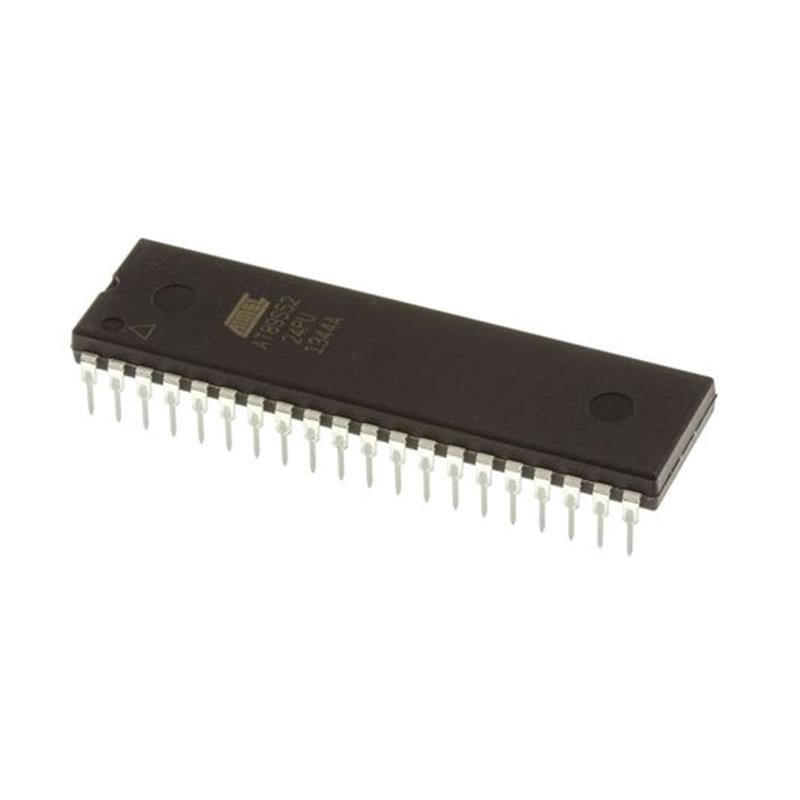

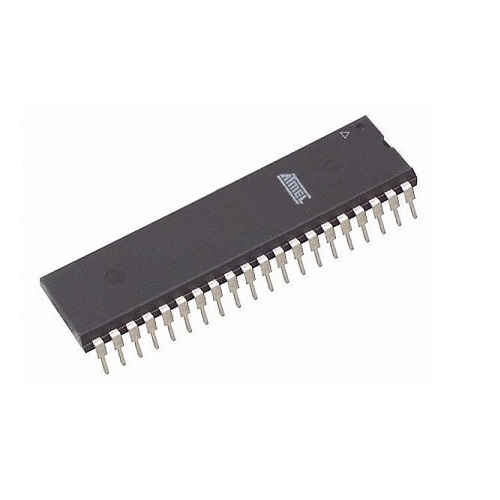

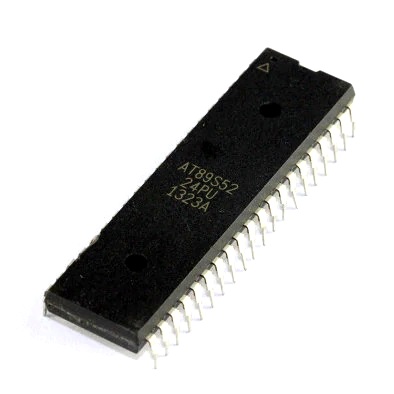

The ATMEL AT89S52-24PU DIP-40 Microcontroller is a low-power, high-performance CMOS 8-bit microcomputer with 8K bytes of Flash programmable and erasable read only memory (PEROM). The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry standard 80S51 and 80S52 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a Conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU With Flash on a monolithic chip, the Atmel AT89S52 is a powerful microcomputer which provides a highly flexible and cost-effective solution to many embedded control applications.

Features:

1. 8K Bytes of In-System Reprogrammable Flash Memory
2. Endurance: 1,000 Write/Erase Cycles
3. Fully Static Operation: 0 Hz to 33 MHz
4. Three-level Program Memory Lock
5. 256 x 8-Bit Internal RAM
6. 32 Programmable I/O Lines
7. Three 16-bit Timer/Counters
8. Eight Interrupt Sources
9. Programmable Serial Channel
10. Low Power Idle and Power Down Modes

Package Includes:

1 x ATMEL AT89S52-24PU Microcontroller IC
