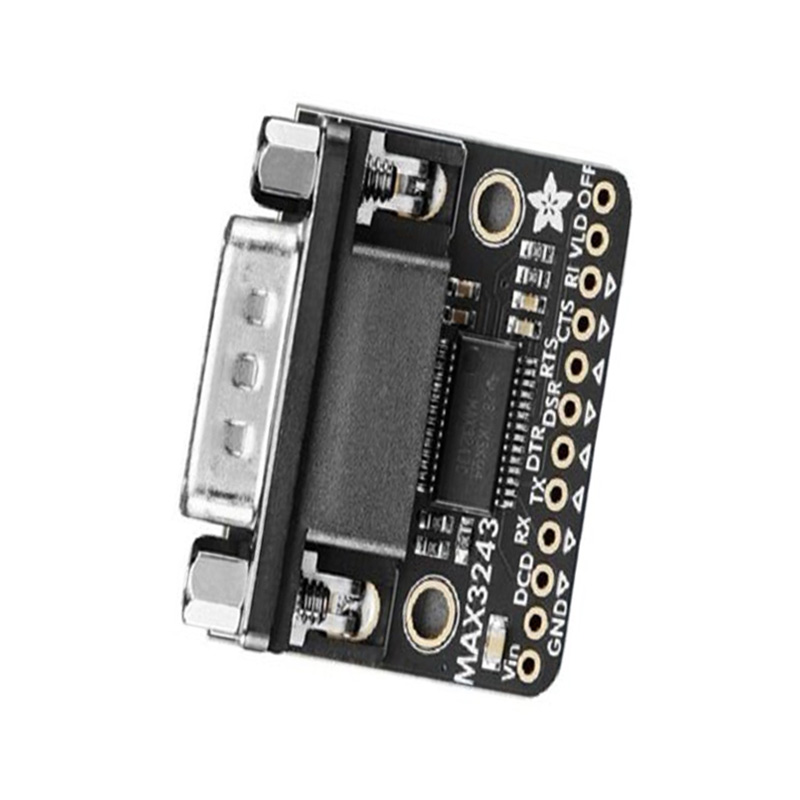

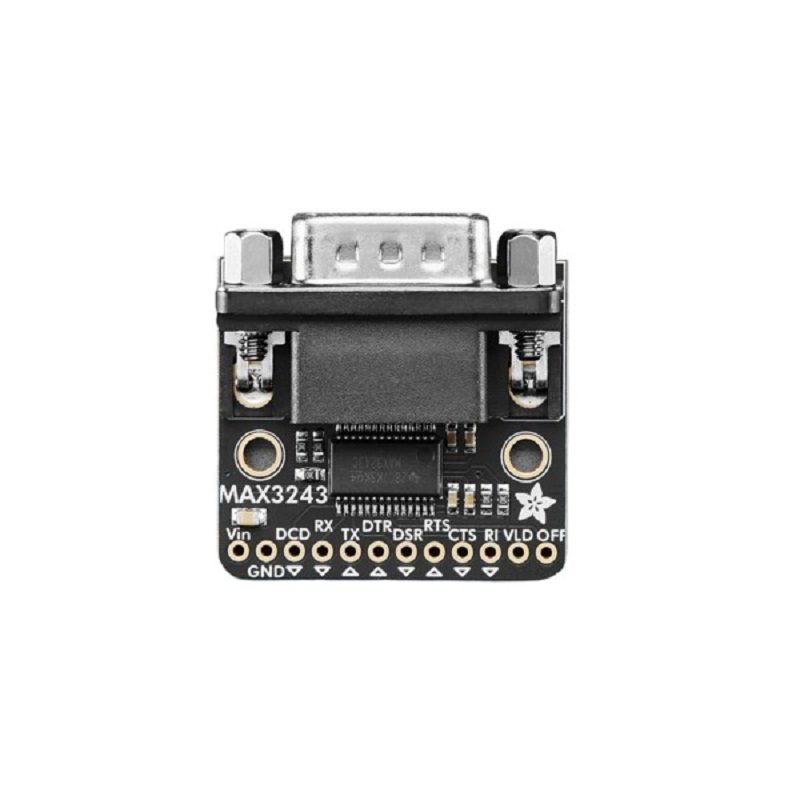

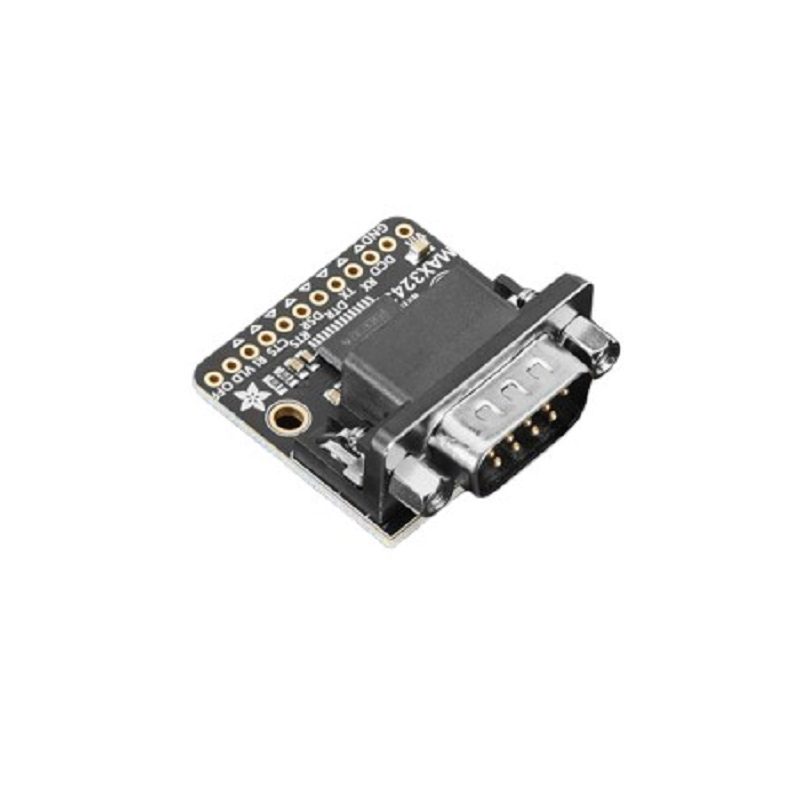

The Adafruit RS232 Full Breakout with 8 Channels of UART to RS-232 Level Shifters is a versatile tool for interfacing with telco, retro, or industrial equipment that uses RS-232 interfaces. It provides 5 input and 3 output channels for level shifting, using the MAX3243 chip, which handles high/negative voltage generation.

RS232 Full Breakout supports data speeds up to 250Kbps and includes a DE9-M male connector for direct connection. It operates on 3.3V power and logic, making it compatible with many microcontrollers. It also supports all 8 data pins, including flow control signals like RTS, CTS, and DTR. Additionally, it features ‘Valid’ and ‘Off’ lines for connection status and power reduction. The board comes fully assembled and ready to use with a UART side for low-voltage logic and a DE-9M side for high-voltage signals.

Features:

1. Operates With 3-V to 5-V VCC Supply
2. Single-Chip and Single-Supply Interface for IBM™ PC/AT™ Serial Port
3. RS-232 Bus-Pin ESD Protection of ±15 kV Using Human-Body Model (HBM)
4. Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU V.28 Standards
5. Three Drivers and Five Receivers
6. Operates Up To 250 kbit/s
7. Low Active Current: 300 μA Typical
8. Low Standby Current: 1 μA Typical
9. Accepts 5-V Logic Input With 3.3-V Supply
10. Serial-Mouse Driveability

Package Includes:

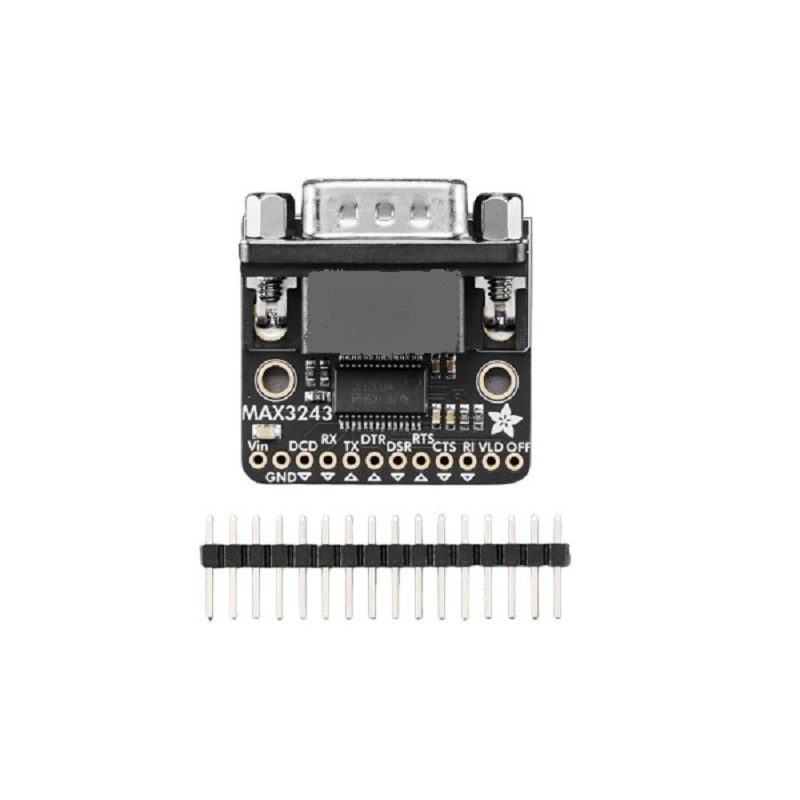

1 x Adafruit RS232 Full Breakout Board
