We stock a few barometric pressure sensors, great for altitude and weather measurements. This pressure sensor is special because it comes with a metal port! Unlike other pressure sensors, you can easily attach a tube to it, to measure air pressure inside a close space. In particular we think this would be a great sensor for use with making DIY assistive tech “Sip & Puff” interfaces, or measuring the pressure within a vacuum chamber or other pressurized container.

Unlike most ported pressure sensors, this one uses I2C, it’s really easy to use with any microcontroller. Inside is a silicone-gel covered pressure sensing gauge with a pre-calibrated and compensated 24 bit ADC. We have example code and libraries for Arduino or CircuitPython/Python. You can measure absolute pressure 0 to 25 PSI, which is a great range since ambient pressure here on Earth is about 14.5 PSI.

The port is made of stainless steel and is 3.7mm long and 2.5mm diameter. It doesn’t come with tubing so be sure to purchase some tubing to attach to the port.

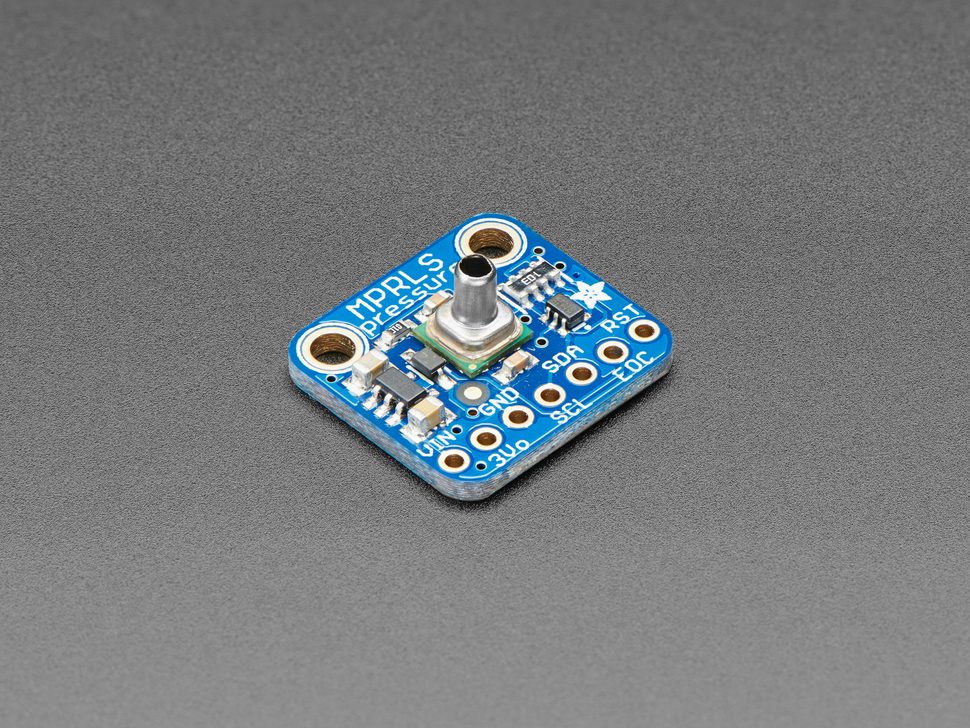

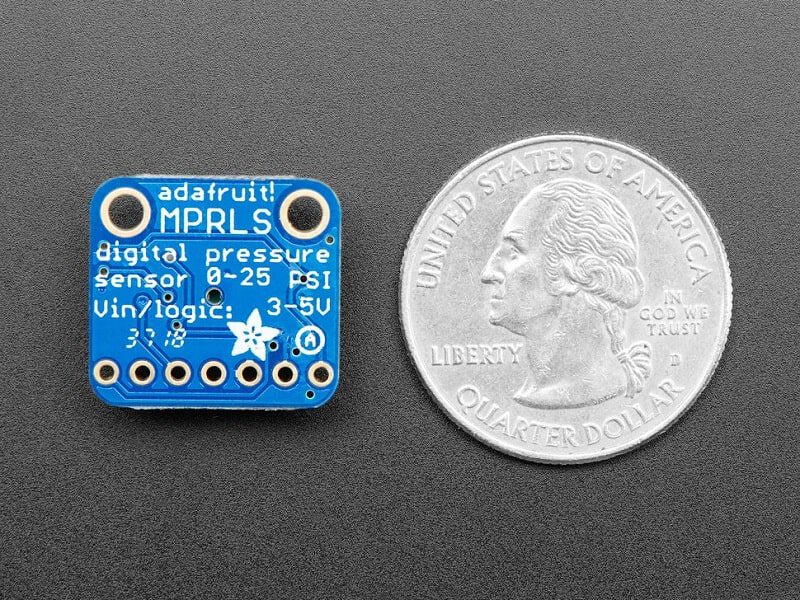

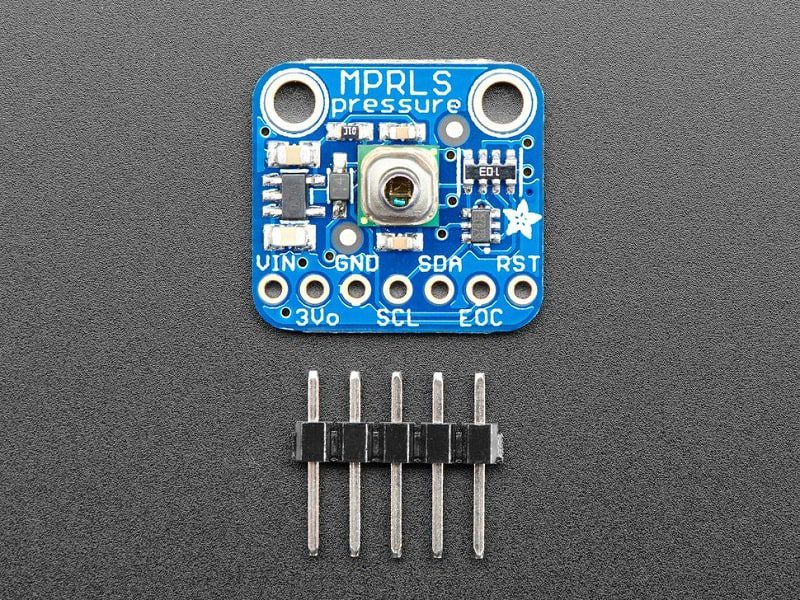

We’ve placed this nice sensor on a breakout board with 3.3V power regulation and level shifting so you can use it with any kind of microcontroller or microcomputer, from an Arduino compatible to Raspberry Pi

Features:

1. Very small size
2. You can use with Arduino
3. Power Pins: 3-5V
4. I2C Logic pins:
   SCL – I2C clock pin, connect to your microcontrollers I2C clock line.
   SDA – I2C data pin, connect to your microcontrollers I2C data line.
5. You can program with python

Packages Includes:

1 x Adafruit MPRLS Ported Pressure Sensor Breakout – 0 to 25 PSI RoHS Compliant
