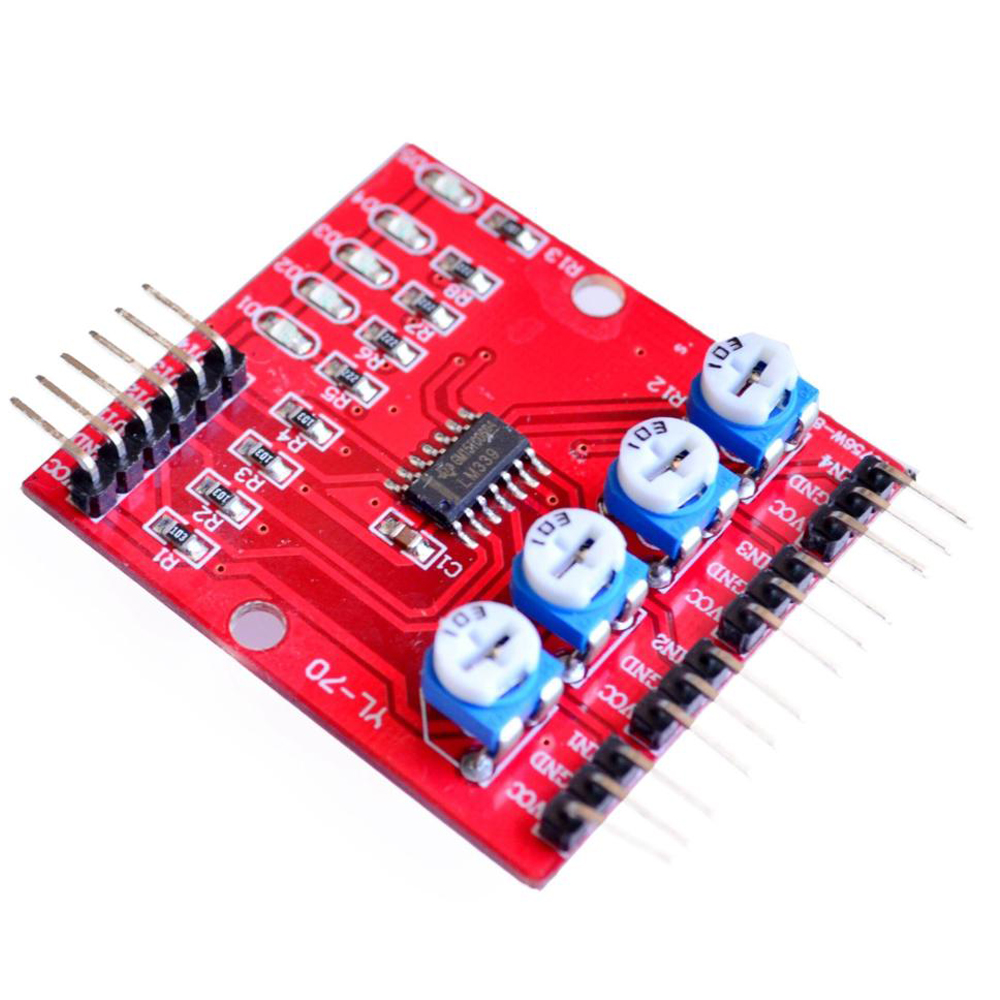

4-Channel IR Line Tracking Sensor Module
- Working voltage (V): 3.3 ~ 5
- Working current (A): Above 1A
- Operating Temperature (℃): -10 ~ +50
- Mounting hole: M3
- Detection range: 1mm ~ 60 cm adjustable.
SKU: Not Found
Brand: Generic
Out of stock
₹114.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Features:
- Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
- Size: in the control panel:42 x 38 x 12mm (length x width x height).
- Small forward: 25 x 12 x 12mm (length x width x height).
- Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, – for the negative power is ground)
- The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)

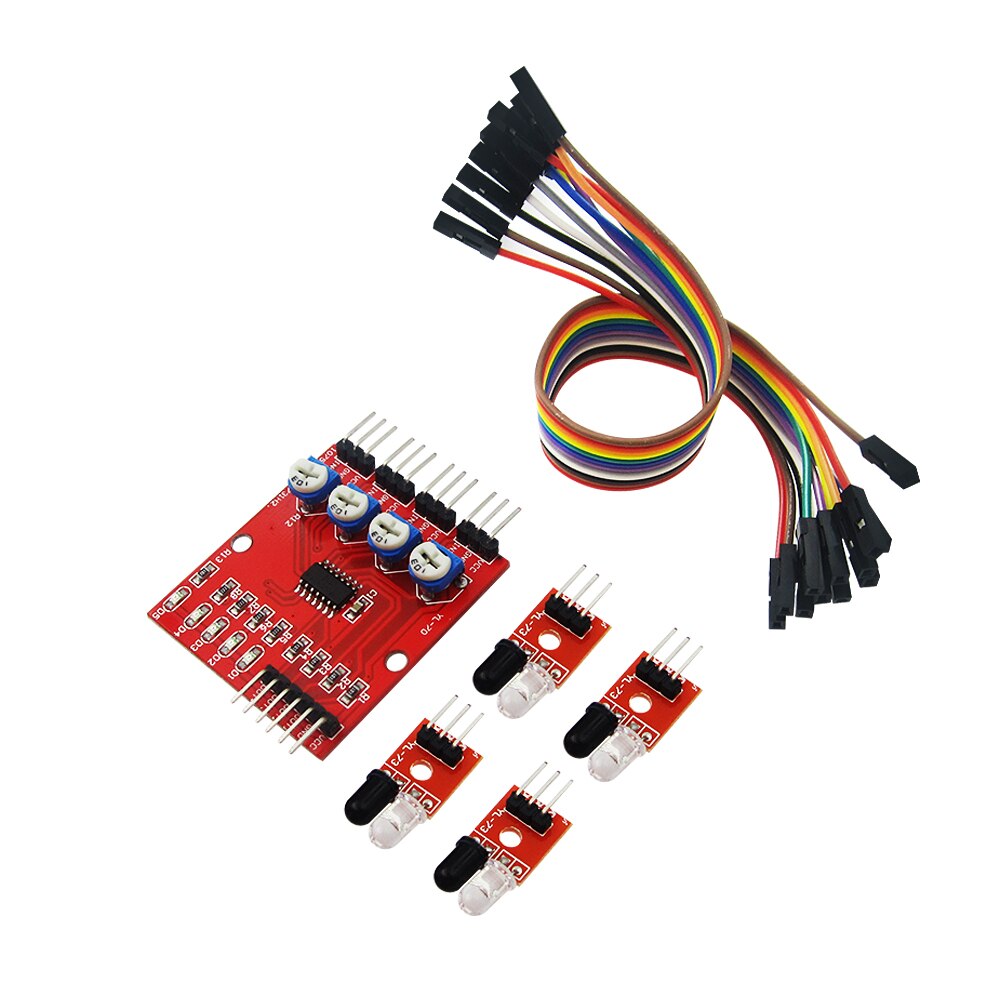

Package Includes:
1 x Tracking Module (Hollow Board + Small Plate Forward).
12 x female to female Dupont Lines (20 cm long).
Technical Specifications
| Detecting Range | 1mm ~ 60 cm adjustable. |
|---|---|
| Item Type | Module |
| Model | Tracing Module |
| Mounting holes | M3 |
| Operating Temperature (°C) | -10 ~ +50 |
| Shipping Dimensions | 10 × 8 × 2 cm |
| Shipping Weight | 0.025 kg |
| Working Current (A) | Above 1A |
