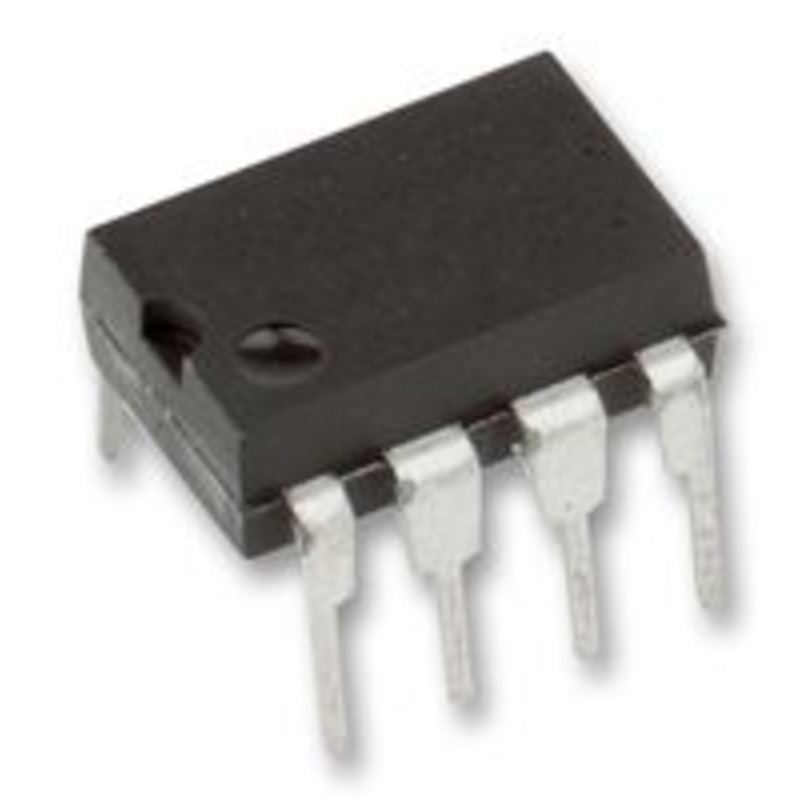

24LC04B-I/P-MICROCHIP-EEPROM, 4 Kbit, 2 BLK (256 x 8bit), Serial I2C (2-Wire), 400 kHz, DIP, 8 Pins.The 24LC04B-I/P is a 2kB I²C™ serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as two blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1μA and 1mA, respectively. The 24XX04 also has a page write capability for up to 16 bytes of data.

Note: Images for reference only.

Specifications:

Memory Density:: 4Kbit
Memory Configuration:: 2 BLK (256 x 8bit)
Interfaces:: Serial I2C (2-Wire)
Clock Frequency Max:: 400kHz
IC Case / Package:: DIP
No. of Pins:: 8Pins
Supply Voltage Min:: 2.5V
Supply Voltage Max:: 5.5V
IC Mounting:: Through Hole
Operating Temperature Min:: -40°C
Operating Temperature Max:: 85°C

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x 24LC04B-I/P-MICROCHIP-EEPROM, 4 Kbit, 2 BLK (256 x 8bit), Serial I2C (2-Wire), 400 kHz, DIP, 8 Pins
