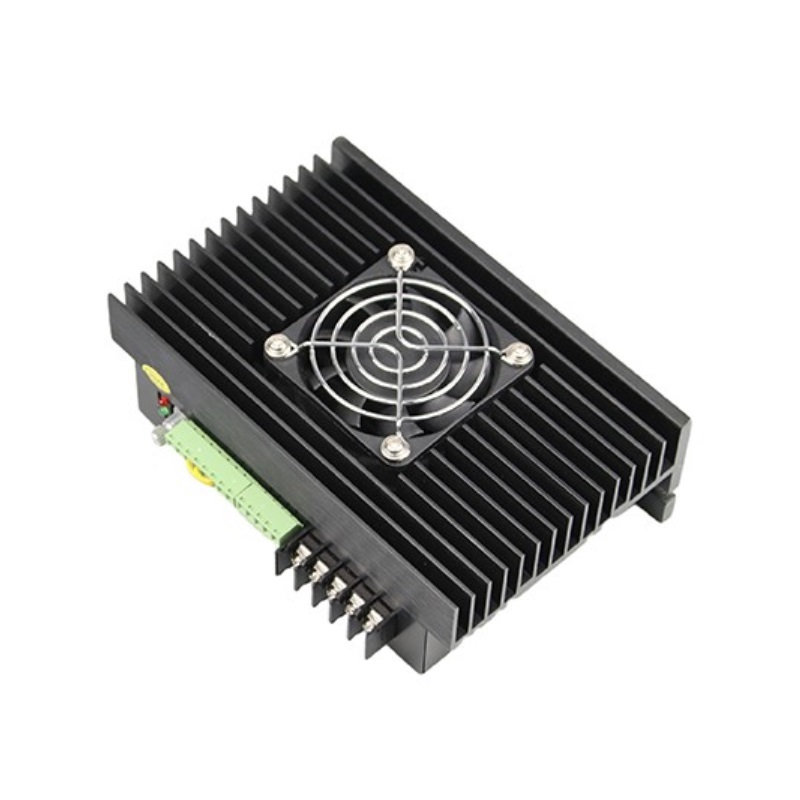

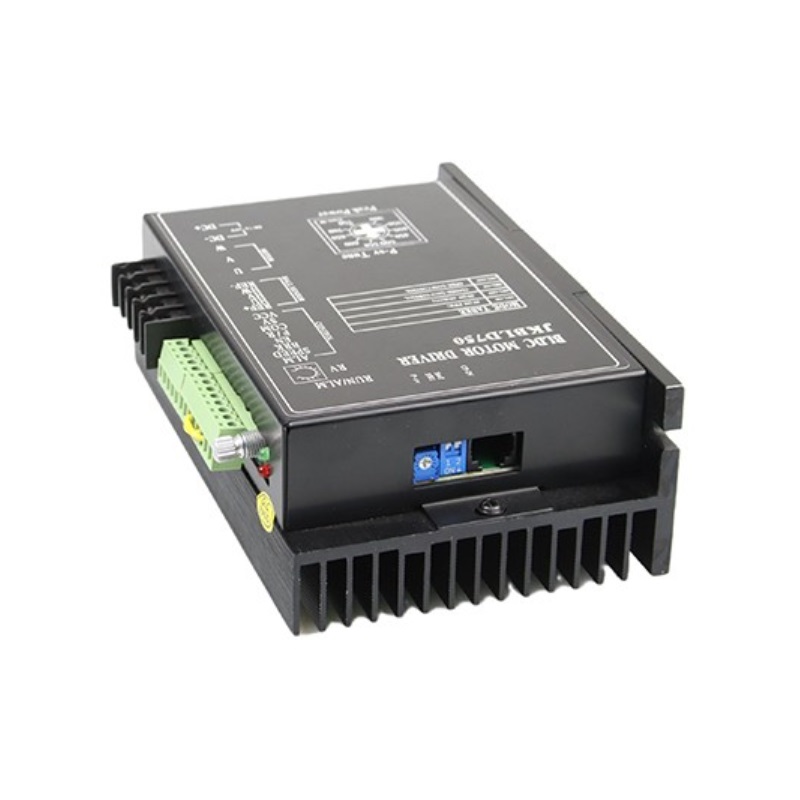

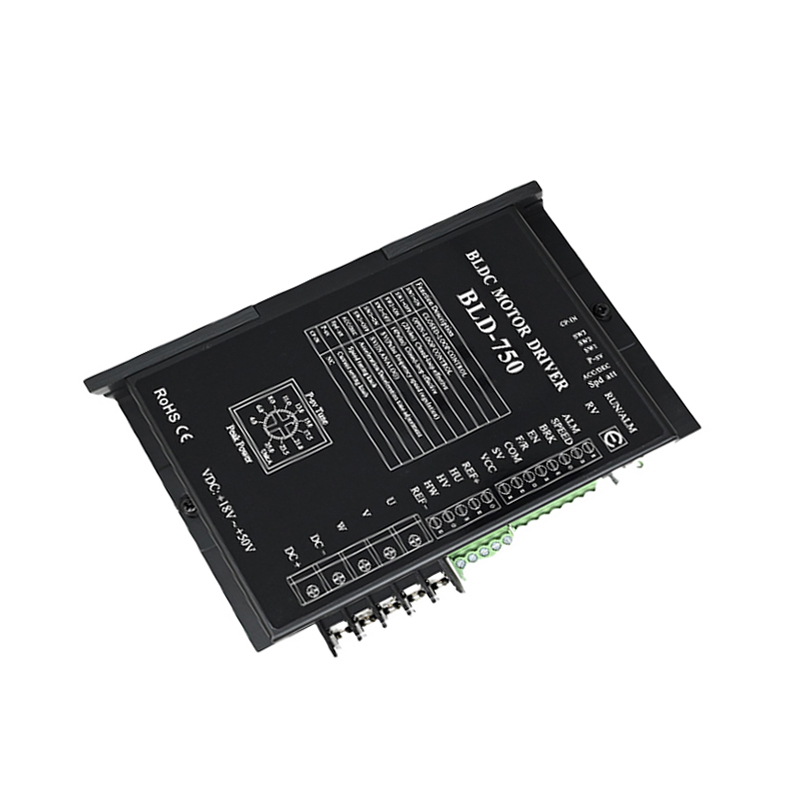

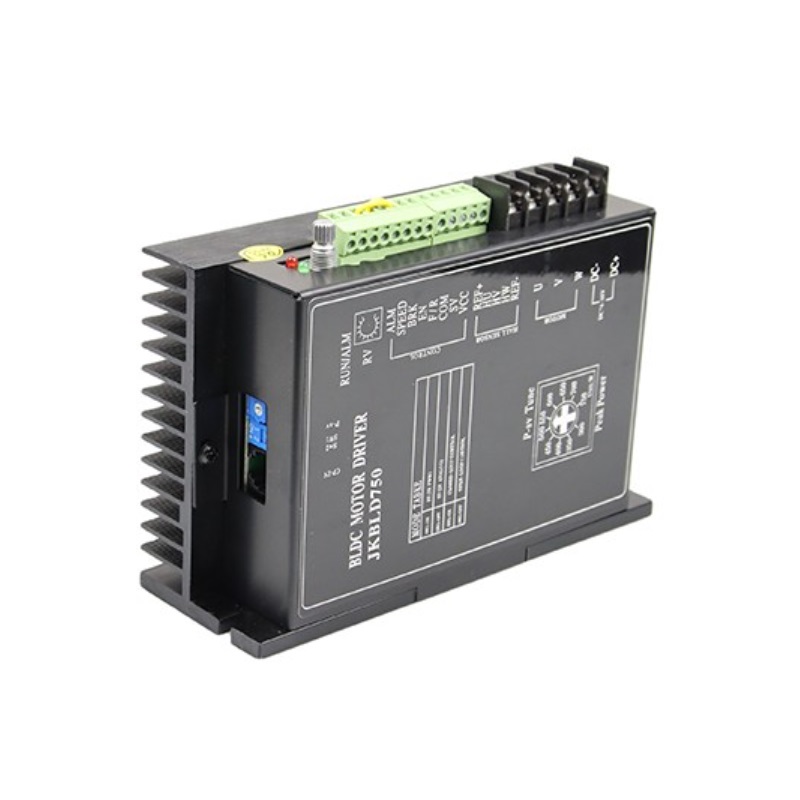

The Pro-Range BLD750 BLDC motor drive is a high-performance, cost-effective 3-phase BLDC motor drive, which can provide a power output of Max 750VA. The design is based on advanced DSP technology and features high torque, low noise, low vibration, PID speed loop, PID current loop, over-current protection, overload protection, and a combined use of manual speed adjustment and automatic speed adjustment.

Features:

It can be adopted in principal computers (PLC or MCU) PWM or simulation speed control.

1. Manual speed adjustment is accepted cause it has its own potentiometer. (External potentiometer
running control is available as well. )
2. PID speed loop, electric current loop to control
3. Start-up stop item(EN)
4.Positive & negative control (F/R)
5. Parking brakes quickly (BRK)
6. Overload protection setting: set protection data for different motors with different watts by
potentiometer linear.
7. Smooth high torque output and stable running speed
8. Low-speed with high torque output
9. Protection： over current, over voltage, under voltage, lock rotor, illegal hall sensor signal, and
temperature will cause the power abnormity
10. Speed signal output
11. Abnormal alarm signal output

Package Includes:

1 x Pro-Range BLD750 Brushless DC Motor Driver
