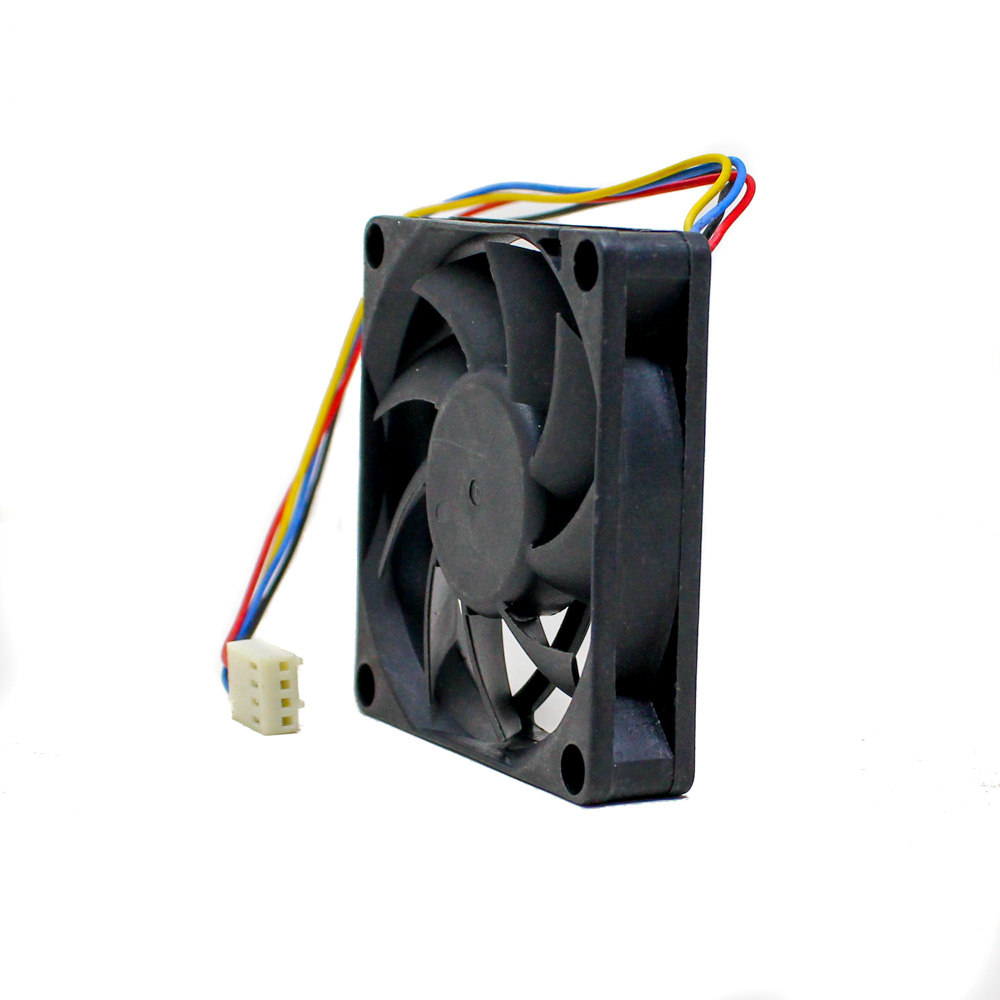

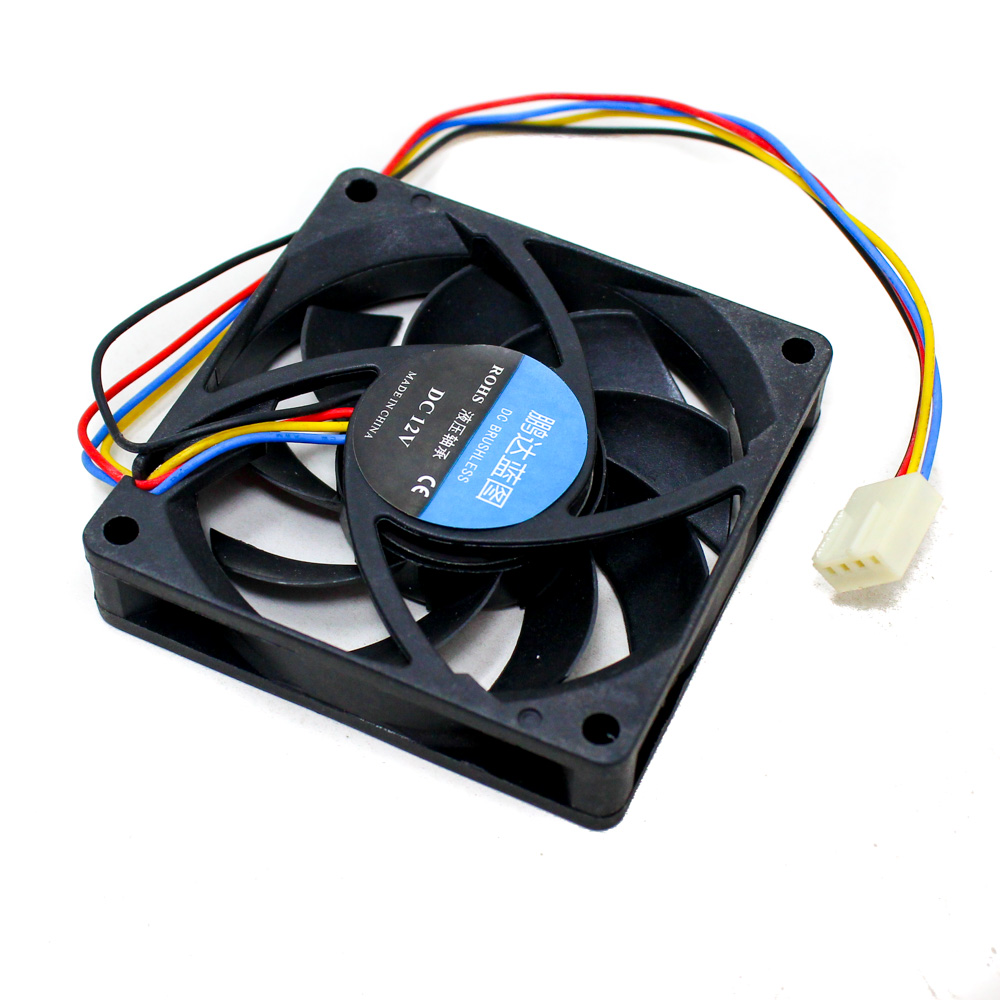

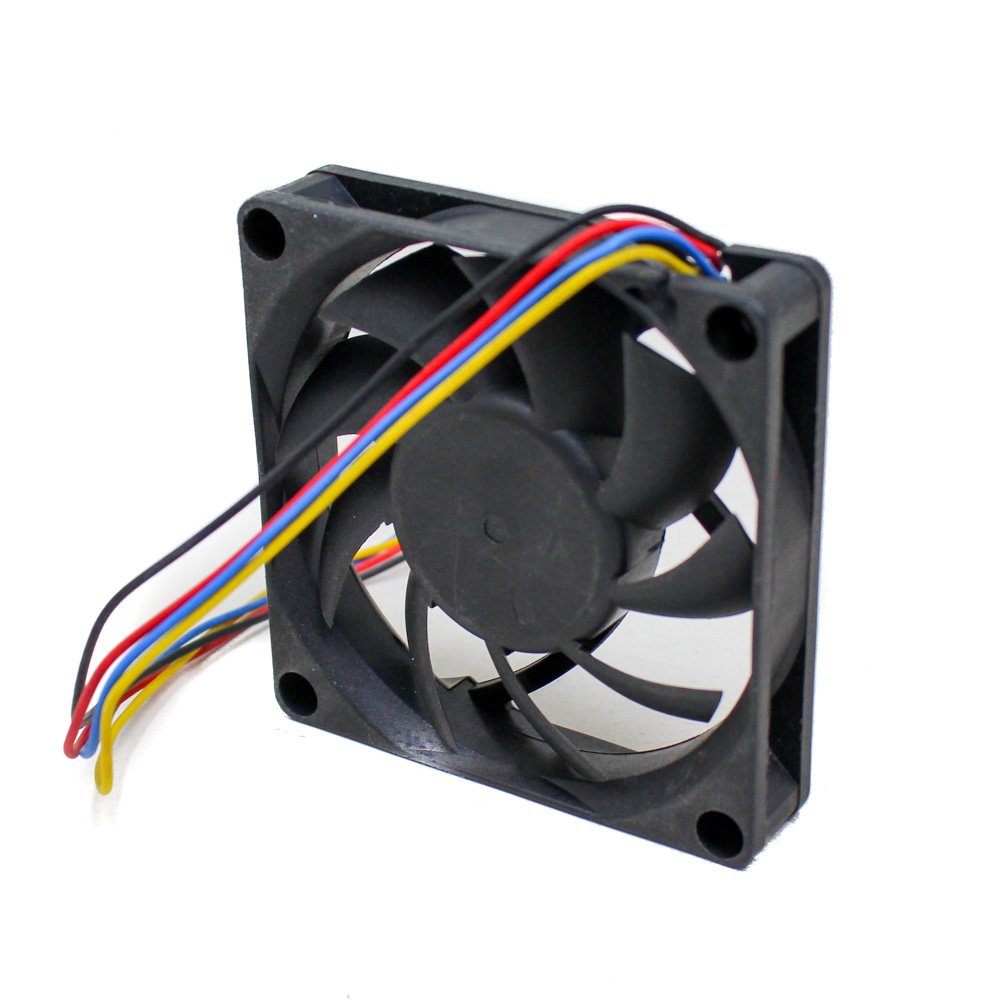

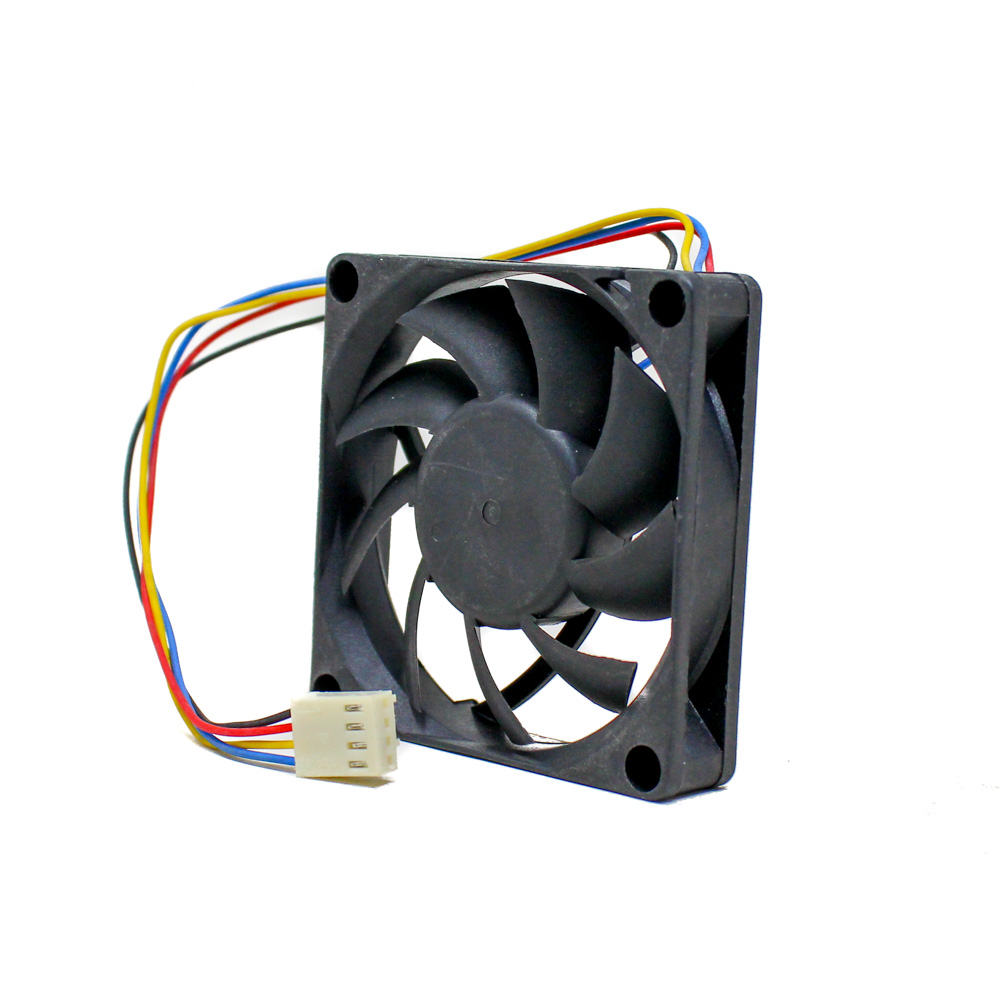

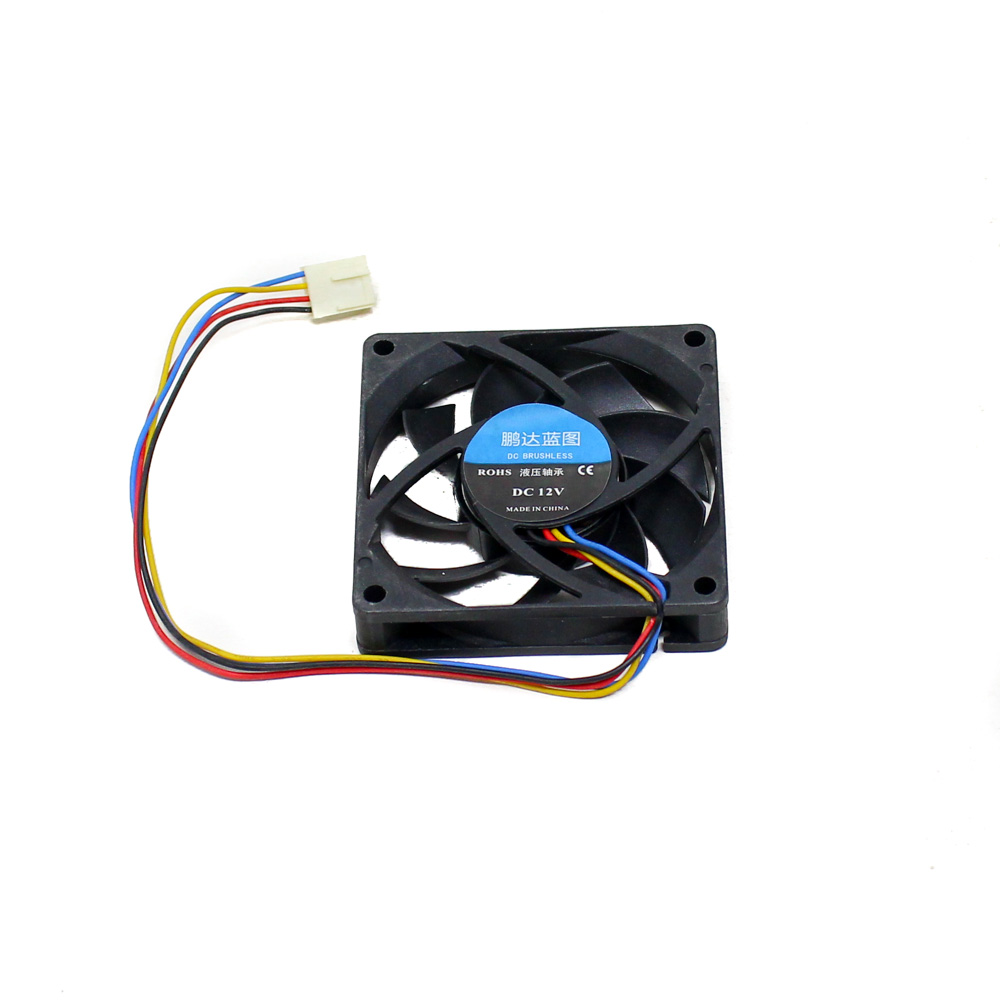

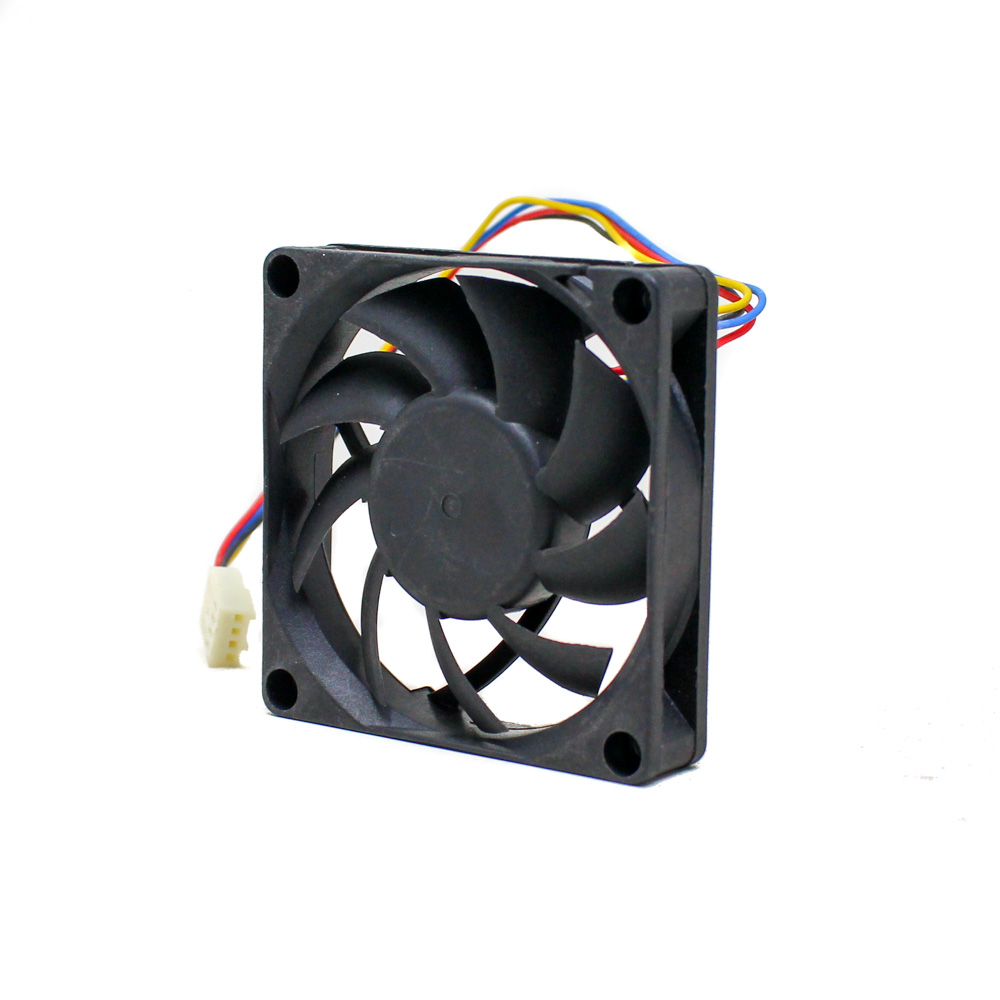

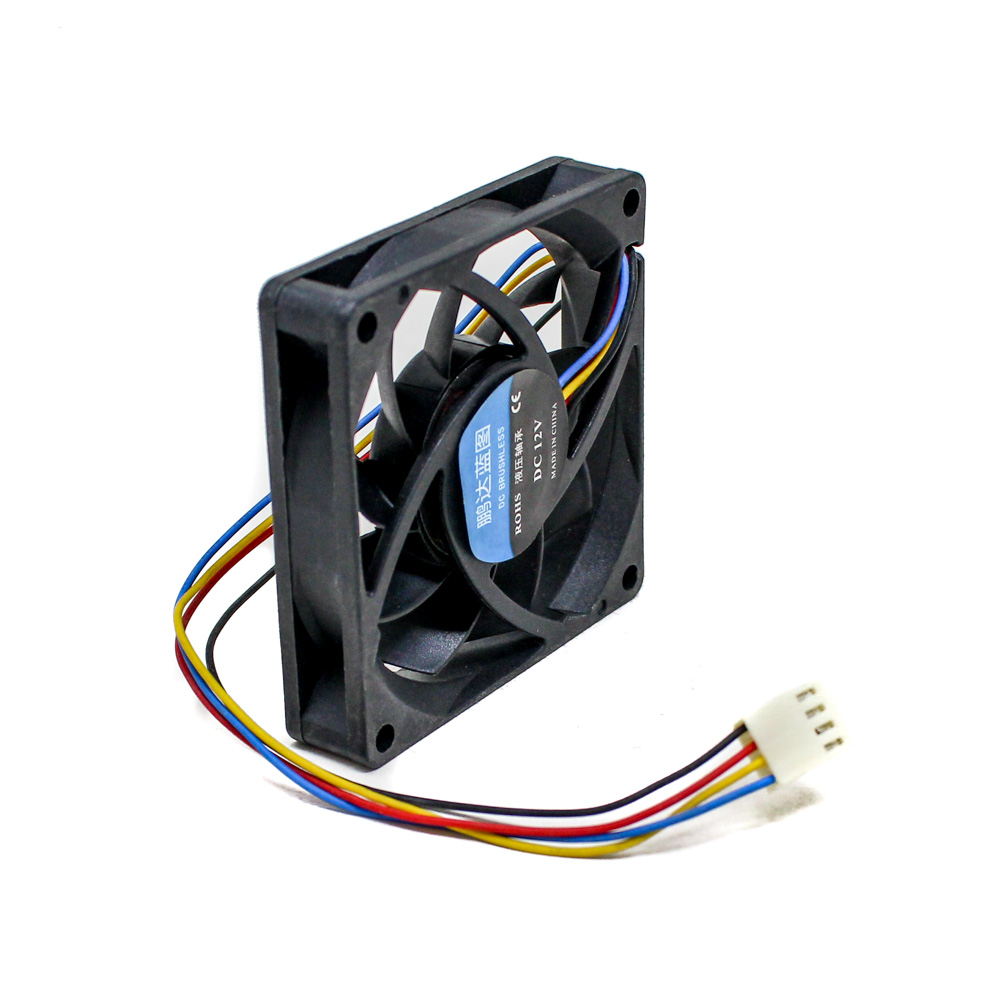

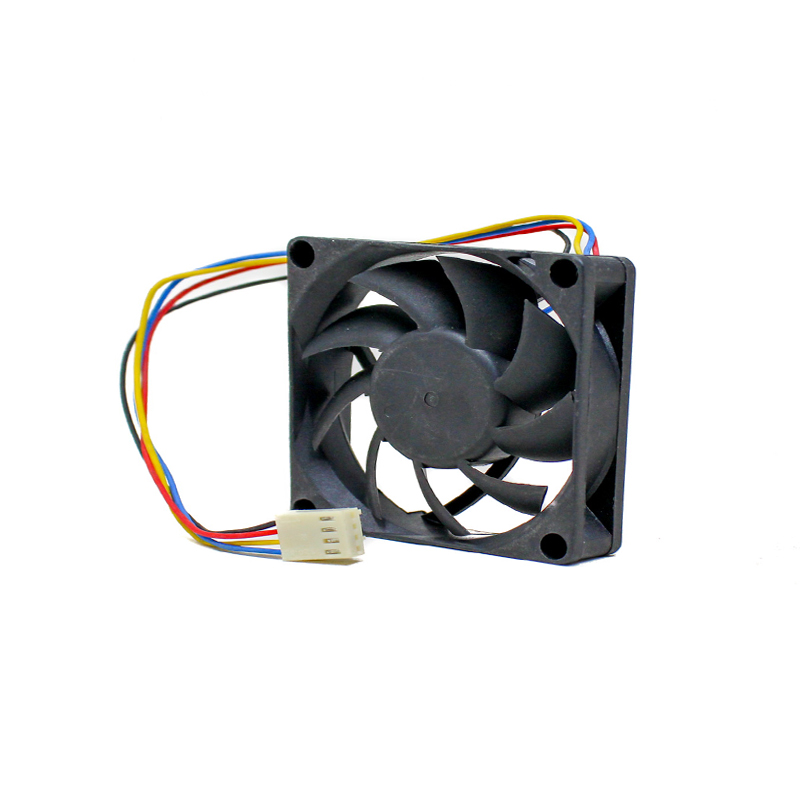

7015 Black 12VDC Smart Cooling Fan
- 70 x 70 x 15 mm casing Frame size
- 60 mm mounting hole spacing
- Cable Length 15 CM
- No. of pins: 4
- Ready to plug the Connector for the Pi board
- Colour: Black
SKU: Not Found
Brand: Generic
Out of stock
₹336.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This is a 70 x 70 x 15 mm smart cooling fan. It has a four-wire input. The purpose of four-wire is possible revolution measuring with low fan speeds and precision control of revolution in all speed ranges providing a PWM signal to the fan according to the cooling requirement.
Signal description
| PIN | Function | Wire color |
|---|---|---|
| 1 | GND | Black |
| 2 | 12V | Yellow |
| 3 | Sense (tach.) | Green |
| 4 | Control (PWM) | Blue |
Signal GND is ground and 12V is the voltage supply for the fan.
Application: CPU, and any smart system.
Package Includes:
1 x 7015 Black 12VDC Smart Cooling Fan
Technical Specifications
| Color | Black |
|---|---|
| Dimensions (L x W x H) mm | 70×15 |
| Item Type | Regular Cooling Fan |
| Material | Metal, Plastic |
| Mounting Hole Diameter (mm) | 6 |
| No. of Pins | 4 |
| Rated Voltage (V) | 12 |
| Shipping Dimensions | 8 × 7 × 4 cm |
| Shipping Weight | 0.03 kg |
