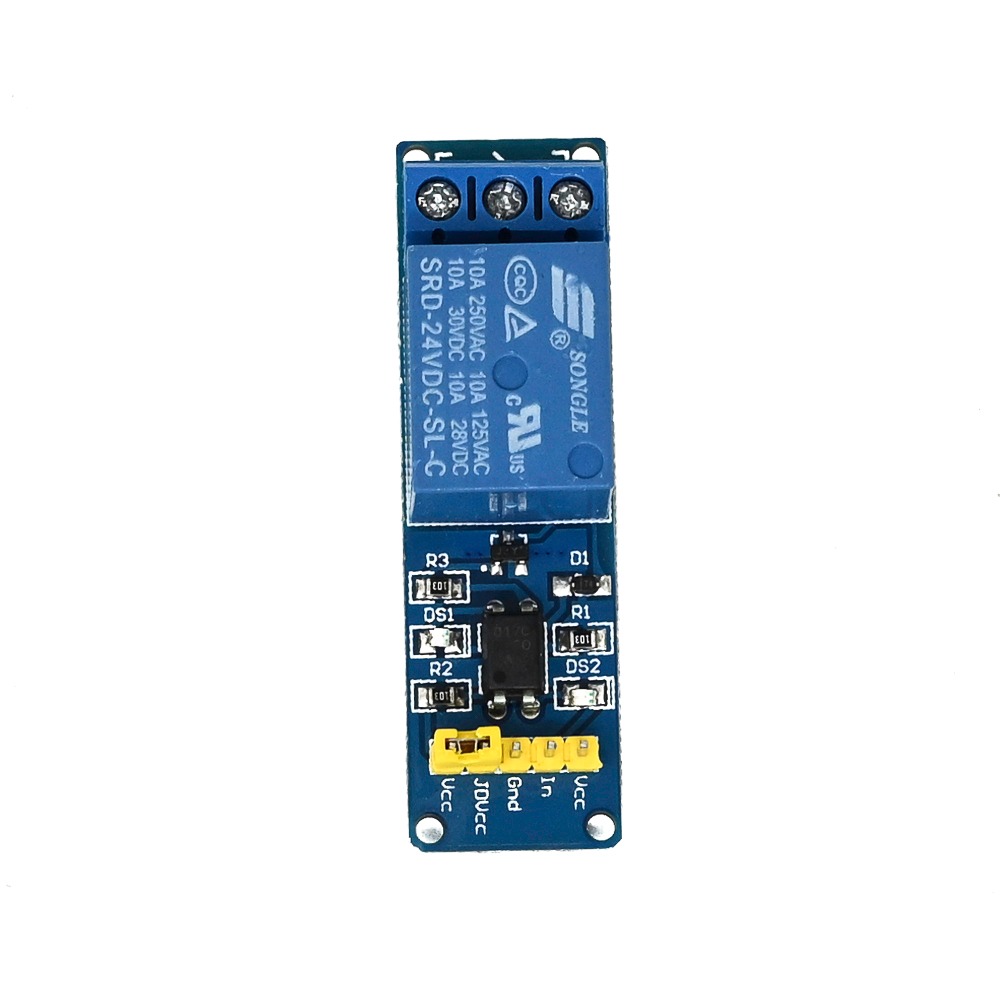

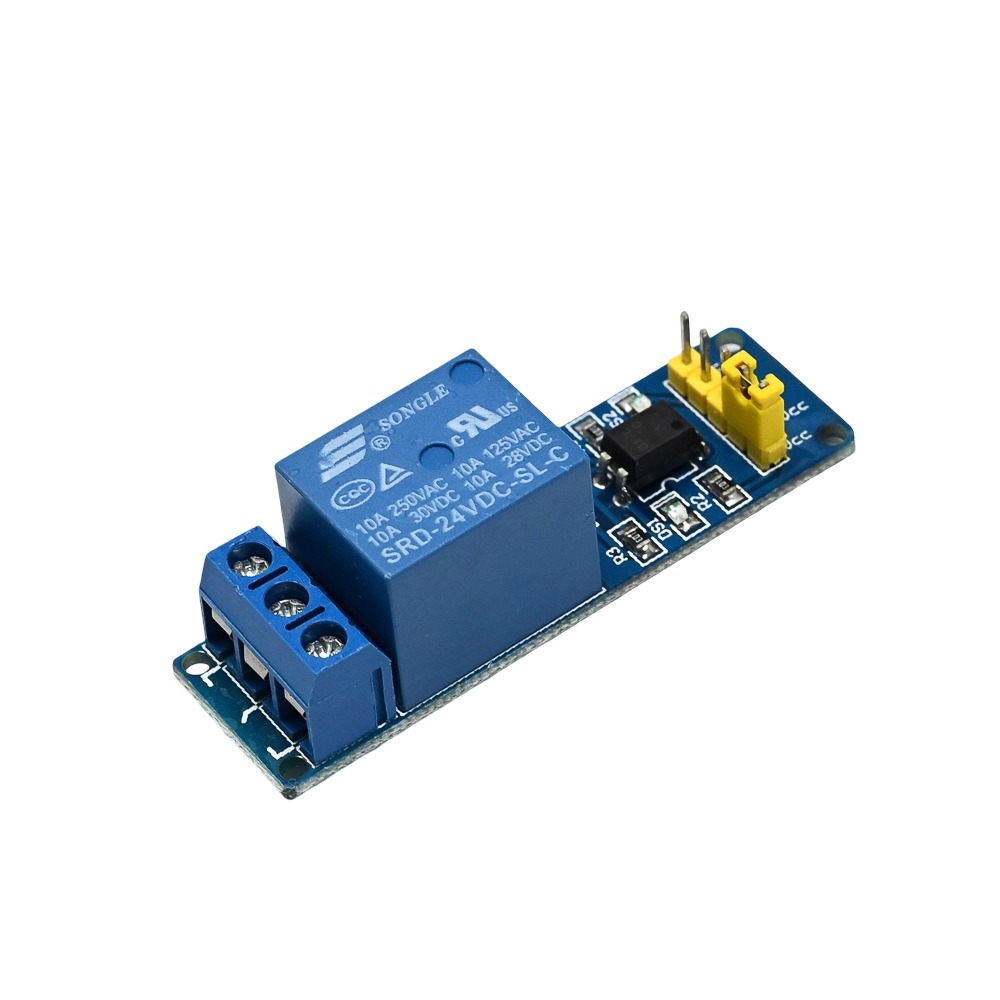

24V Low Level Trigger 1 Way Relay Module with Optocoupler for Arduino
- Working current : 12.5mA
- Trigger Current :2mA
- Trigger Voltage : 24VDC
- Switching Voltage VAC : 5060@2A
- Max. Load : 2A @240V AC
SKU: Not Found
Brand: Generic
Out of stock
₹73.57
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 1-Channel 24V 10A Relay Module with Optocoupler is a reliable and safe solution for controlling high-voltage AC or DC loads using low-voltage control signals. Designed with optocoupler isolation, it protects sensitive control circuits from electrical noise and voltage spikes.
The Relay Module with Optocoupler supports both high-level and low-level triggering, making it compatible with a wide range of microcontrollers such as Arduino, AVR, PIC, and ARM. With clear terminal markings and onboard status indicators, it is easy to install and ideal for home automation, industrial control, and appliance switching applications.
Features:
- Optocoupler isolation for enhanced safety and noise immunity
- Supports both high-level and low-level trigger modes
- Can switch high-voltage AC or DC loads
- Compatible with Arduino, AVR, PIC, ARM, and PLC systems
- Onboard LED indicators for power and relay status
- Clear separation between control and load sections
Package Includes:
1 x Relay Output 1 Way Relay Module 24V Low Level Trigger with Optocoupler
Technical Specifications
| Height (mm) | 15 |
|---|---|
| Item Type | 1 Way Relay Module |
| Length (mm) | 55 |
| Max. Load Voltage | 2A @240V AC |
| No. of Channels | 1 |
| Shipping Dimensions | 5 × 5 × 2 cm |
| Shipping Weight | 0.02 kg |
| Switching Voltage (VAC) | 5060@2A |
| Trigger Current (mA) | 2 |
| Trigger Voltage (VDC) | 24 |
| Weight (g) | 14 |
| Width (mm) | 17 |
| Working Current (mA) | 12.5 |
