(901–1700 KV) Long-Range & Endurance Drone Motors
XING-E Pro 2306 2-6S FPV Motor Unibell – 1700KV
- 1700KV High-Speed Performance
- Durable Unibell Design
- N52H Magnets
- NSK Bearings
- 16x16mm Mount
SKU: Not Found
Brand: iFlight
Out of stock
₹1759.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

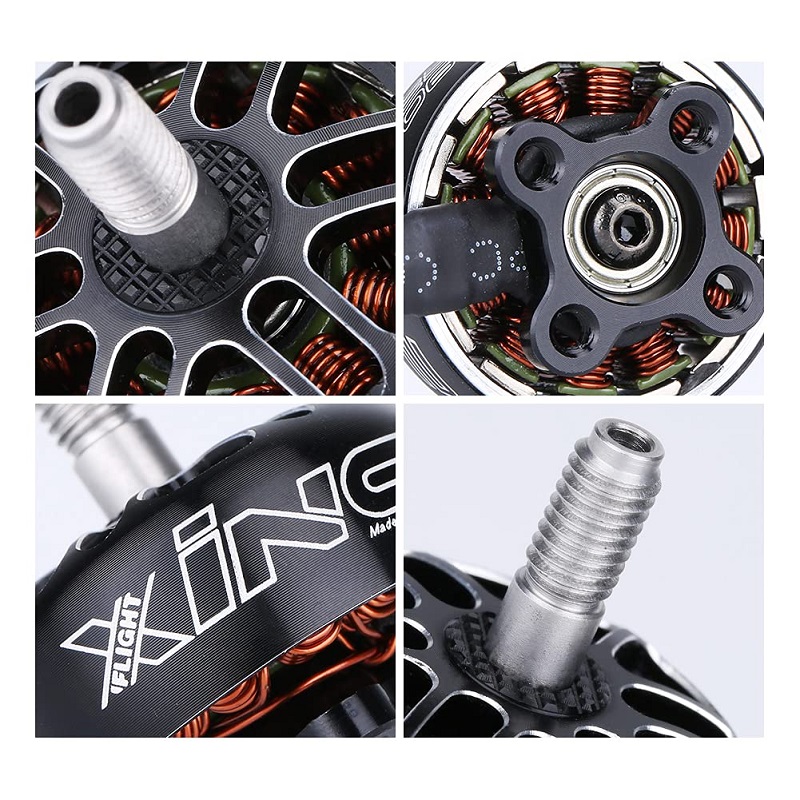

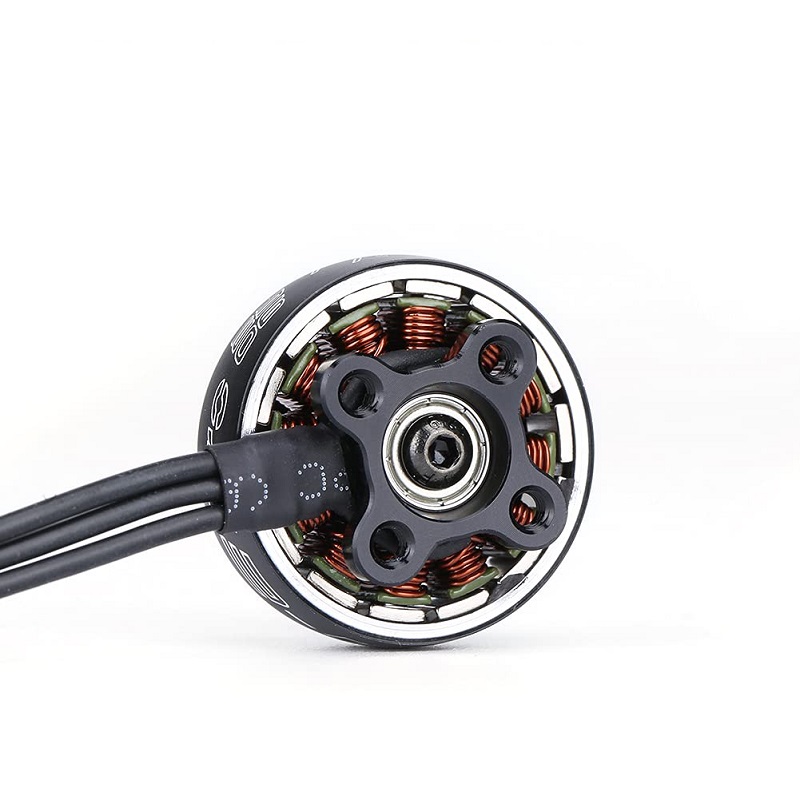

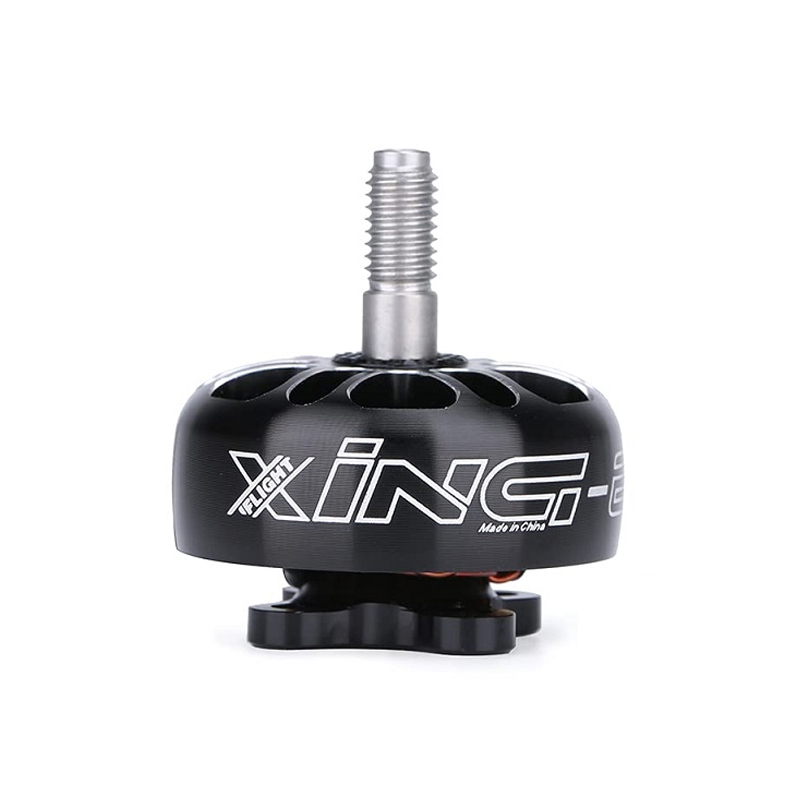

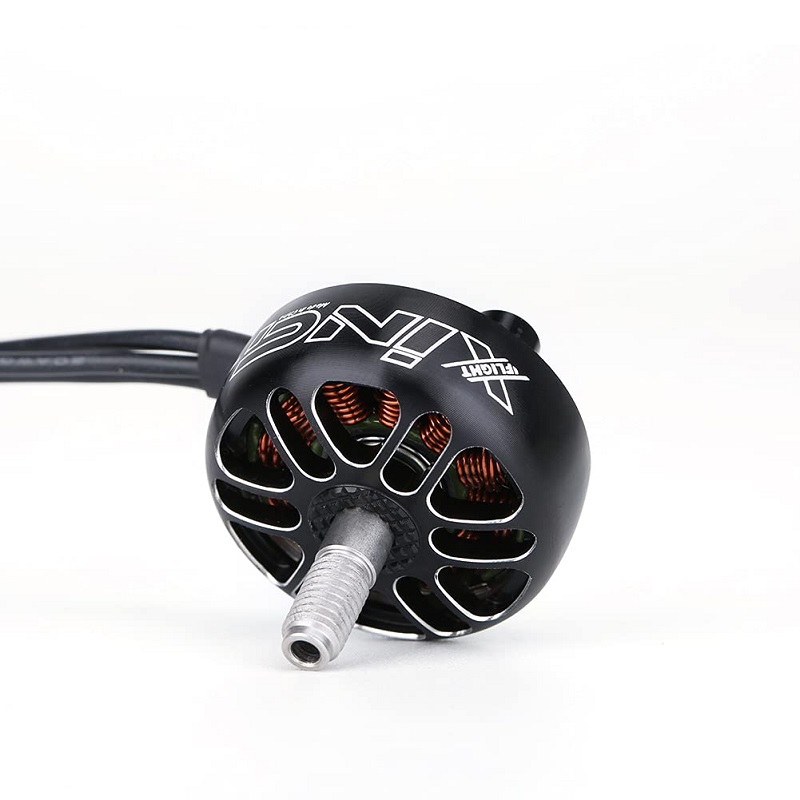

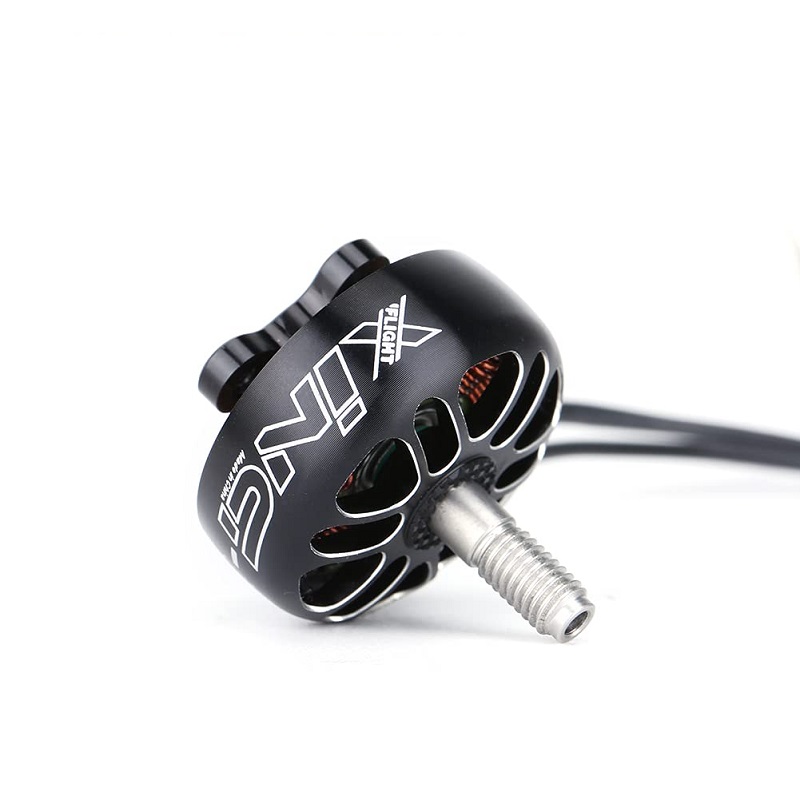

XING-E Pro 2306 2-6S FPV Motor Unibell – 1700KV Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focus on quality, the XING-E Pro series affordable motors that are strong and durable. This 2306 sized motor features a high-strength 5mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features:
- High-strength 5mm Steel shaft
- N52SH High-temperature magnets, NSK bearings
- 16x16mm hole pattern
- Single strand copper winding
- 6061 CNC machined aluminum top and base parts
- Hex bolt shaft set screw

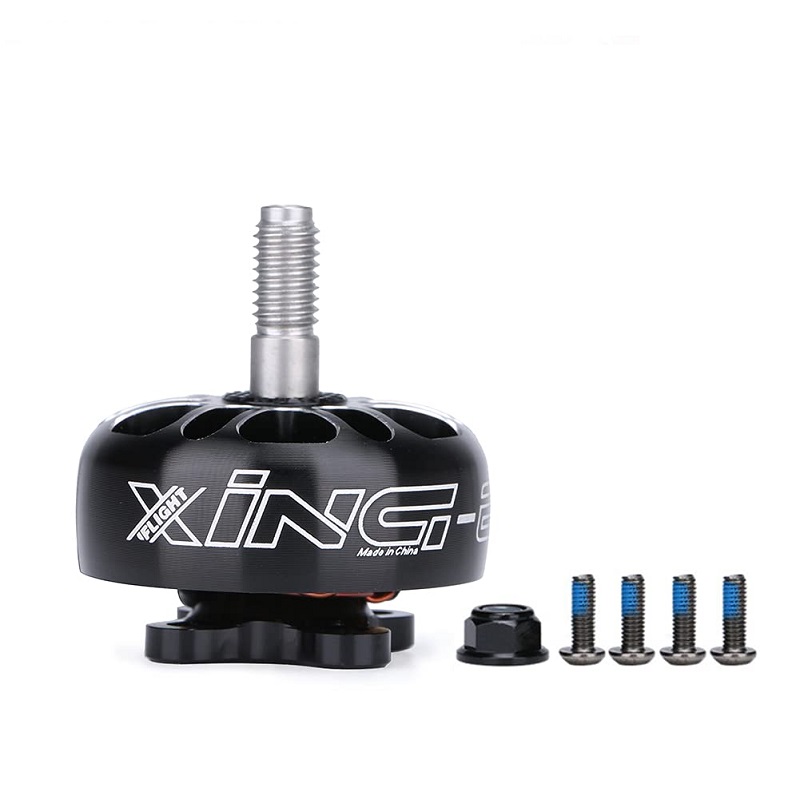

Package Includes:
1 x XING-E Pro 2306 motor
4 x M3*8 Screws
1 x M5 Flanged Nylon Insert Lock Nut
Technical Specifications
| Bearing Size | φ9*φ4*4 |
|---|---|
| Bearing Type | NSK |
| Configuration | 12N14P |
| Dimensions (L x W x H) mm | φ29*18.7 |
| Input Voltage | 25.2V |
| Magnets | N52H Curved |
| Model Name | XING-E Pro 2306 Motor |
| Motor KV (RPM/V) | 1700 |
| Motor Type | FPV Motor |
| Mounting holes | 16*16 φ3mm |
| Peak Current (A) | 36.66A |
| Shaft Diameter | 5mm |
| Shaft Length | 13.5 mm |
| Shipping Dimensions | 5 × 5 × 5 cm |
| Shipping Weight | 0.044 kg |
| Watts | 920.2W |
| Weight (g) | 33.6 |
| Winding Type | Single Strand copper winding |
