Battery Charger Module

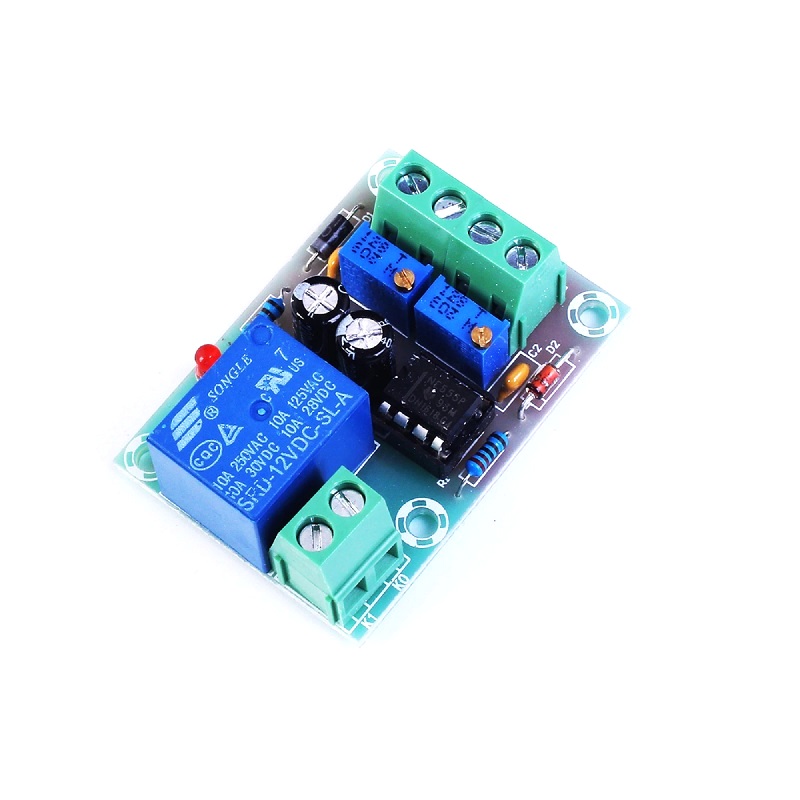

XH-M601 12V Battery, Charging Control Board, Intelligent Charger Power, Control Panel Automatic, Charging Power
- Power Supply Voltage:13.8-14.8V
- Relay Operating Voltage:12.4V
- Relay Disconnect Voltage:14.8V
- Voltage Tolerance:+/-0.1V
- Voltage Detection Way: DC voltmeter
SKU: Not Found
Brand: Generic
Out of stock
₹146.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This is a XH-M601 12V Battery Charging Control Board Intelligent Charger Power Control Panel Automatic Charging Power.

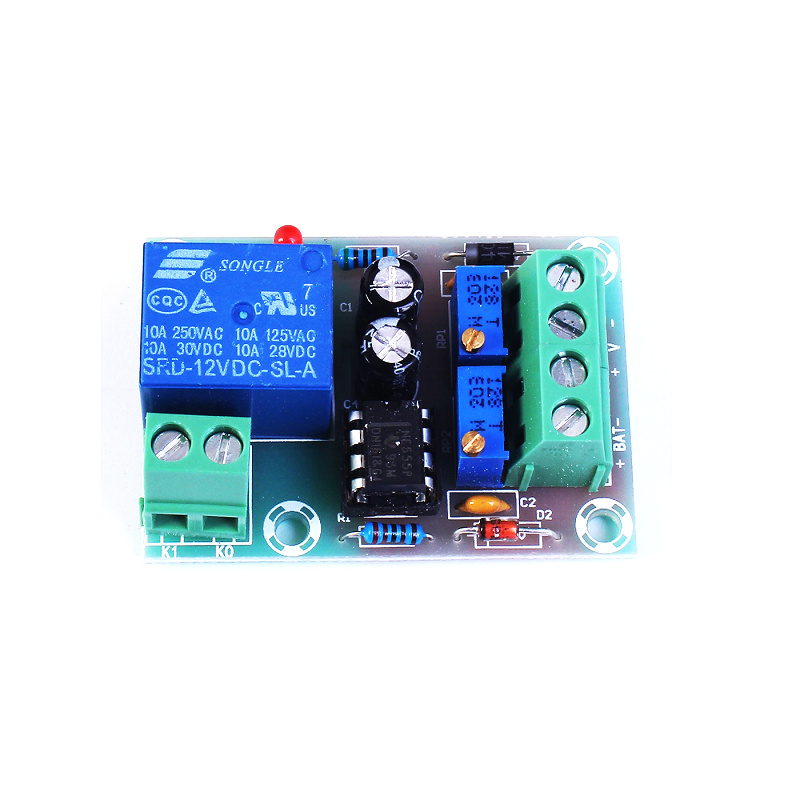

Potentiometer Adjustment:
RP1:adjust storage battery start charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
RP2:adjust storage battery disconnect charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
Connection diagram:
Features:
- It is very smart and helps to save electricity, and is safe.
- Automatically power off, save energy and extend battery life.
- Durable, Charging Protection, Easy to Install
Package Includes:
1 x XH-M601 12V Battery Charging Control Board Intelligent Charger Power Control Panel Automatic Charging Power
Technical Specifications
| Additional Specs. | Relay Operating Voltage: 12.4V Relay Disconnect Voltage: 14.8V Voltage Tolerance: '+/-0.1V Charging Type: 12V storage battery |
|---|---|
| Battery Cell Composition | Multiple |
| Output Current (A) | Variable |
| Output Voltage (V) | 12 |
| Power Supply(V) | 13.8-14.8V |
| Shipping Dimensions | 15 × 11 × 1 cm |
| Shipping Weight | 0.04 kg |
