Crystals

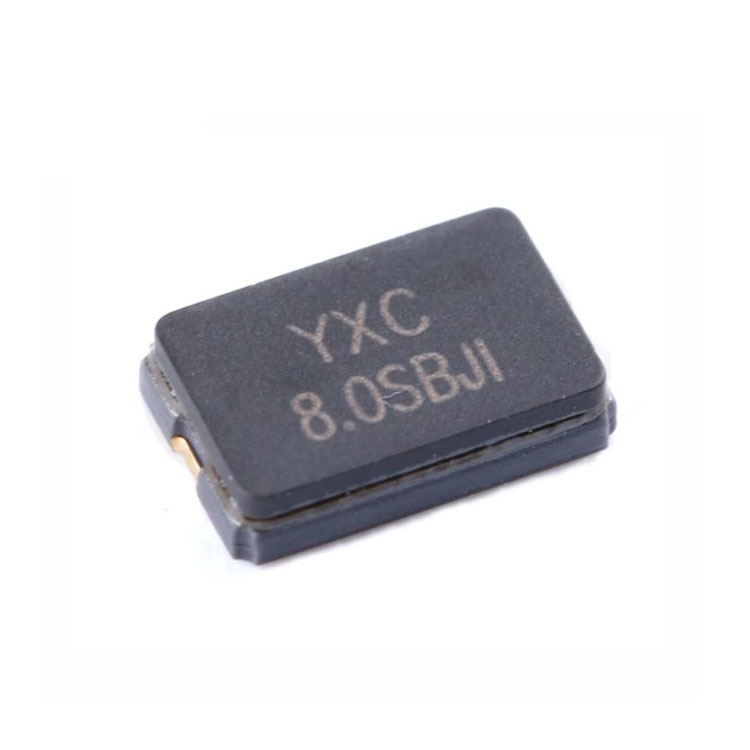

X50328MSB2GI-YXC Crystal Oscillators-8MHz Surface Mount Crystal 20pF ±10ppm ±20ppm SMD5032 Crystals ROHS
- MPN: X50328MSB2GI
- Brand: YXC Crystal Oscillators
SKU: Not Found
Brand: YXC Crystal Oscillators
Out of stock
₹27.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
X50328MSB2GI-YXC Crystal Oscillators-8MHz Surface Mount Crystal 20pF ±10ppm ±20ppm SMD5032 Crystals ROHS.
Note: Images for reference only.
Specifications:
Manufacturer: YXC Crystal Oscillators
Package: SMD5032
Frequency: 8MHz
Type: Surface Mount Crystal
Load Capacitance: 20pF
Normal temperature Frequency Tolerance: ±10ppm
Frequency Stability: ±20ppm
Operating Temperature: -40℃~+85℃
For detailed specifications, please refer to datasheet in Attachments.
Package Includes:
1 x X50328MSB2GI-YXC Crystal Oscillators-8MHz Surface Mount Crystal 20pF ±10ppm ±20ppm SMD5032 Crystals ROHS
Technical Specifications
| Case/Package | SMD5032 |
|---|---|
| Frequency Rating | 8MHz |
| Frequency Tolerance (ppm) | +/-10 |
| Manufacturer | YXC Crystal Oscillators |
| Mounting Type | SMD |
