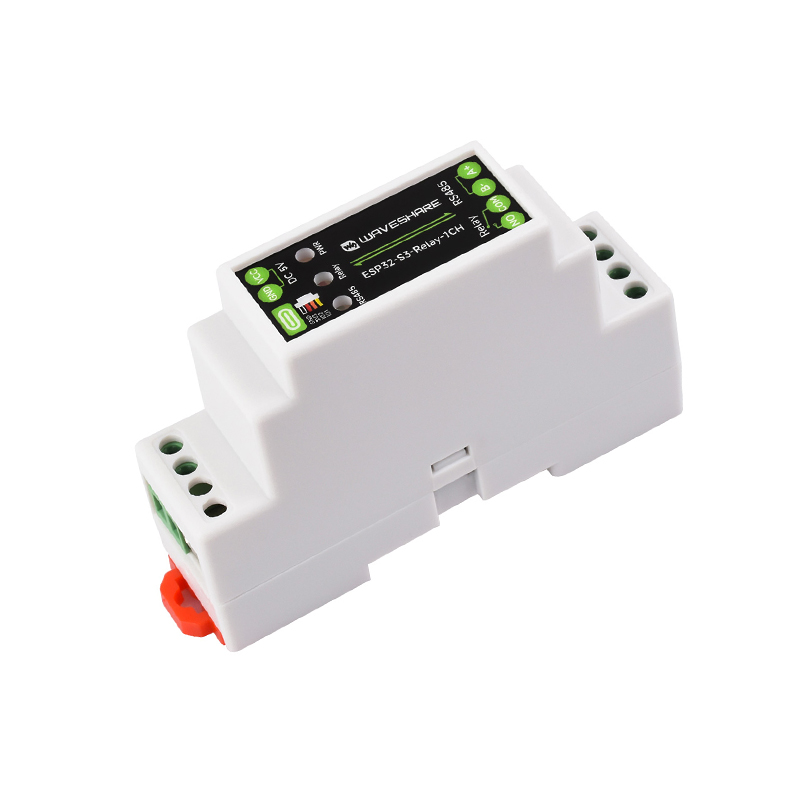

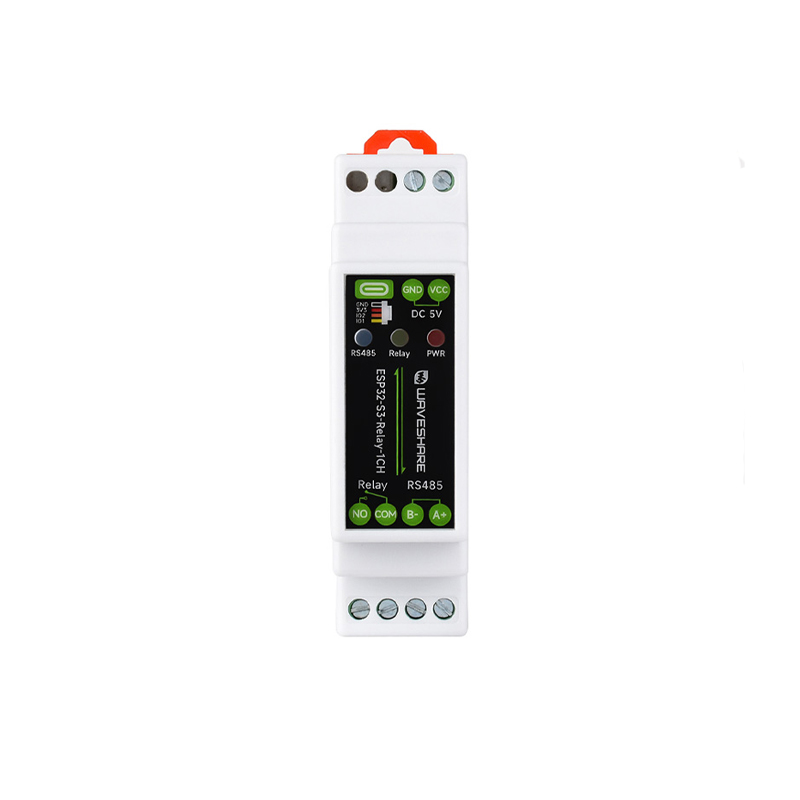

The Waveshare Industrial 1-Channel ESP32-S3 WiFi Relay Module is a robust, rail-mount automation solution designed for industrial applications. Powered by the ESP32-S3 microcontroller, it supports dual-mode wireless communication via Wi-Fi and Bluetooth 5 (LE), and includes an isolated RS485 interface for seamless integration with Modbus sensors or controllers. With multiple isolation protections—power, optocoupler, and digital—the module ensures safe, stable, and interference-free operation.

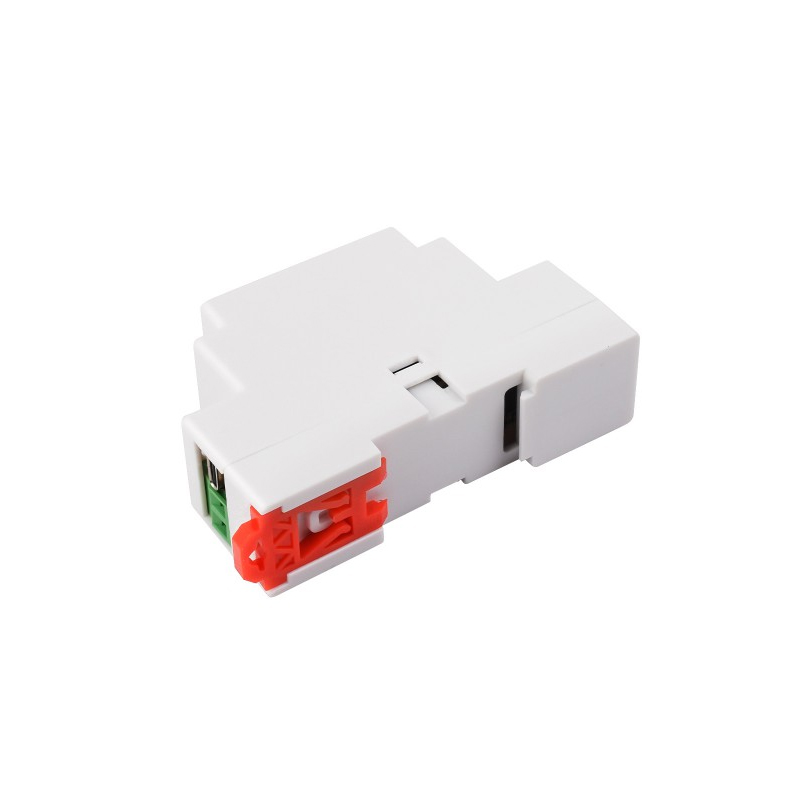

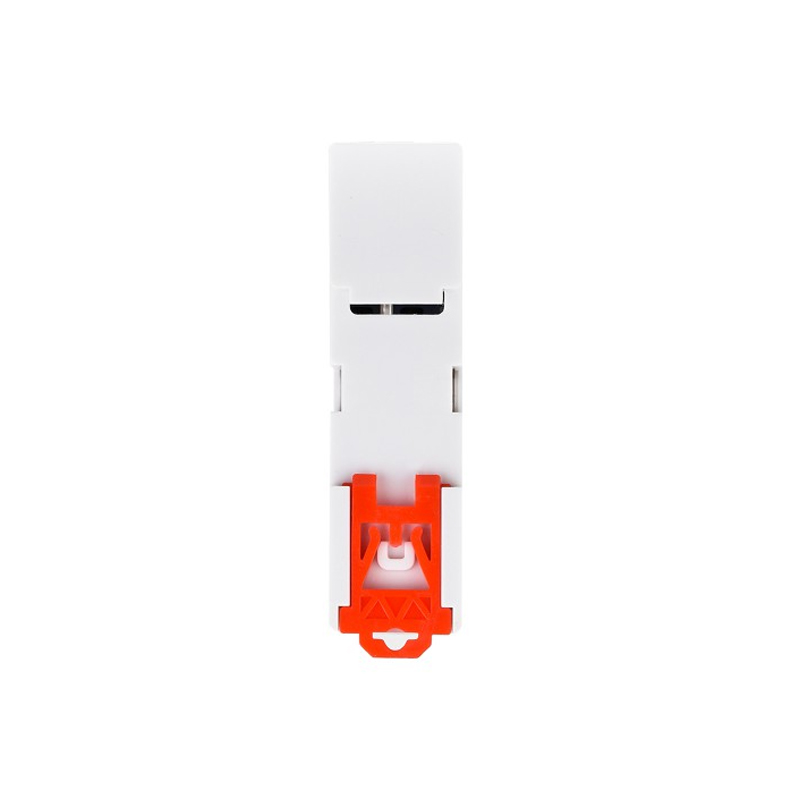

The onboard high-quality relay (rated up to 10A 250VAC/30VDC) enables remote control of high-voltage or DC devices. An onboard RTC chip supports scheduled automation, while USB Type-C simplifies power and debugging. Housed in a DIN rail-mountable enclosure, it’s easy to install, safe to deploy, and perfect for smart factory, home automation, and industrial IoT solutions.

Features:

1. Based on ESP32-S3 with dual-core LX7 processor (up to 240 MHz)
2. Integrated GHz Wi-Fi and Bluetooth 5 (LE) for wireless connectivity
3. High-quality 1-channel relay (≤10A 250VAC/30VDC) for direct load control
4. Onboard RS485 interface with isolation for Modbus devices
5. Built-in RTC chip for scheduled tasks and real-time operations
6. Multiple isolation circuits: power, optocoupler, and digital isolation
7. USB Type-C port for power, debugging, and firmware updates

Package Includes:

1 x ESP32-S3-Relay-1CH

1 x SH1.0 4PIN cable ~150mm

1 x Screwdriver
