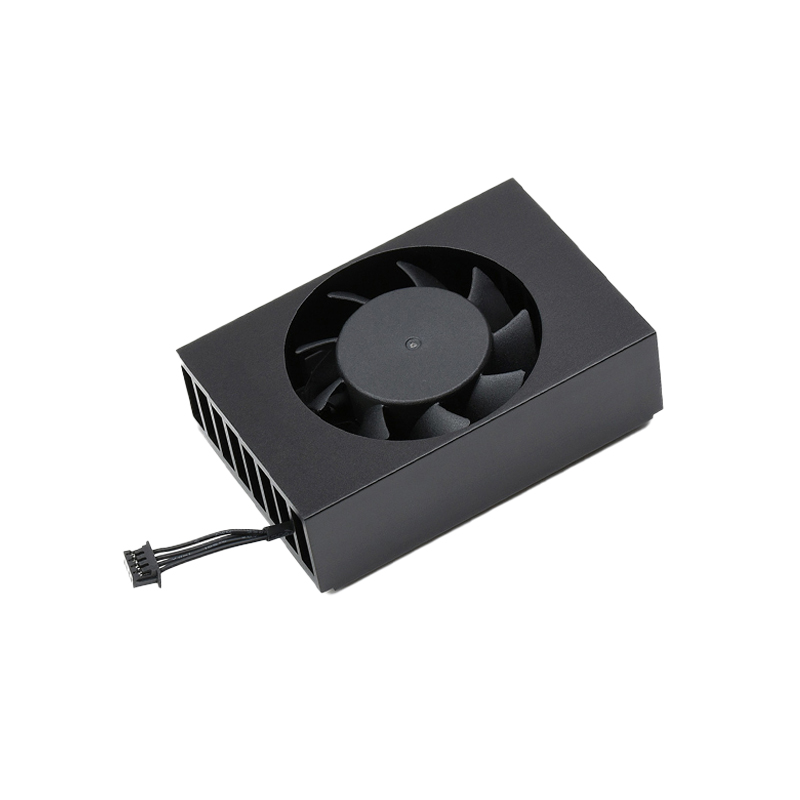

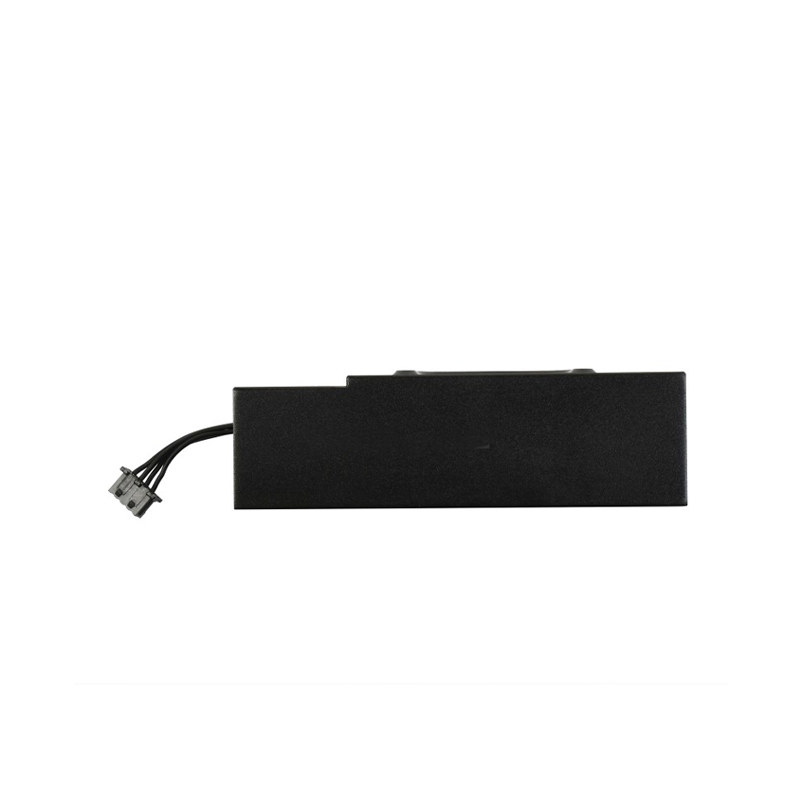

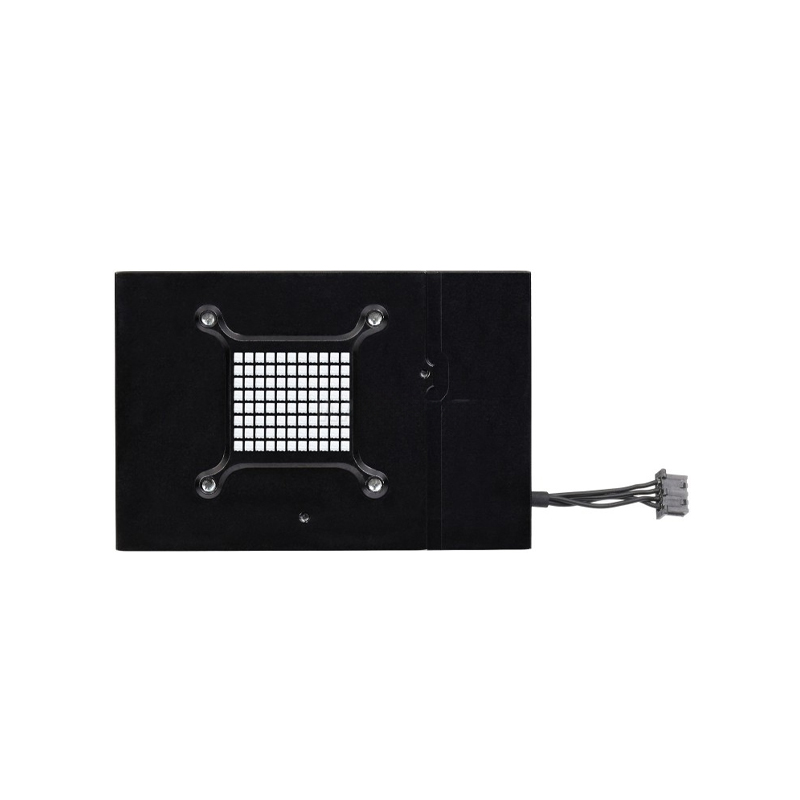

Waveshare Dedicated Cooling fan for Nvidia Jetson TX2 NX
- For the NVIDIA Jetson TX2 NX module
- 5V DC power supply
- PWM fan: 5500±10% RPM
- Aluminum alloy casing
- Easy mounting with a bracket
- Silicone grease pre-applied
SKU: Not Found
Brand: WAVESHARE
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Waveshare Dedicated Cooling fan for Nvidia Jetson TX2 NX is a purpose-built, high-efficiency cooling solution designed to keep your Jetson TX2 NX module running at optimal temperatures. With a compact aluminum alloy enclosure and an embedded PWM speed-adjustable fan spinning at 5500±10% RPM, it ensures silent and effective heat dissipation. It includes an elastic bracket and height-limited screws for easy, secure installation. Powered via a 5V DC input, the fan is efficient with a low 0.65W power draw. Pre-applied silicone grease helps enhance thermal conductivity—please avoid touching it when unpacking. Ideal for developers working on AI, robotics, or embedded systems.
Features:
- Compatible with NVIDIA Jetson TX2 NX module
- Built-in PWM speed-adjustable fan (5500±10% RPM)
- Durable aluminum alloy housing
- Easy installation with elastic bracket and height-limited screws
- Low-power operation (5V, 0.13A)
- Reserved silicone grease for efficient heat transfer
Package Includes:
1 x Waveshare Dedicated Cooling fan for Nvidia Jetson TX2 NX
1 x Elastic bracket and height-limited screws
Technical Specifications
| Cable length (mm) | 37±3 |
|---|---|
| Electrical Parameter | 0.65W (5V/0.13A) |
| Fan Type | PWM speed-adjustable |
| Height (mm) | 18 |
| Item Type | Cooling Fan |
| Length (mm) | 57.8 |
| Model No | TX2 NX |
| Power Supply | DC 5V input |
| Rated Voltage (V) | 05 |
| Shipping Dimensions | 9 × 6 × 4 cm |
| Shipping Weight | 0.071 kg |
| Speed(rpm) | 5500±10% |
| Weight (g) | 46 |
| Width (mm) | 39 |
