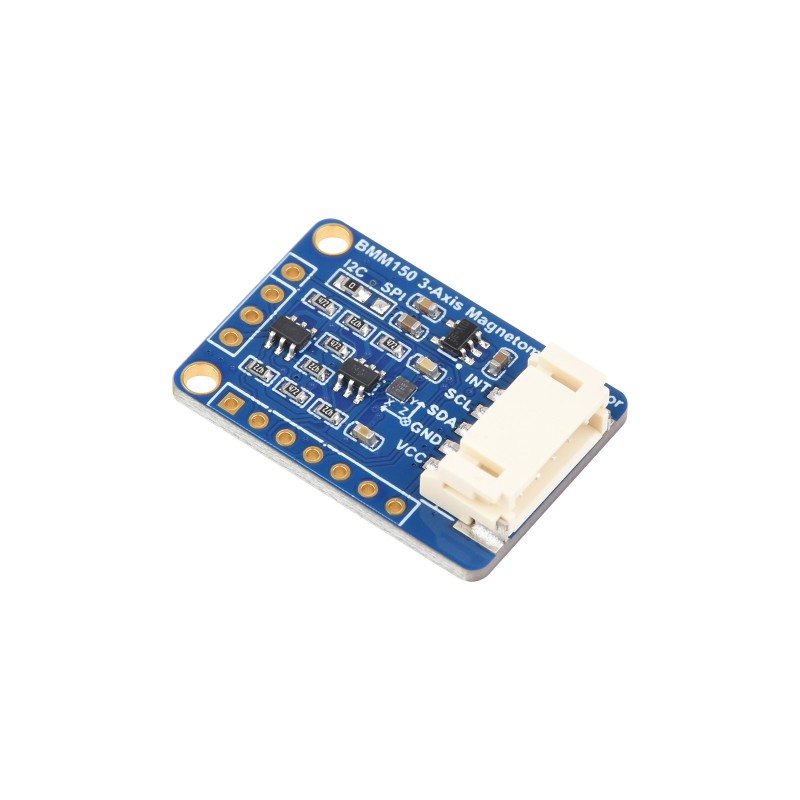

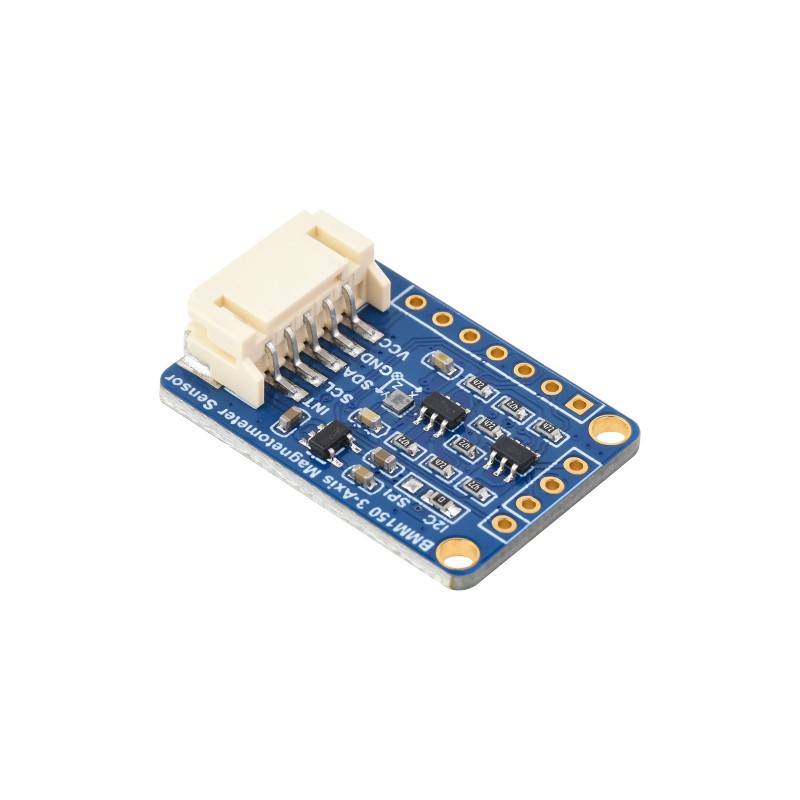

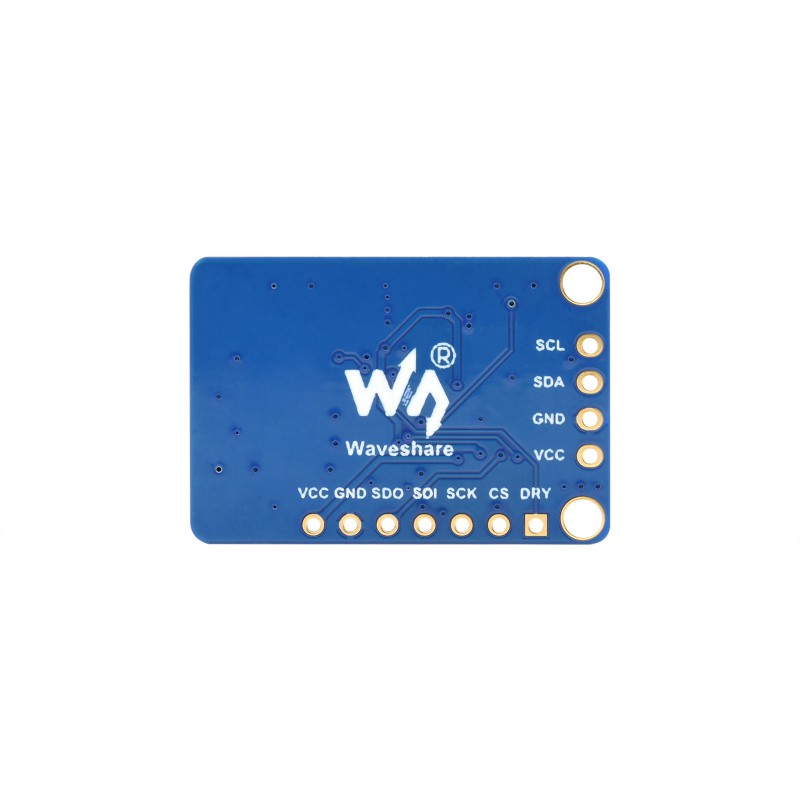

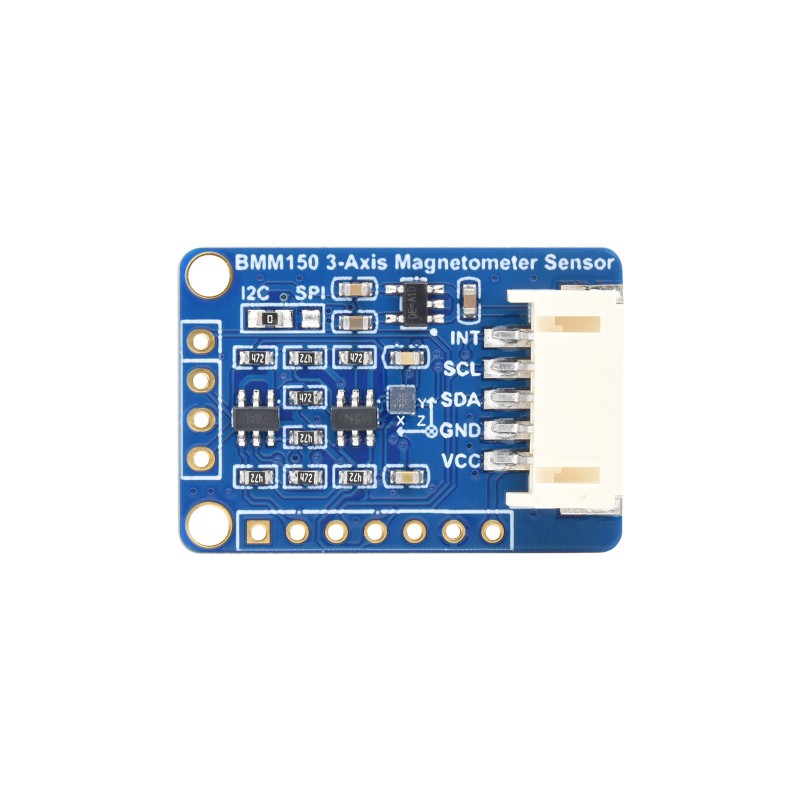

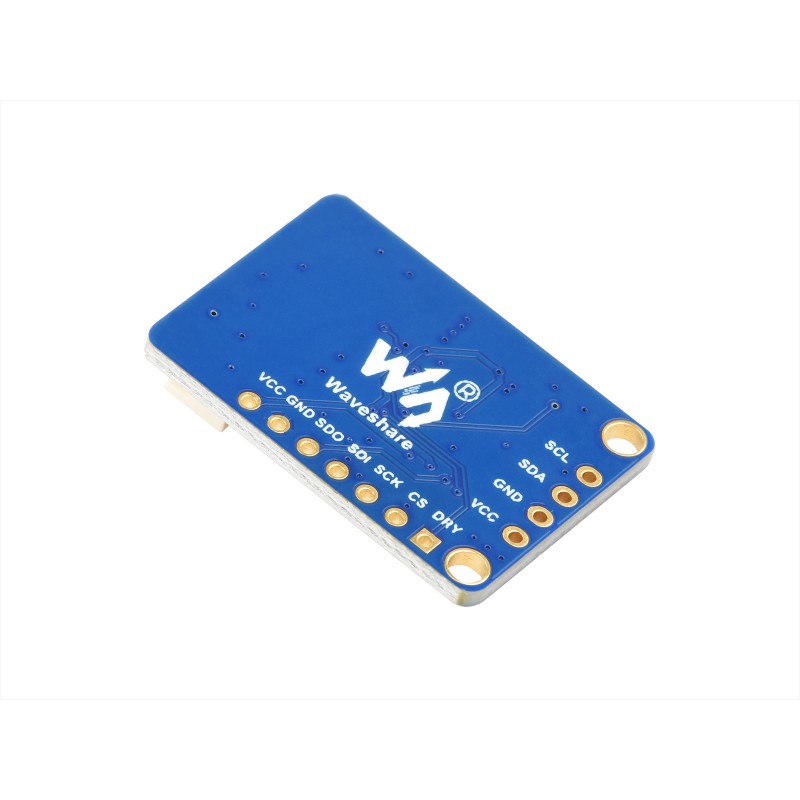

Waveshare BMM150 3-Axis Magnetometer Sensor
- Communication Interface: I2C / SPI (I2C bus by default)
- Power Supply: 3.3V~5V
- Magnetic Measuring Range: 1300μt (X, Y axis), 2500μt (Z axis)
SKU: Not Found
Brand: WAVESHARE
Out of stock
₹673.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The BMM150 3-axis Magnetometer Sensor is a highly accurate and versatile digital compass sensor designed for precise magnetic field measurement. It is commonly used in various applications, including navigation systems, augmented reality, robotics, and IoT devices.
The sensor employs advanced magnetoresistive technology to detect and measure the Earth’s magnetic field in three dimensions: X, Y, and Z axes. This enables it to provide accurate heading information and magnetic field measurements, making it an essential component in compass and orientation systems.
Features:
- Onboard BMM150 for measuring the magnetic field in three perpendicular axes
- Supports I2C/SPI interface communication, I2C interface by default, SPI switchable via onboard resistor
- Onboard voltage translator, compatible with 3.3V/5V level
- Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)
Package Includes:
1 x Waveshare BMM150 3-axis Magnetometer Sensor, Digital Compass Sensor, Magnetic Field Measurement
1 x 5pin connector cable
Technical Specifications
| Communication Mode | I2C / SPI (I2C bus by default) |
|---|---|
| Dimensions (mm) | 30 x 20 x 10 |
| Item Type | Magnetometer |
| Magnetic field range | 1300μt (X, Y axis), 2500μt (Z axis) |
| Model | Magnetometer Sensor |
| Operating Power | 3.3V~5V |
| Operating Temperature (°C) | -40℃ ~ +85 ℃ |
| Resolution | 0.3μT |
| Shipping Dimensions | 11 × 7 × 1 cm |
| Shipping Weight | 0.006 kg |
| Weight (g) | 4 |
