LED Module

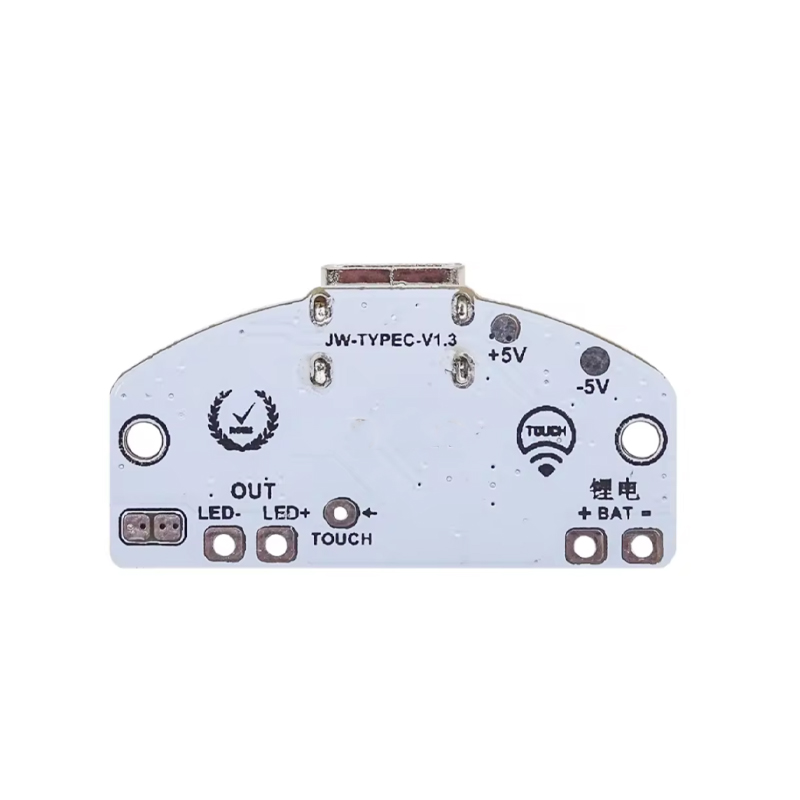

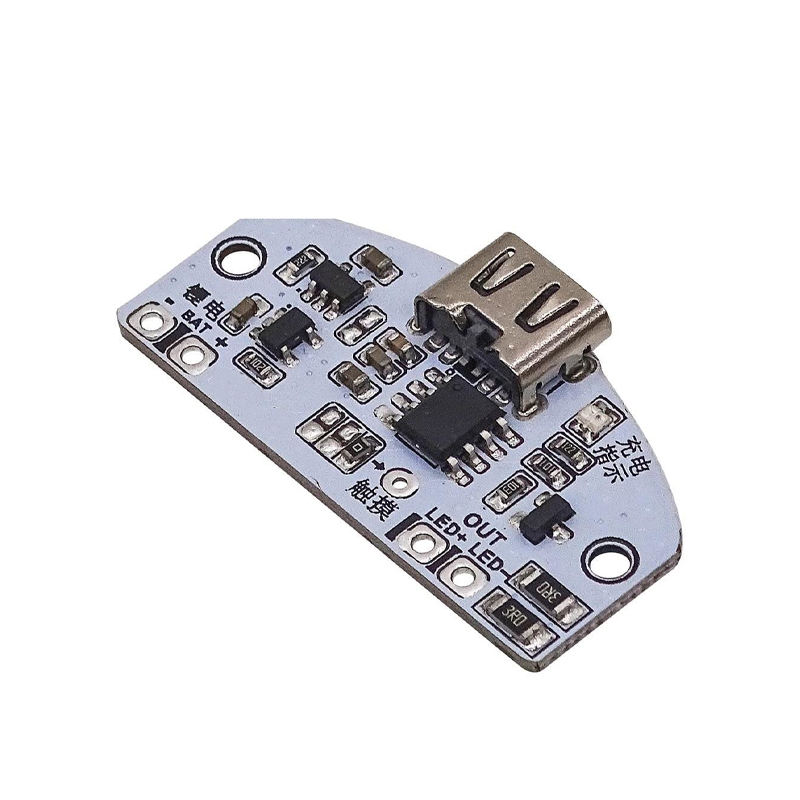

TYPE-C Table Lamp Circuit Board LED Control Module 3-Speed A
- Smooth stepless and 3-level dimming
- Eye-protecting, flicker-free output
- Type-C charging at 0.5A
- Works with 3.7V lithium batteries
- High-sensitivity capacitive touch sensor
- Ideal for DIY touch lamps and crafts
SKU: Not Found
Brand: Generic
Out of stock
₹96.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This compact and versatile Type-C table lamp circuit board is designed for use with 3.7V lithium batteries. Featuring three-speed and stepless dimming options, it offers smooth, flicker-free brightness control through a highly sensitive capacitive touch sensor. Built-in overcharge and discharge protection ensures battery safety, while the 0.5A charging current supports stable power delivery. Ideal for DIY desk lamps, night lights, and decorative touch crafts, this LED control module ensures eye protection with its >20kHz output frequency. Its small size makes it perfect for portable and compact designs requiring stable, dimmable LED lighting.
Features:
- 3-speed + stepless dimming modes
- Flicker-free (20kHz+ output frequency)
- Capacitive touch sensor for easy control
- Built-in battery protection (overcharge/discharge)
- 0.5A Type-C charging current
Package Includes:
1 x TYPE-C Table Lamp Circuit Board LED Control Module 3-Speed A
Technical Specifications
| Height (mm) | 02 |
|---|---|
| Item Type | LED Lamp Control Module |
| Length (mm) | 35 |
| Model | Type-C table lamp circuit board |
| Shipping Dimensions | 4 × 3 × 2 cm |
| Shipping Weight | 0.005 kg |
| Supply Voltage (VDC) | 3.7 |
| Weight (g) | 01 |
| Width (mm) | 21 |
