ARM®-based Cortex®-M7 32bit MCU + FPU. It supports up to 25 communication interfaces such as Up to 4× I2C interfaces (SMBus/PMBus), Up to 4 USARTs/4 UARTs (27Mbit/s, ISO7816 interface, LIN, IrDA, modem control), Up to 6 SPIs (up to 50Mbit/s), 3 with muxed simplex I2S for audio class accuracy via internal audio PLL or external clock, 2 x SAIs (serial audio interface), 2 × CANs (2.0B active) and SDMMC interface, SPDIFRX interface, HDMI-CEC. It also supports Advanced connectivity like USB 2.0 full-speed device/host/OTG controller with on-chip PHY. Suitable for use in motor drive and application control, medical equipment, industrial applications such as PLC, inverters, circuit breakers, printers and scanners, alarm systems, video intercom and HVAC, home audio appliances, mobile applications, Internet of Things, wearable devices: smartwatches.

Specifications:

Operating Frequency Max: 216MHz
Program Memory Size: 512KB
IC Case / Package: LQFP
Device Core: ARM Cortex-M7
MCU Series: STM32F7
Supply Voltage Min: 1.7V
Operating Temperature Min: -40°C
MCU Family: STM32
No. of Pins: 100Pins
Data Bus Width: 32 bit
ADC Resolution: 12Bit
MSL: MSL 3 – 168 hours
No. of I/O’s: 82I/O’s
Product Range: STM32 Family STM32F7 Series Microcontrollers
IC Mounting: Surface Mount
Supply Voltage Max: 3.6V
RAM Memory Size: 340KB
ADC Channels: 16Channels
Interfaces: CAN, Ethernet, I2C, I2S, SPI, UART, USART, USB
Operating Temperature Max: 85°C

Package Includes:

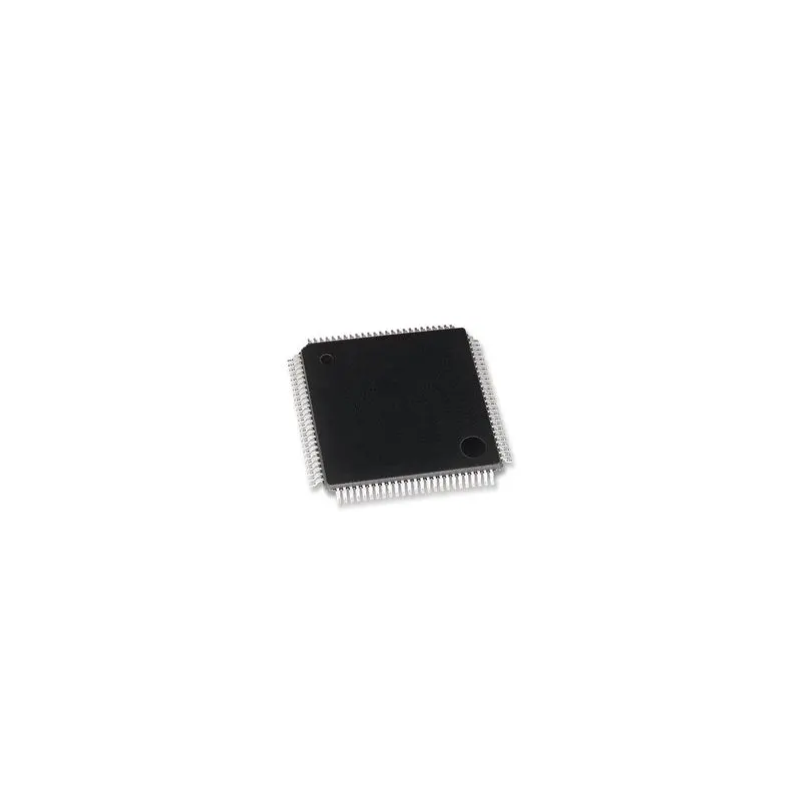

1 x STM32F746VET6-STMICROELECTRONICS-ARM MCU, STM32 Family STM32F7 Series Microcontrollers, ARM Cortex-M7, 32 bit, 216 MHz, 512 KB
