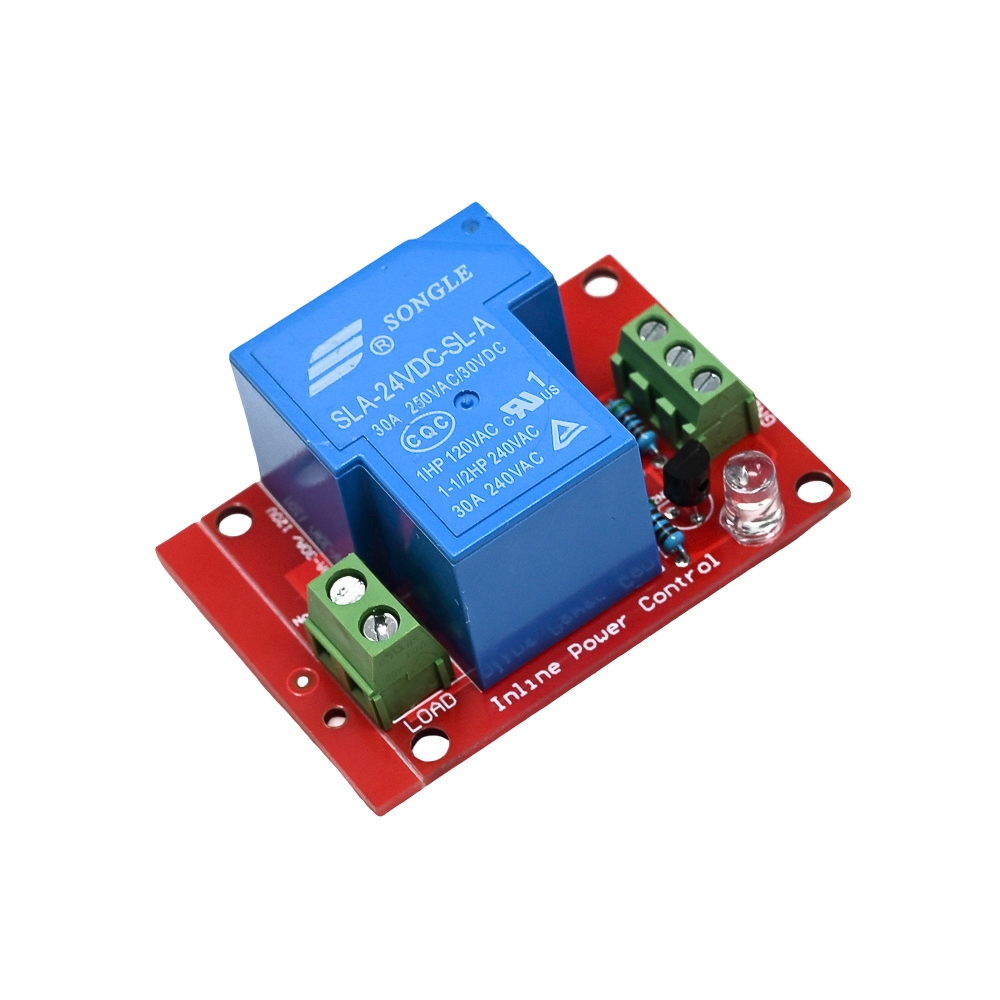

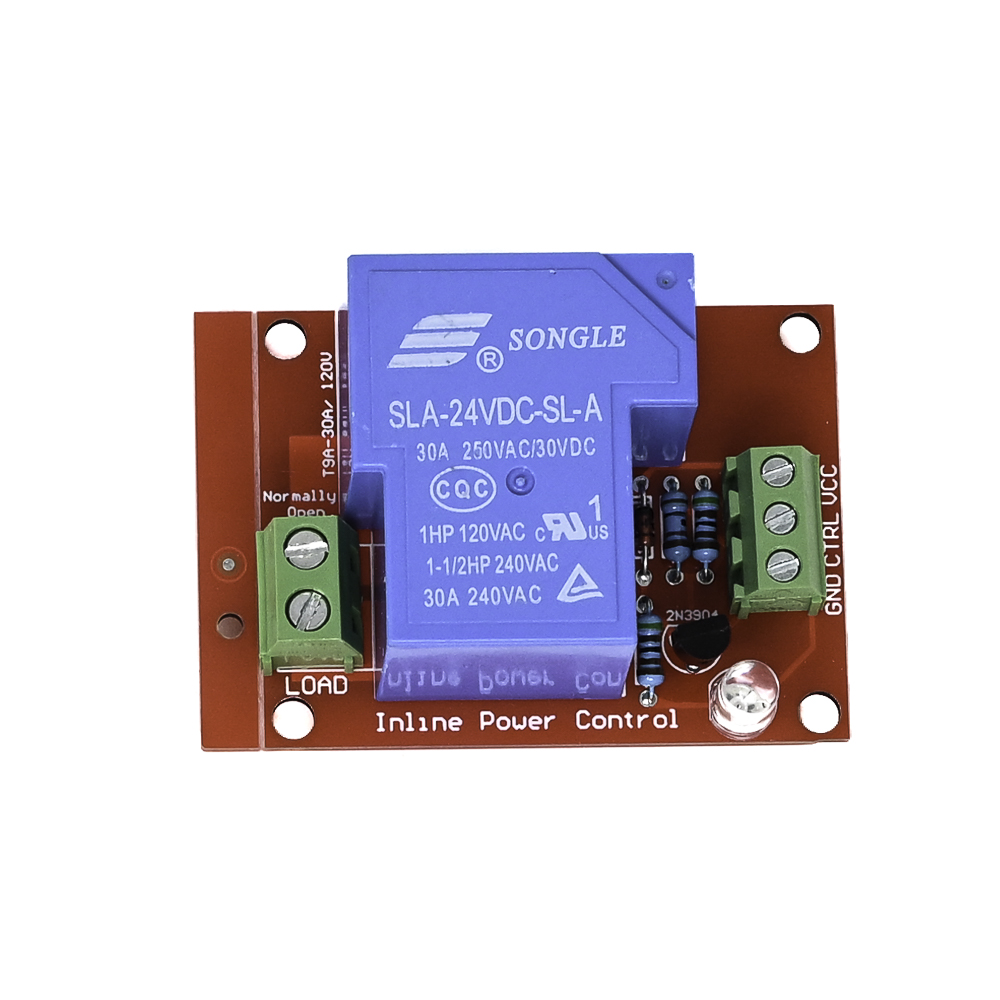

Songle SLA-24VDC-SL-A 24V 30A Single-Channel Relay Module High-Level Trigger
- Coil Nominal Voltage: 24V DC
- Max Switching Voltage: 240V AC / 30V DC
- Max Switching Current: 30A
- Output Modes: Normally Open / Normally Closed
- Compatible with Arduino, AVR, PIC, ARM microcontrollers
SKU: Not Found
Brand: Songle
Out of stock
₹195.05
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 24V 30A Single-Channel Relay Module is a high-quality relay module designed for robust switching applications. Featuring a mechanical relay with optical isolation, it provides strong anti-interference performance and stable operation. This module is suitable for Arduino, AVR, PIC, ARM, and other microcontrollers operating at 5V, allowing easy integration into DIY electronics and industrial control systems.
Its high/low level control selection and power failure detection make it ideal for automation projects, relay triggering, and high-current switching applications.
Features:
- Single-channel 24V DC mechanical relay
- Maximum switching 30A current
- High/Low level trigger selectable
- Optical isolation for anti-interference protection
- LED status indicators for easy monitoring
Package Includes:
1 x Songle 24V 30A Single-Channel Relay Module
Technical Specifications
| Coil Voltage | ±18V DC (Coil Activation Voltage), ±2.4V DC (Coil Drop-Out Voltage), 24V DC (Coil Nominal Voltage) |
|---|---|
| Compatibility | Arduino, AVR, PIC, ARM microcontrollers |
| Height (mm) | 21.5 |
| Item Type | Relay Module |
| Length (mm) | 58.8 |
| Max. Switching Current(A) | 30 |
| Max. Switching Voltage | 240V AC / 30V DC |
| Model | Single-Channel Relay Module |
| Model No | SLA 24VD SL A |
| Output Mode | Normally Open / Normally Closed |
| Shipping Dimensions | 7 × 5 × 4 cm |
| Shipping Weight | 0.032 kg |
| Weight (g) | 31 |
| Width (mm) | 36.1 |
