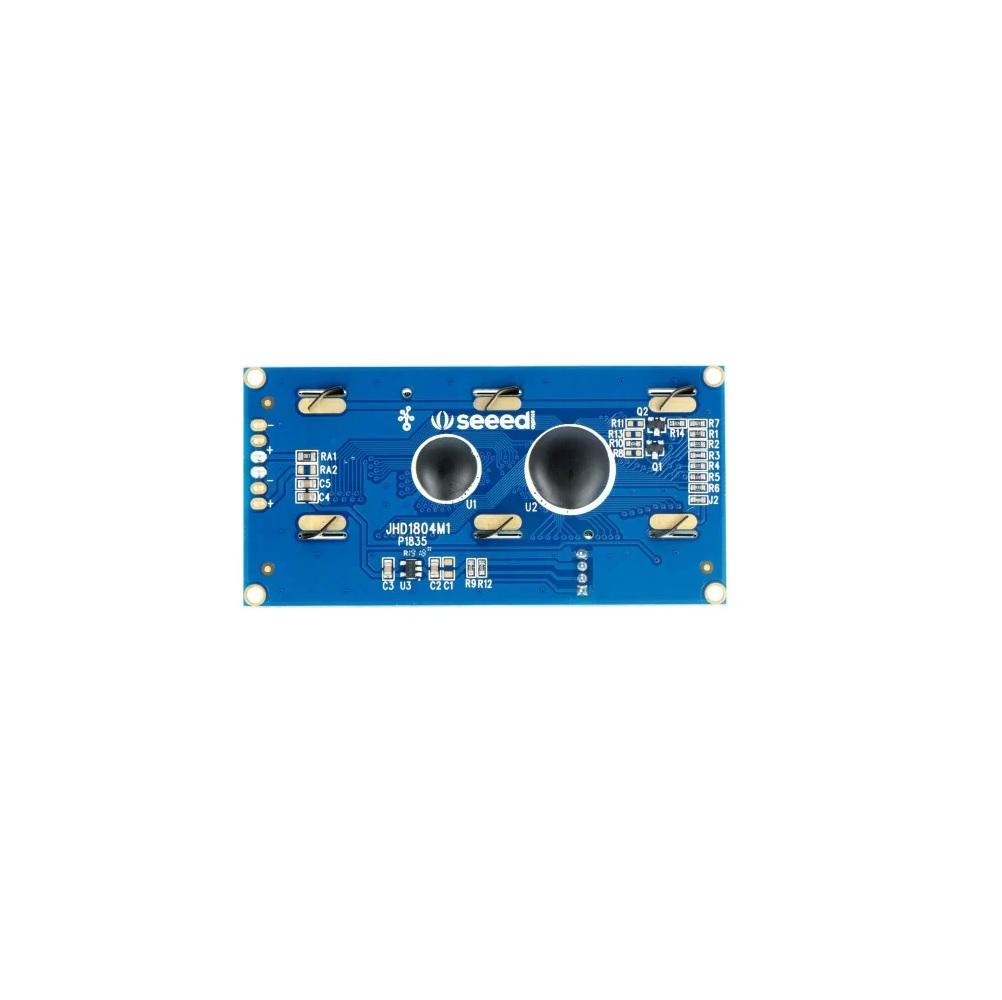

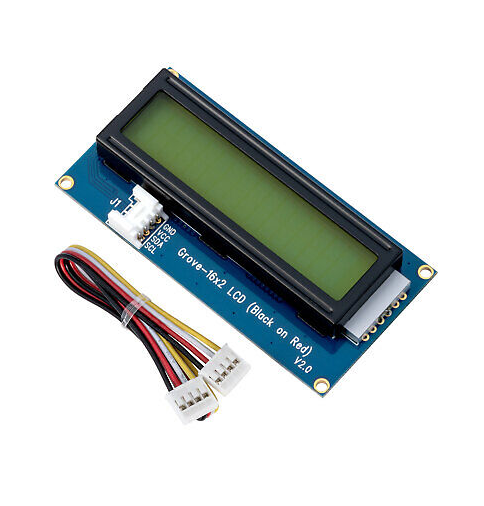

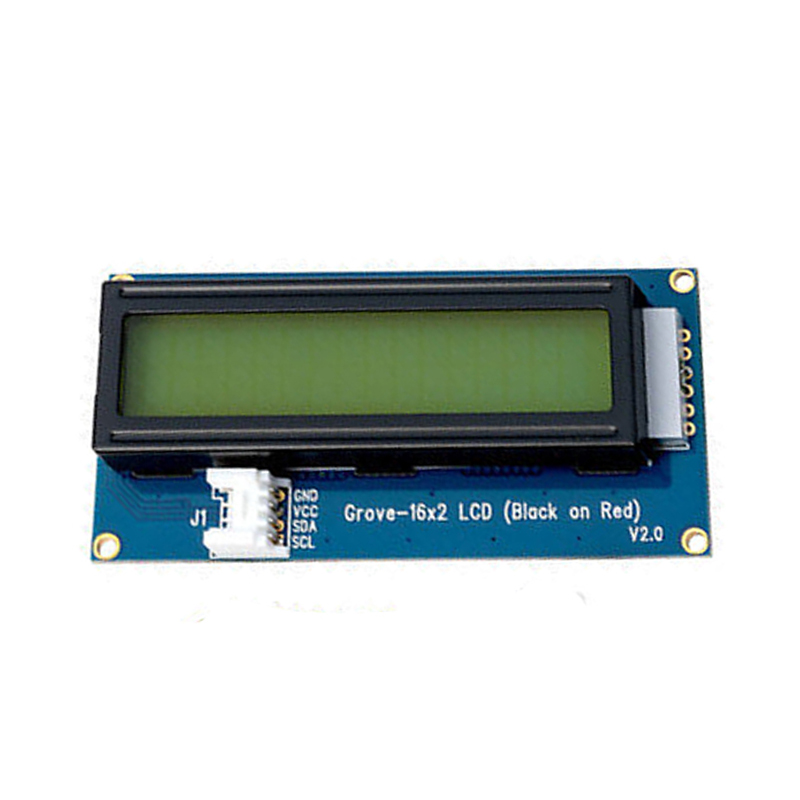

Seeed Studio Grove – 16 x 2 LCD (Black on Red)
- Model: 16 x 2 LCD
- Voltage: 3.3V/5V
- Interface: I2C
- Backlight color: Red
- Font color: Black
- Dimensions: 8 x 4 x 1mm
- Weight: 33g
SKU: Not Found
Brand: Seeed Studio
Out of stock
₹875.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Grove – 16 x 2 LCD is a perfect I2C LCD display for Arduino and Raspberry Pi with high contrast and easy deployment. 16×2 means two lines and each line has 16 columns, 32 characters in total. With the help of Grove I2C connector, only 2 signal pins and 2 power pins are needed. You don’t even need to care about how to connect these pins. Just plug it into the I2C interface on Seeeduino or Arduino/Raspberry Pi+baseshield via the Grove cable. There won’t be complicated wiring, soldering, worrying about burning the LCD caused by the wrong current limiting resistor.
Features:
- Display construction: 16 Characters * 2 Lines
- Display mode: STN
- On board MCU
- I2C-bus interface
- Support English and Japanese fonts
Packages Includes:
1 x Seeed Studio Grove – 16 x 2 LCD (Black on Red)
Technical Specifications
| Backlight Color | Red |
|---|---|
| Color | Black (Font) |
| Dimensions (mm) | 8 x 4 x 1mm |
| Interface | I2C |
| Model | SeeedStudio Grove LCD |
| Operating Voltage (VDC) | 3.3V/5V |
| Shipping Dimensions | 13 × 10 × 2 cm |
| Shipping Weight | 0.042 kg |
| Weight (g) | 33g |
