SafeConnect XT-60 Female Connector Pigtail
- Connector Type: XT60 Female
- Material of Connector: High-Temp nylon
- Length: 10 cm.
- Cable Thickness: 14AWG
- High-Quality Connector
- Designed for heavy duty
- High Power Application
SKU: Not Found
Brand: SafeConnect
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

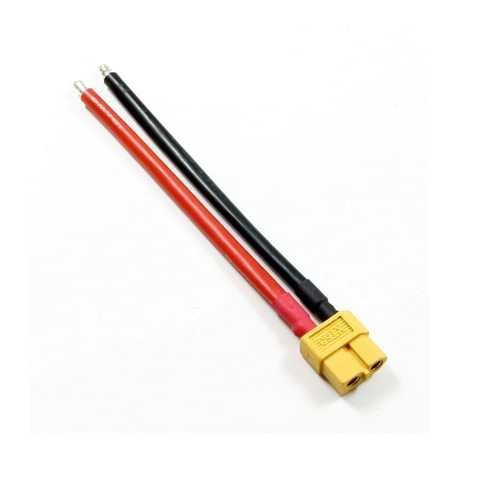

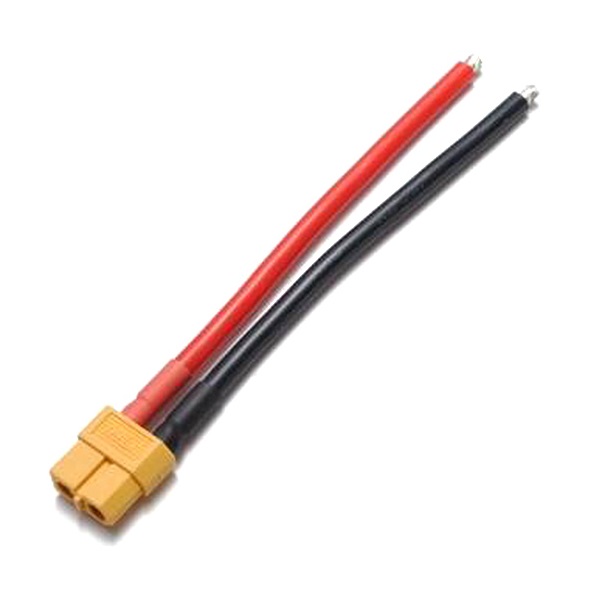

This is a SafeConnect XT-60 Female Connector Pigtail.

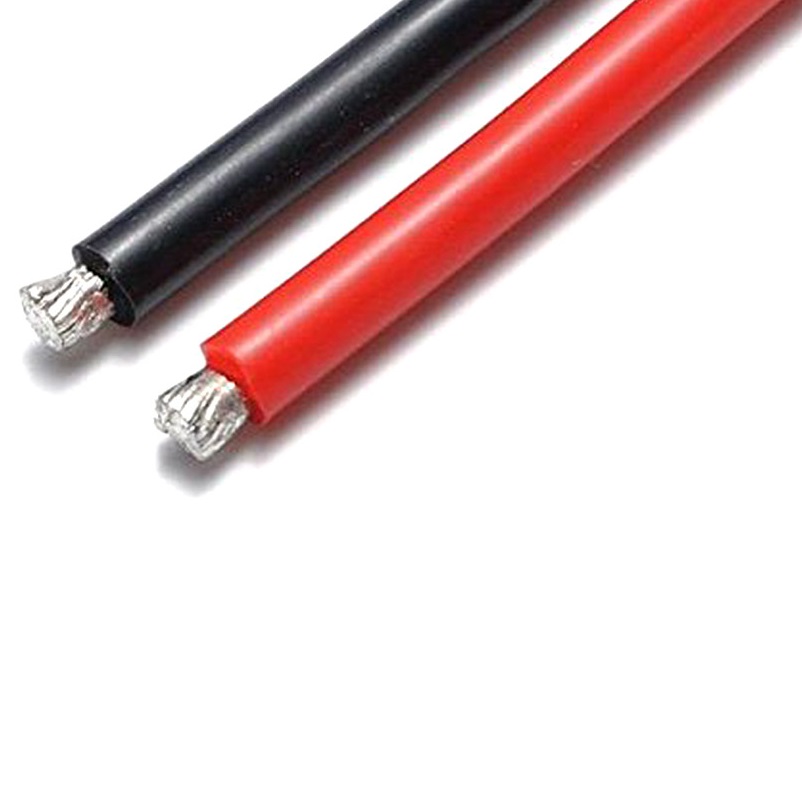

The XT60 Female with 14 AWG Silicon Wire 10cm (1pcs/bag) is useful while connecting your battery and ESC. These are widely used Li-PO battery connectors XT60 Female w/ 14AWG Silicon Wire 10cm (1pcs/bag) makes the connection between the battery and motor easier.
These are heavy duty cables, great for projects that involve bigger motors and controllers, such as our high-power motor drivers and Simple Motor Controllers. The XT60 Female with 14AWG Silicon Wire 10cm (1pcs/bag) is capable of connection with XT60 Male Connector. These connectors are made from high-temp nylon with gold-plated spring pins or sockets molded in. The shape of this generic XT60 prevents reverse polarity, and when plugged in the connection is super-solid.
The XT60 connectors are suitable for high power brushless and brushed ESC and motors which are used in RC helicopters, quadcopter, plane, and cars. They ensure high amp connections.
Note: The connector is available in two different variants (XT60 Female and XT60H-F Female), we will ship it randomly.
Features :
- Connector Type: XT60 Female
- High-Temp Nylon Material of Connector
- High-Quality Connector
- Designed for heavy-duty
- High Power Application
Package Includes :
1 x SafeConnect XT-60 Female Connector Pigtail
Technical Specifications
| Additional Specs. | Flammability Rating: UL94V-0 |
|---|---|
| Color | Connector: Yellow, Wire: Red & Black |
| Connector Type | XT60 Female |
| Contact Material | Brass |
| Contact Plating | Gold flash |
| Current Handle Capacity (A) | 60 |
| Gender | Female |
| Item Type | Battery Harness, Connector |
| Metal Connector Size (mm) | 4.5 |
| Model | XT 60 |
| No. of Contact Points | 2 |
| Operating Temperature (°C) | -20 to 120 |
| Operating Voltage (VDC) | 500 |
| Shipping Dimensions | 7 × 6 × 4 cm |
| Shipping Weight | 0.02 kg |
| Weight (g) | 18 |
| Wire Size (AWG) | 14 |
