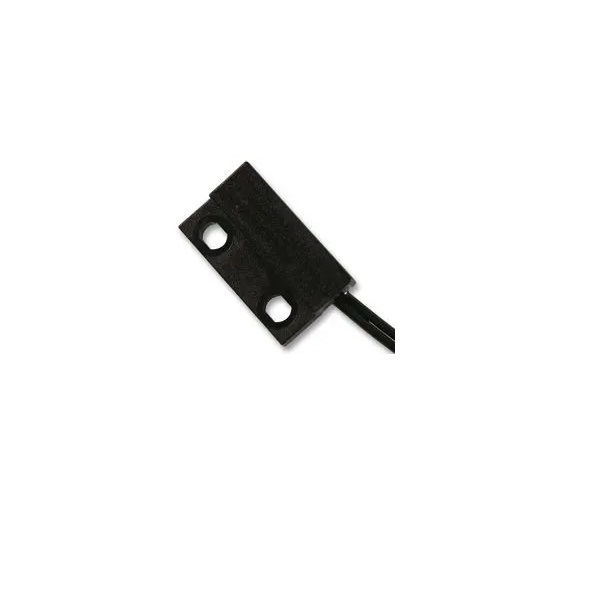

Littelfuse 59140-1-T-02-F Magnetic Sensor Flange Mount
- Product: Magnetic Sensor, Flange Mount, 2 Pins, 30 G
- The magnetically operated position sensor
- Customer-defined sensitivity option
- Choice of cable length and connector
- RoHS compliant
SKU: Not Found
Brand: Generic
Out of stock
₹443.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 59140 is a miniature flange mounting reed sensor occupying only 3.22cm² (0.500”²) board space with a choice of normally open, normally open high voltage, normally closed, or changeover contacts. Its case design enables screw or adhesive mounting and the wires exit from top right-hand side. It is also available with a left-hand exit – see 59141 Series. It is capable of switching up to 265 Vac/300 Vdc at 10VA. The 59140 functions best with the matching actuator 57140-000.
For more technical details, go through the Datasheet in the attachment section.
Features:
- The magnetically operated position sensor
- Customer-defined sensitivity option
- Choice of cable length and connector
- RoHS compliant
Package Includes:
1 x 59140-1-T-02-F Magnetic Sensor, Flange Mount, 2 Pins, 30 G
Technical Specifications
| Breakdown Voltage | 250 NO, 200 NC VDC |
|---|---|
| Contact Rating | 10 NO, 5 NC.VA/Watt max |
| Item Type | Magnetometer |
| Operating time (max.) | 1.0 NO, 3.0 NC |
| Release Time(mS) | 1.0 NO, 3.0 NC |
| Shipping Dimensions | 9 × 7 × 1 cm |
| Shipping Weight | 0.03 kg |
| Switching Current Max | 0.5 NO, 0.25 NC |
| Switching Voltage (VDC) | 200 NO, 175 NC |
