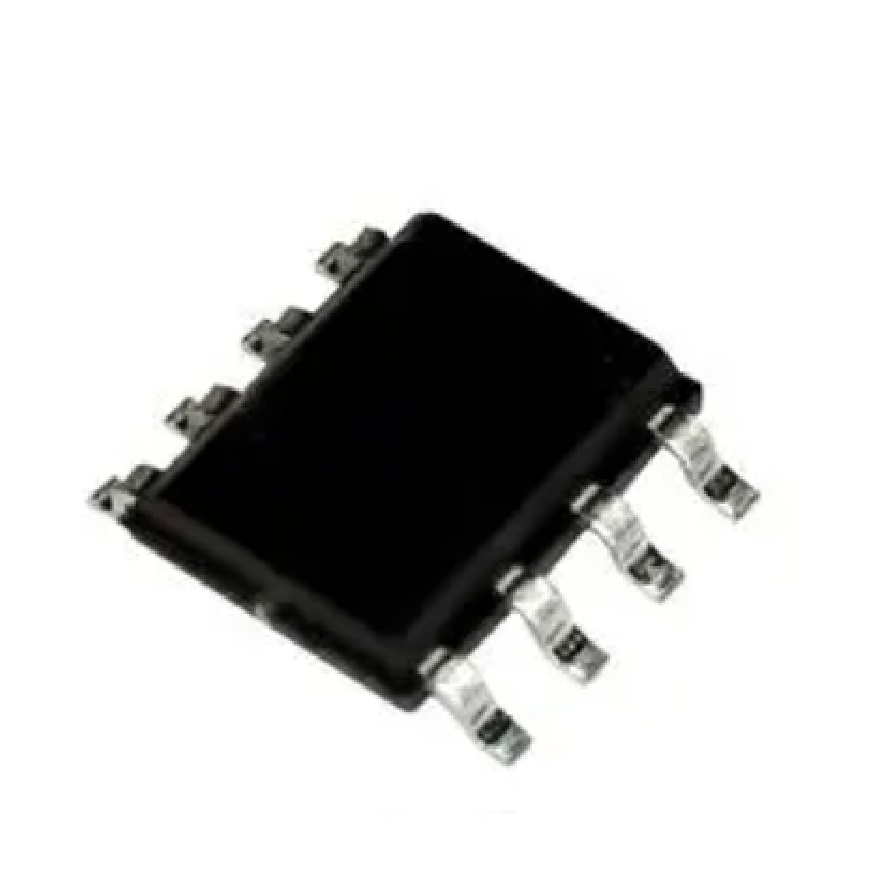

The M24M02-DWMN3TP/K by STMicroelectronics is an EEPROM with a capacity of 2 Mbit, organized as 256K x 8bit. It utilizes a Serial I2C (2-Wire) interface operating at 1 MHz. Packaged in an SOIC with 8 pins, this EEPROM offers efficient non-volatile data storage and retrieval, suitable for a wide range of applications requiring reliable memory solutions.

Features:

1. Automotive 2Mbit (256K x 8bits) serial I2C bus EEPROM with 1MHz clock in 8 pin SOIC package
2. Compatible with all I2C bus modes (1MHz, 400KHz, 100KHz)
3. 256bytes page size
4. Additional write lockable page (identification page)
5. Schmitt trigger inputs for noise filtering
6. Short write cycle time (byte write within 5ms, page write within 5ms)
7. Write cycle endurance (4 million at 25°C, 1.2million at 85°C, 100K write cycles at 125°C)
8. Data retention of 100 years at 25°C
9. 3000V ESD protection (human body model)

Package Includes:

1 x M24M02-DWMN3TP/K-STMICROELECTRONICS-EEPROM, 2 Mbit, 256K x 8bit, Serial I2C (2-Wire), 1 MHz, SOIC, 8 Pins
