The FT2232HL interface module is a high-performance USB 2.0 Hi-Speed (480Mbps) to UART/FIFO interface bridge, designed for embedded system developers who need versatile, multi-protocol connectivity. Featuring dual independent communication channels, each with its own MPSSE (Multi-Protocol Synchronous Serial Engine), the FT2232HL supports JTAG, SPI, I²C, UART, and Bit-Bang modes simultaneously. The integrated LDO regulator supplies 3.3V and 1.8V from a 5V input, making it perfect for flexible I/O designs. interface module With an embedded USB protocol engine, onboard EEPROM interface, and full driver support for Windows, Linux, and macOS, this chip enables fast integration and reliable USB communication in both industrial and consumer applications.

Features:

1. Dual-channel USB to UART/FIFO interface
2. Supports JTAG, SPI, I²C, UART, and FT1248 simultaneously
3. USB 2.0 Hi-Speed (480 Mbps) data rate
4. Built-in MPSSE for simplified synchronous serial protocols
5. On-chip LDO regulator (3.3V/1.8V) with 5V input tolerance
6. No firmware programming required – USB stack handled internally
7. EEPROM interface for custom configurations and descriptors
8. Compatible with Windows, Linux, and macOS (VCP & D2XX drivers)

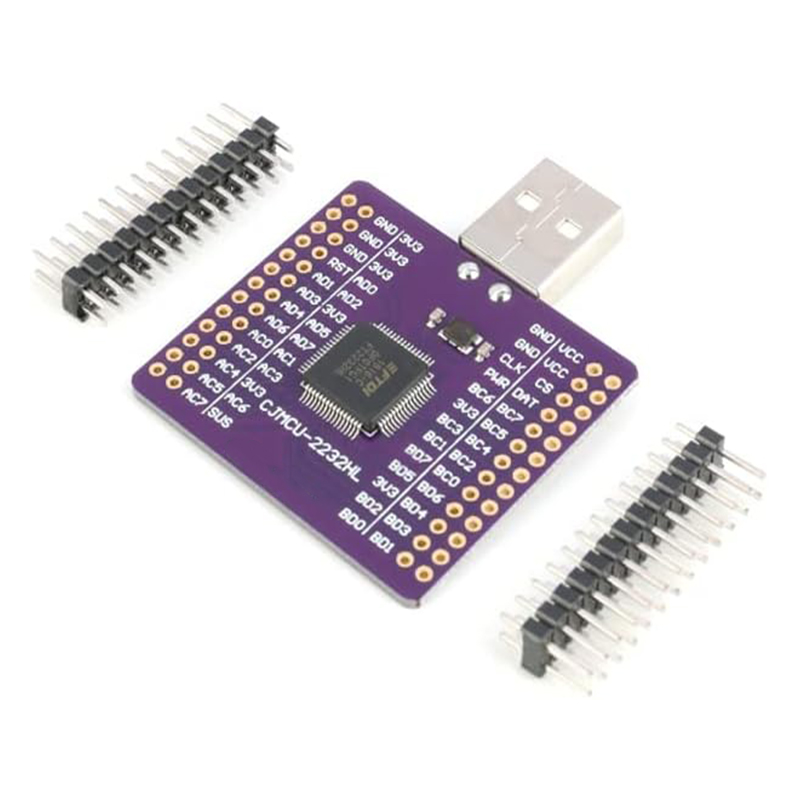

Package Includes:

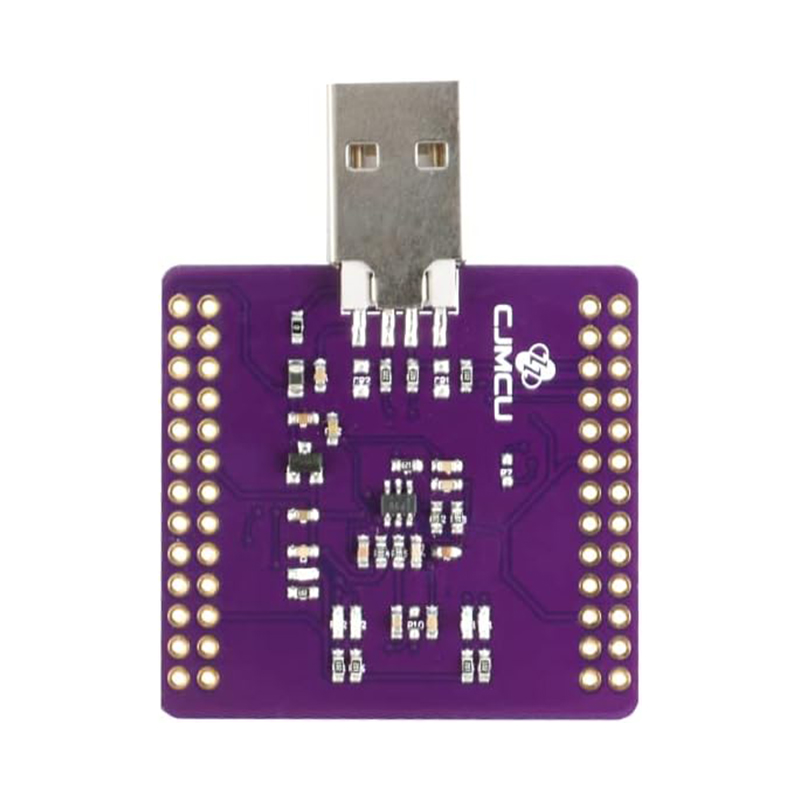

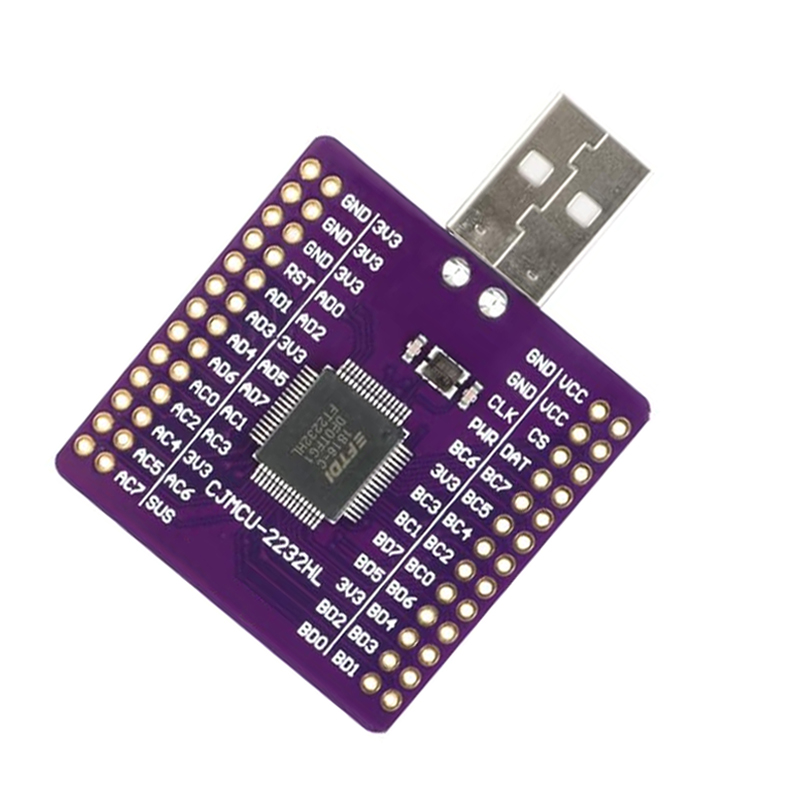

1 x FT2232HL module proxy

2 x Dual Row Pin Header
