(901–1700 KV) Long-Range & Endurance Drone Motors

Emax ECO III Series 2207 1700KV Brushless Motor

  • Motor Type : Brushless Motor
  • Motor KV (RPM/V) : 1700
  • Compatible LiPO Batteries : 3S to 6S
  • Shaft Diameter (mm) : 5
  • Maximum Thrust (gm) : 1400 to 1600

SKU: Not Found

Brand: Emax

Out of stock
₹1600.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
Currently Unavailable
  • 100% Secure Checkout
  • 7-Day Easy Returns
  • Authentic & Quality Checked
  • 24/7 Priority Support
Secure Payment

Product Description

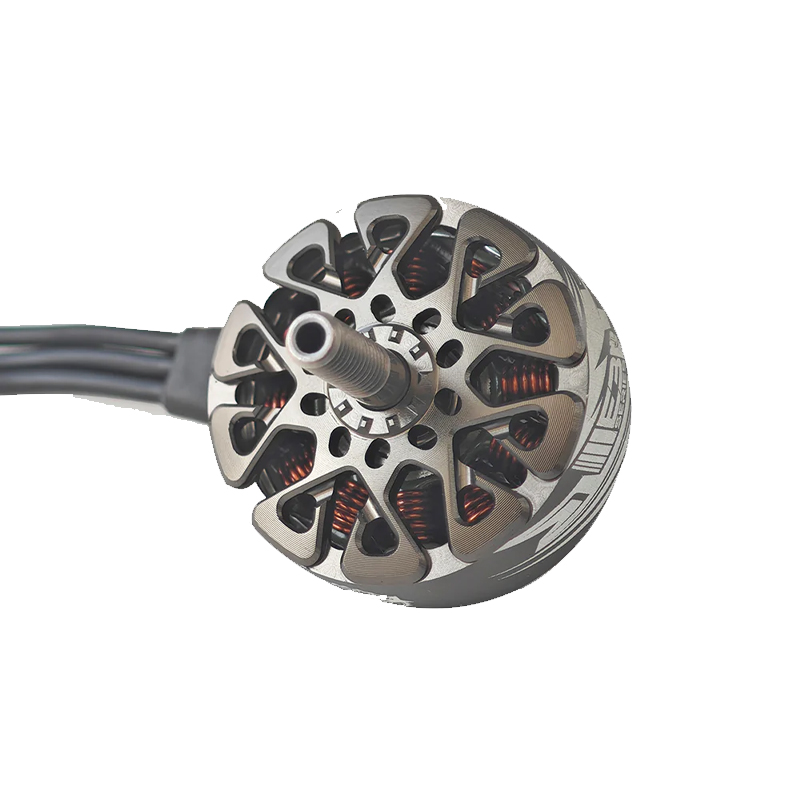

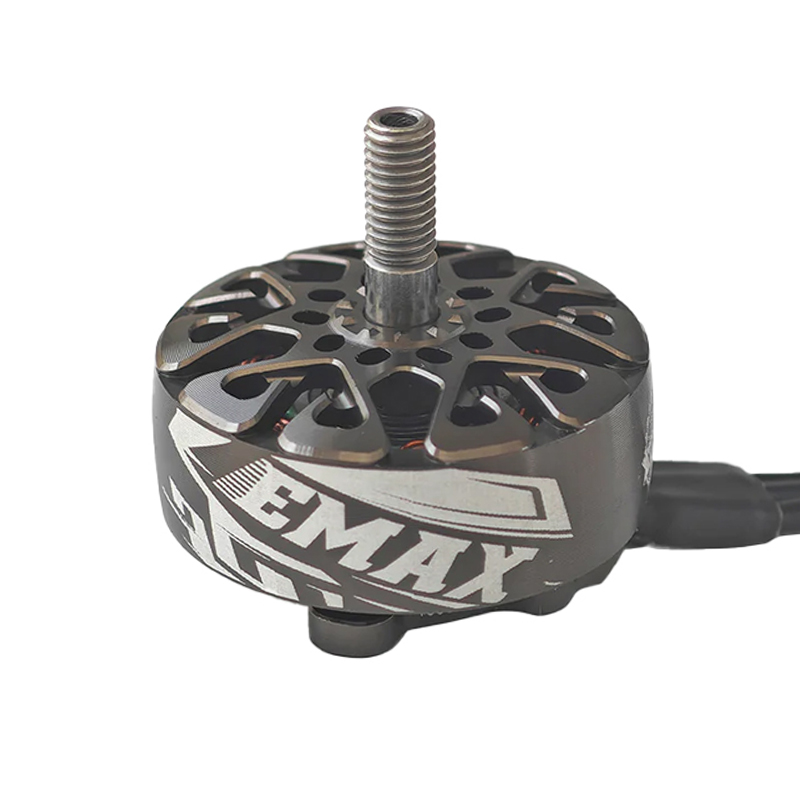

Introducing the Emax ECO III Series 2207 1700KV Brushless Motor—a leap forward in FPV motor technology. Built for racers, freestyle pilots, and cinematic creators, this motor delivers peak performance with unmatched durability. Its single-strand winding reduces resistance and boosts heat dissipation, ensuring your flights stay cool and powerful. Crafted from aircraft-grade 7075 aluminum and featuring a hardened steel shaft, it’s made to survive harsh impacts and aggressive flying. With N52SH arc magnets and G1 bearings, you get precise control, high torque, and extended motor life. The 2207 size is optimized for 5” builds and supports up to 8S power for relentless thrust. Whether racing or performing freestyle stunts, the ECO III Series ensures consistent, reliable output for every flight.


Features:

  1. Aircraft-grade 7075 aluminum construction
  2. Single-strand winding for better efficiency and cooling
  3. High-temperature N52SH arc magnets for stronger torque
  4. Hardened steel shaft for superior durability
  5. Precision G1 bearings for smooth, long-lasting performance
  6. Optimized for 5” freestyle and racing builds
  7. Supports up to 8S LiPo batteries
  8. Affordable performance without compromise

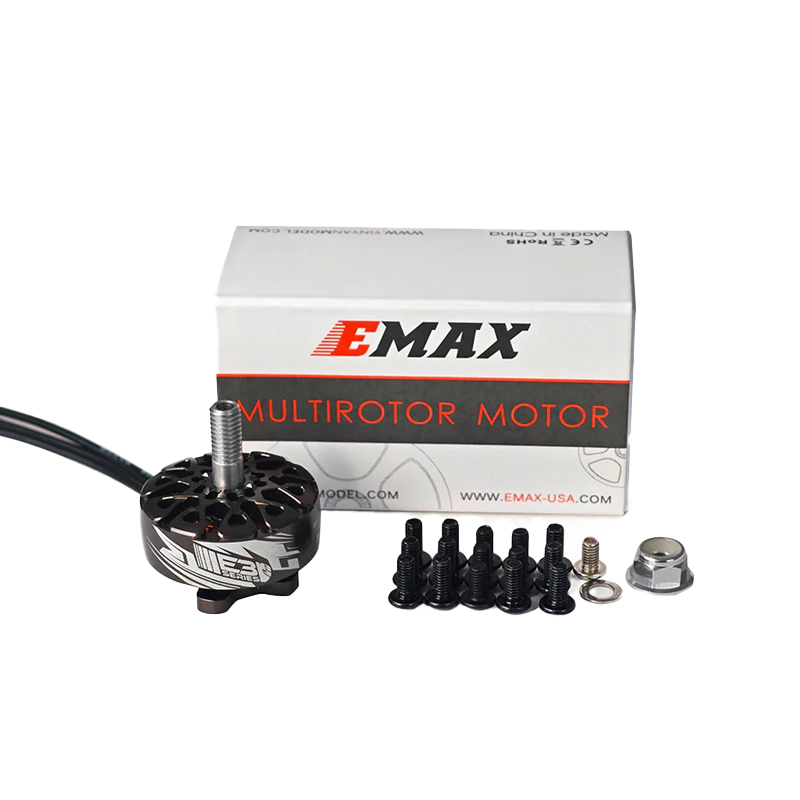

Package Includes:

1 x Emax ECO III Series 2207 1700KV Brushless Motor

1 x Accessory Set

Technical Specifications

Compatible LiPO Batteries3S to 6S
Framework2207
Height (mm)33
Max. Efficiency Current (A)30 to 35
Max. Power (W)900 to 1100
Maximum Thrust (gm)1400 to 1600
Motor KV (RPM/V)1700
Motor TypeBrushless Motor
No of poles14
No-load current (A)1.2 to 1.5
No-Load Current (mA)1200 to 1500
Operating Temperature (°C)-20 to 120
Shaft Diameter (mm)5
Shipping Dimensions7 × 4 × 3.5 cm
Shipping Weight0.055 kg
Weight (g)33
