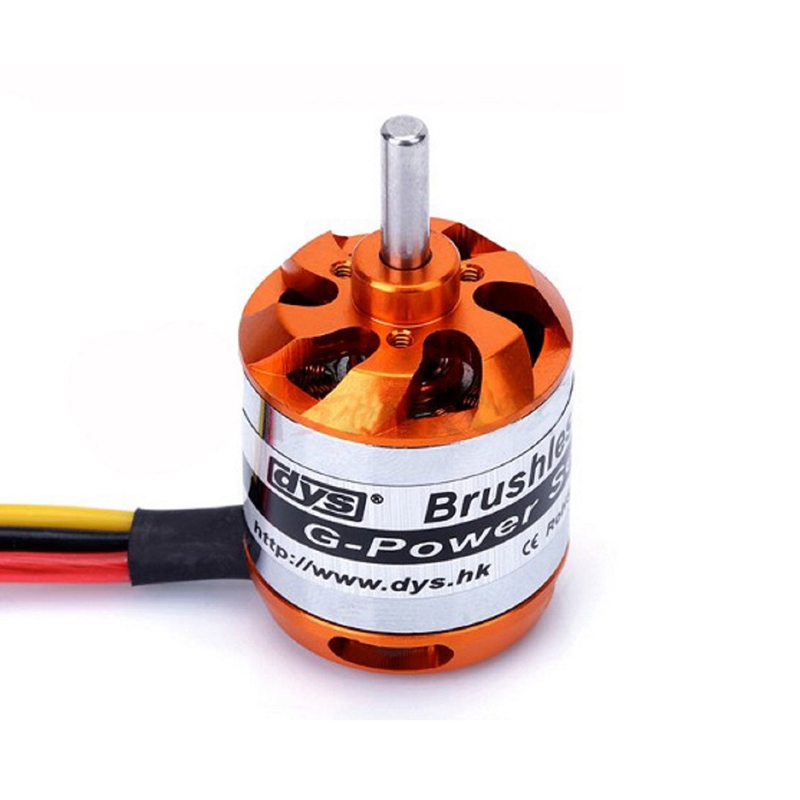

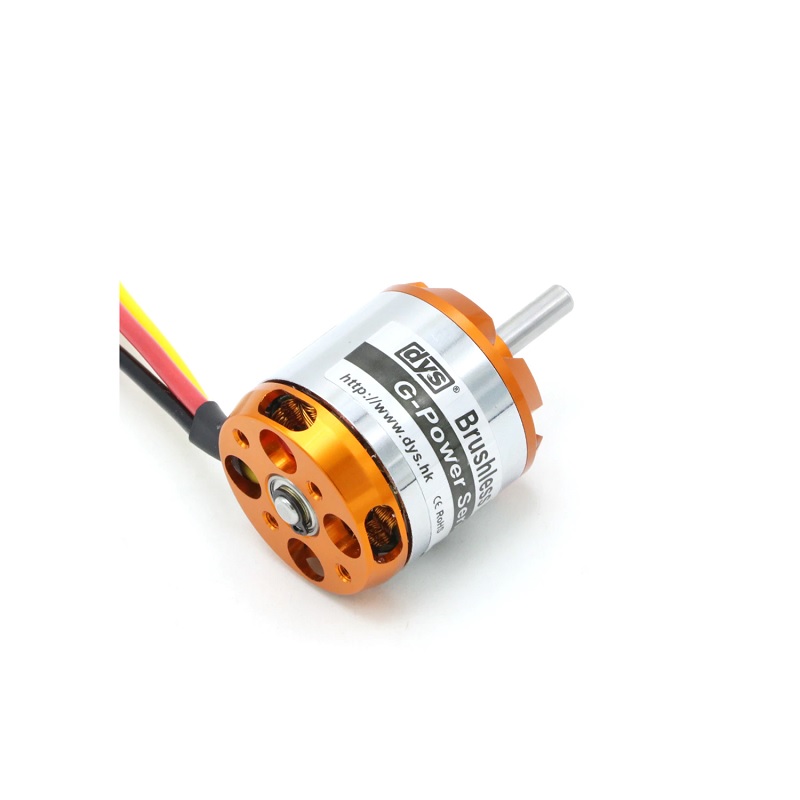

DYS D3542-6 1000kv BLDC Motor
- Model: D3542-6
- Voltage: 2-4Li-Po
- Kv: 1000 rpm/v
- Shaft Diameter: 5mm
- Shaft Length: 15mm
- Max Watts: 555 W
- ESC: 70A
SKU: Not Found
Brand: Dys
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This DYS D3542 1000kv BLDC Motor is specifically made to power Quadcopters and Multirotors. It is a 1000 kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 4 propellers.
The motor comes with a 3mm banana male connector attached which can be directly connected with 70A ESC without any soldering requirement
With a 2-4S LiPo battery, 70A ESC these motors provide up to 1260 gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 5 kg thrust! Use this to build powerful and efficient quadcopters.
This is a low price and excellent quality Brushless Motor. It comes with Bullet Connectors already soldered
Application:
- Drones
- Quadcopters
- Multirotors
- RC Airplanes
- UAV
Features:
- The steel design is capable of withstanding competitive conditions.
- Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
- Compact size.
- Offers great performance and value for money.
- Smooth throttle response for best RC experience.
Package Includes:
1 x DYS D3542-6 1000kv BLDC Motor
Technical Specifications
| Compatible Prop (inch) | 12 |
|---|---|
| Height (mm) | 58 |
| Max. Power (W) | 555 |
| Motor KV (RPM/V) | 1000 |
| Required ESC (A) | 70 |
| Shaft Diameter (mm) | 5 |
| Shipping Dimensions | 8 × 5 × 4 cm |
| Shipping Weight | 0.168 kg |
| Weight (g) | 133 |
| Width (mm) | 35 |
