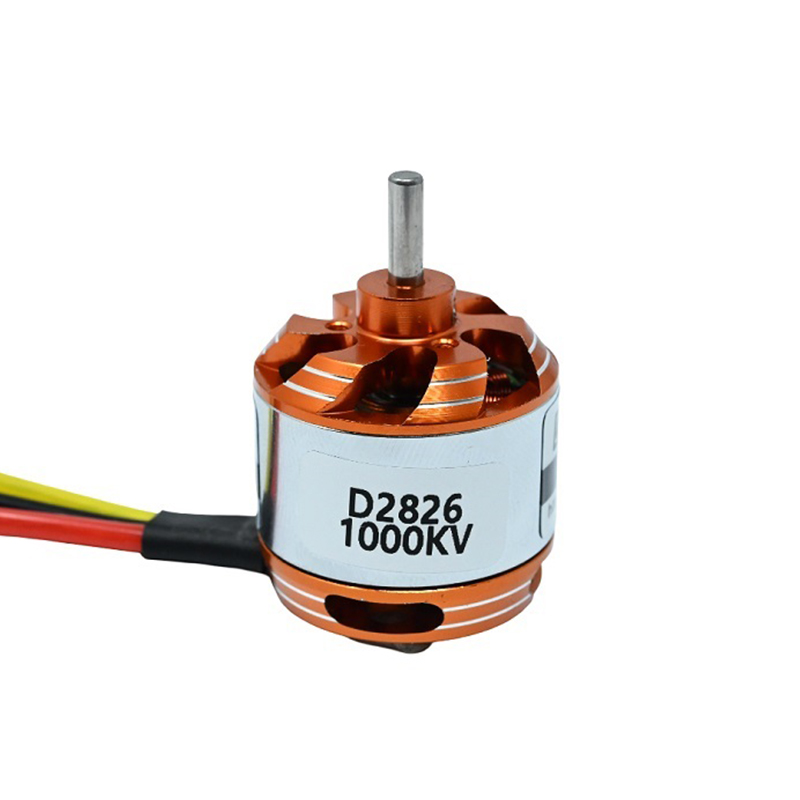

Dys D2826-13 1000KV Bldc Motor
- Model: D2826-13
- Voltage: 7.2v~11.1v / 2~3s Lipo
- Kv: 1000 rpm/v
- Shaft Diameter: 3mm
- Shaft Length: 10mm
- Max Watts: 150W
- ESC: 40A
- Screw Size: M3
SKU: Not Found
Brand: Dys
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This Dys D2826-13 1000KV Bldc Motor specifically made to power Quadcopters and Multirotors. It is a 1000kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 7 propellers.
The motor comes with 3mm banana male connector attached which can be directly connected with 40A ESC without any soldering requirement
With a 3S LiPo battery, 40A ESC, and high efficiency 10″ propellers, these motors provide up to 660gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 3.84 kg thrust! Use this to build powerful and efficient quadcopters.
This is a low price and excellent quality Brushless Motor. It comes with Bullet Connectors already soldered.
Applications:
- Drones
- Quad-copters
- Multi-rotors
- RC Airplanes
- UAV
Features:
- The steel design is capable of withstanding competitive conditions.
- Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
- Compact size.
- Offers great performance and value for money.
- Smooth throttle response for best RC experience.

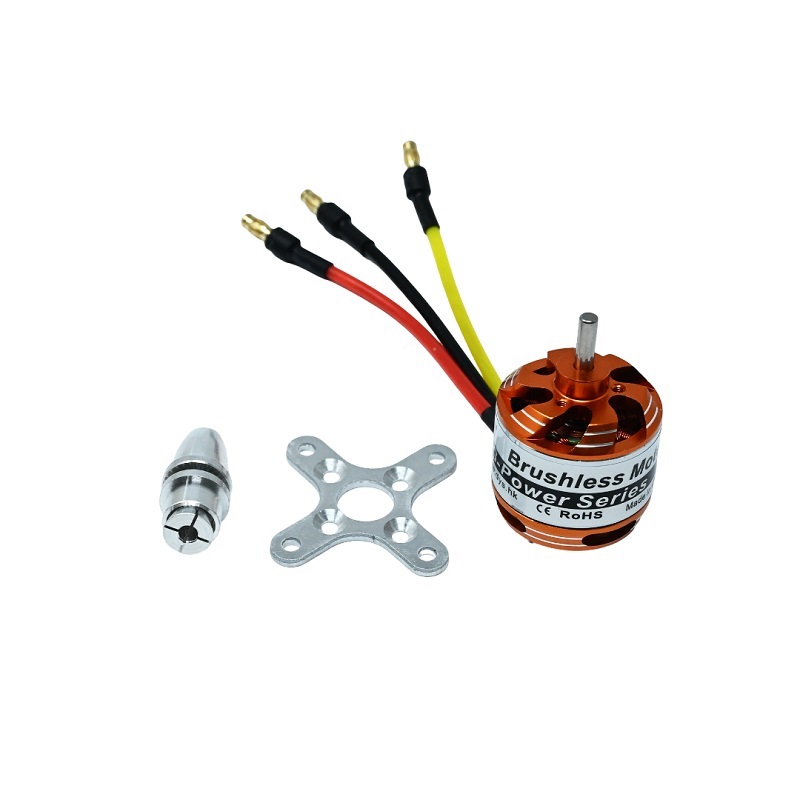

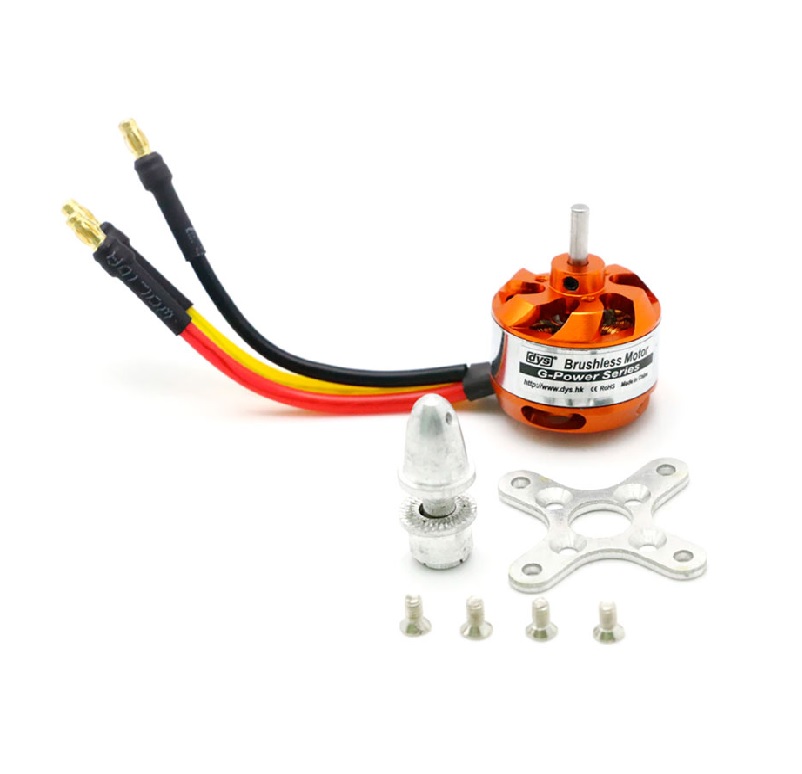

Packages Includes:
1 x DYS D2826 1000KV Outrunner Brushless Drone Motor
1 x Prop Adapter
A Motor Holder (X-type) and set of screws
Technical Specifications
| Brushless ESC(A) | 40A |
|---|---|
| Max. Power (W) | 150W |
| Model Name | DYS D2826-13 |
| Motor KV (RPM/V) | 1000 |
| Motor Weight (g) | 54g |
| Pull Force | 660g |
| Rated Voltage (Lipo) | 7.2v~11.1v / 2~3s Lipo |
| Screw Size | M3 |
| Shaft Diameter (mm) | 3mm |
| Shaft Length (mm) | 10mm |
| Shipping Dimensions | 11 × 6 × 3 cm |
| Shipping Weight | 0.07 kg |
