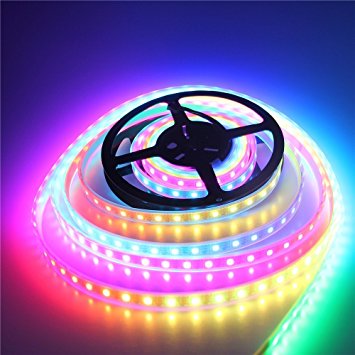

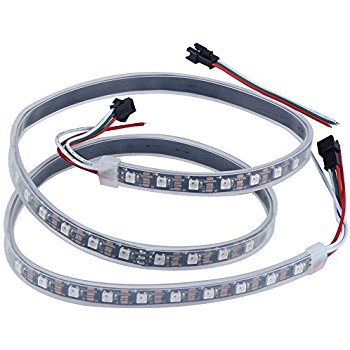

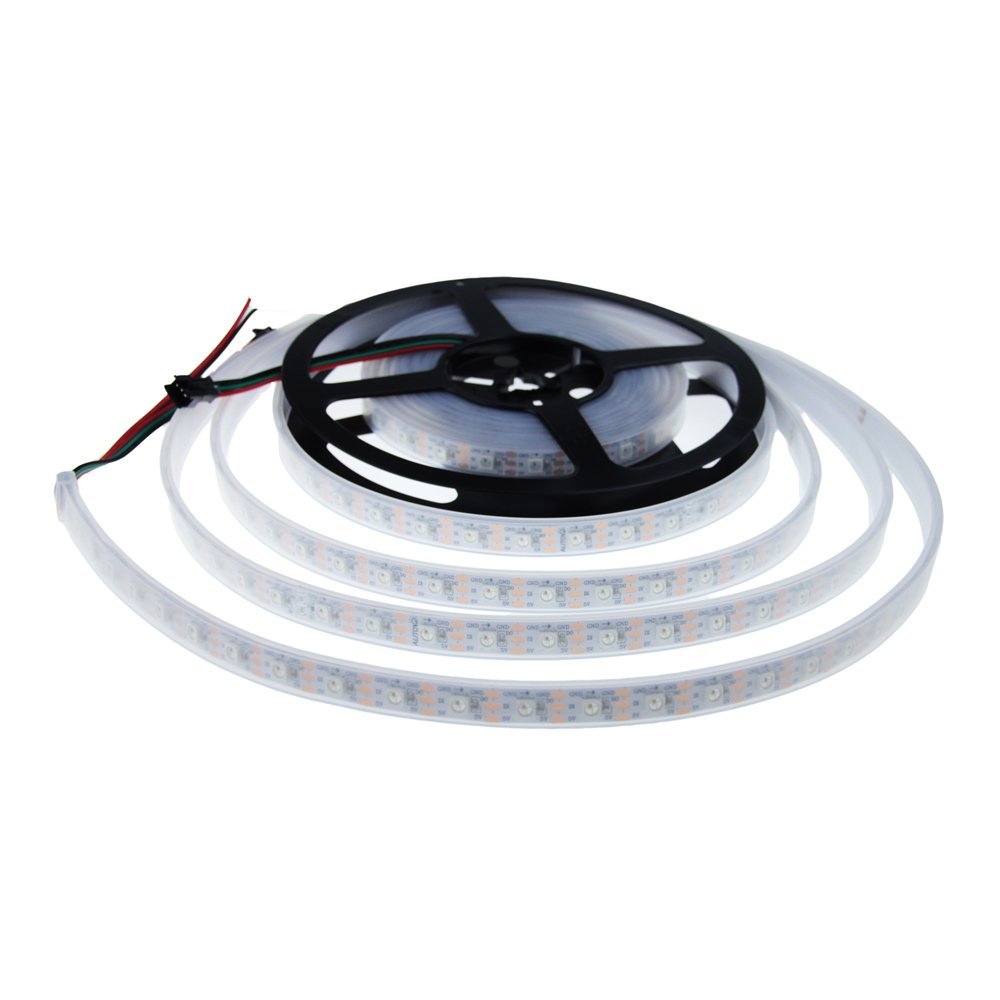

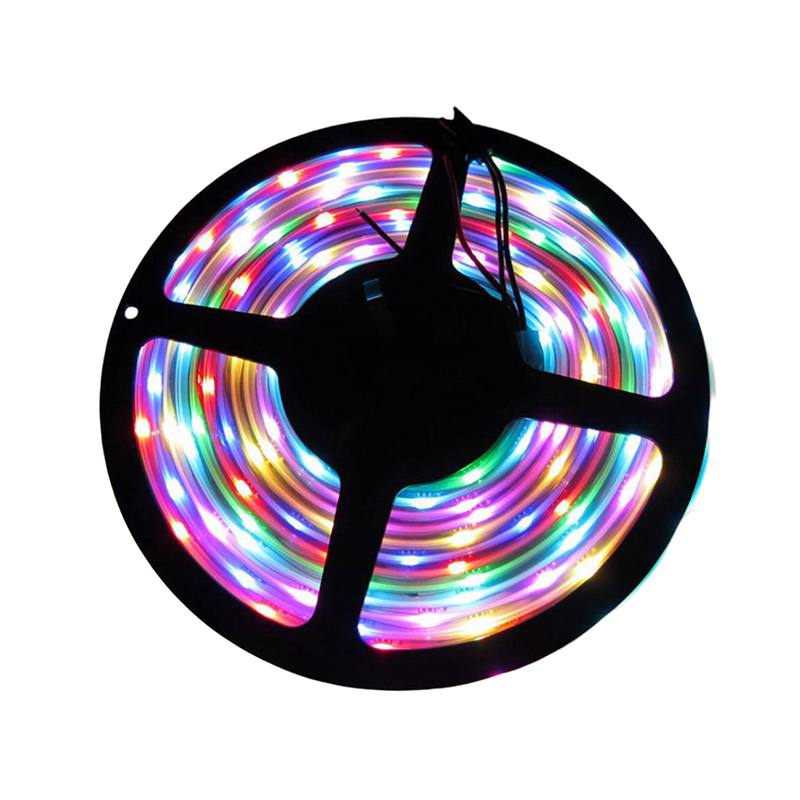

WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m

  • 5m total length.
  • 60 LEDs/m.
  • 24-bit color control (8-bit PWM per channel).
  • 16.8 million colors per pixel.
  • The one-wire digital control interface.
  • Each RGB LED draws approximately 50 mA at 5 V with red, green, and blue at full brightness.
  • Waterproof.

SKU: Not Found

Brand: Unknown Brand

Out of stock
₹2852.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
Currently Unavailable
  • 100% Secure Checkout
  • 7-Day Easy Returns
  • Authentic & Quality Checked
  • 24/7 Priority Support
Secure Payment

Product Description

The WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m is extremely flexible, easy to use and each LED of the strip can be controlled separately by using Arduino Board or basically by using a microcontroller.

Each LED has been equipped with an integrated driver that allows you to control the color and brightness of each LED independently.

This IP67 protection grade (i.e Fully Waterproof) WS2812B SMD LED Strip has 60 LEDs/Meter, with an overall length of 5 meters. This can be operated on a 5V supply. Also, it is flexible. A RGB LED strip is an easy way to add complex lighting effects to a project.

The combined LED/driver IC on these strips is the extremely compact WS2812B (essentially an improved WS2811 LED driver integrated directly into a 5050 RGB LED), which enables higher LED densities.

WS2812B uses a specialized one-wire control interface and requires strict timing.


Features :

  1. 60 LEDs/m.
  2. Protection Grade: IP67
  3. 24-bit color control (8-bit PWM per channel).
  4. 16.8 million colors per pixel.
  5. One-wire digital control interface.
  6. Each RGB LED draws approximately 50 mA at 5 V with red, green, and blue at full brightness.

Package Includes :

1 x WS2812B 5V Addressable RGB Waterproof LED Strip – 5m

Technical Specifications

ColorWhite
Item TypeLED Strip
Max. Power (W)90
Operating Temperature (°C)-25 to +60
Protection StandardIP67
Shipping Dimensions20 × 20 × 1 cm
Shipping Weight0.375 kg
Storage Temperature (°C)-40 to 80
Strip Length (meter)5
Thickness (mm)4.6
Waterproof RatingYes
Weight (g)20
Width (mm)12
