The STM32G030x6/x8 mainstream microcontrollers are based on high-performance Arm® Cortex®-M0+ 32-bit RISC core operating at up to 64 MHz frequency. Offering a high level of integration, they are suitable for a wide range of applications in consumer, industrial and appliance domains and ready for the Internet of Things (IoT) solutions. The devices incorporate a memory protection unit (MPU), high-speed embedded memories (8 Kbytes of SRAM and up to 64 Kbytes of Flash program memory with read protection, write protection), DMA, an extensive range of system functions, enhanced I/Os, and peripherals. The devices offer standard communication interfaces (two I2Cs, two SPIs / one I2S, and two USARTs), one 12-bit ADC (2.5 MSps) with up to 19 channels, a low-power RTC, an advanced control PWM timer, four general-purpose 16-bit timers, two watchdog timers, and a SysTick timer. The devices operate within ambient temperatures from -40 to 85°C and with supply voltages from 2.0 V to 3.6 V. Optimized dynamic consumption combined with a comprehensive set of power-saving modes allows the design of low-power applications. VBAT direct battery input allows keeping RTC and backup registers powered.

Features:

1. Runs at frequencies up to 64 MHz for efficient processing.
2. Operates reliably in temperatures ranging from -40°C to 85°C.
3. Up to 64 Kbytes of Flash memory with protection.
   8 Kbytes of SRAM with hardware parity check.
4. Supports various low-power modes (Sleep, Stop, Standby).
   Includes Power-on/Power-down reset (POR/PDR) functionality.
5. Multiple clock sources including crystal oscillators and internal RC oscillators with calibration.
6. Up to 44 fast I/Os, many of which are 5 V-tolerant.
   All I/Os mappable on external interrupt vectors.
7. 5-channel DMA controller for efficient data transfers.
   12-bit ADC with hardware oversampling, supporting up to 16 external channels.
8. 8 timers including specialized ones for motor control.
   Calendar RTC with alarm and periodic wakeup capabilities.
9. Two I2C-bus interfaces supporting Fast-mode Plus (1 Mbit/s) with extra current sink.
   Multiple USARTs with SPI, ISO7816, LIN, and IrDA capabilities.
   High-speed SPIs (up to 32 Mbit/s) with programmable bitframe.
10. Serial wire debug (SWD) for streamlined development and debugging.
11. ECOPACK 2 compliant packaging for environmental sustainability.

Package Includes:

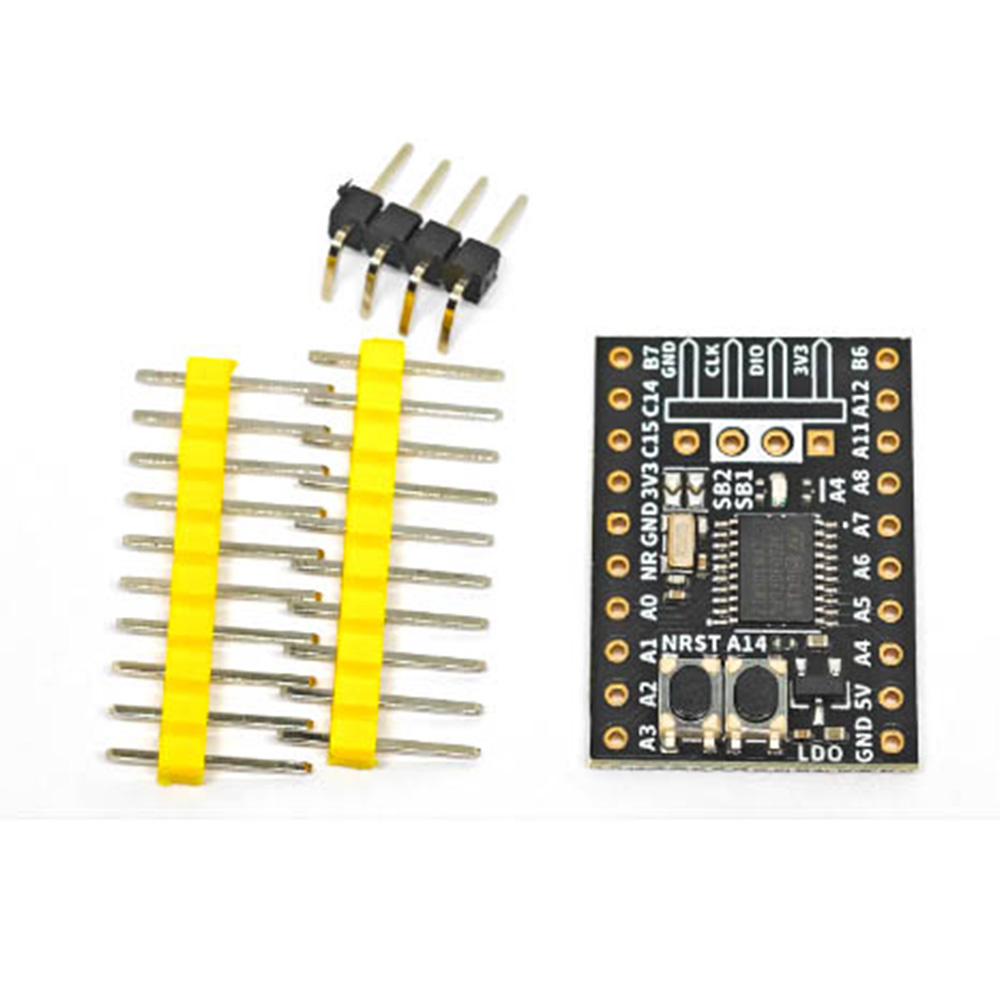

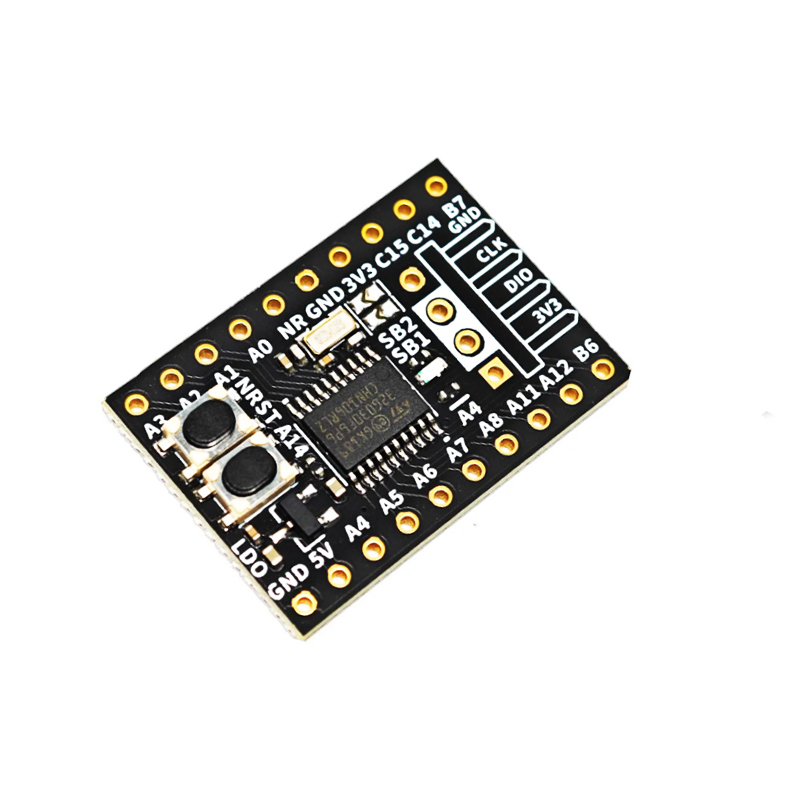

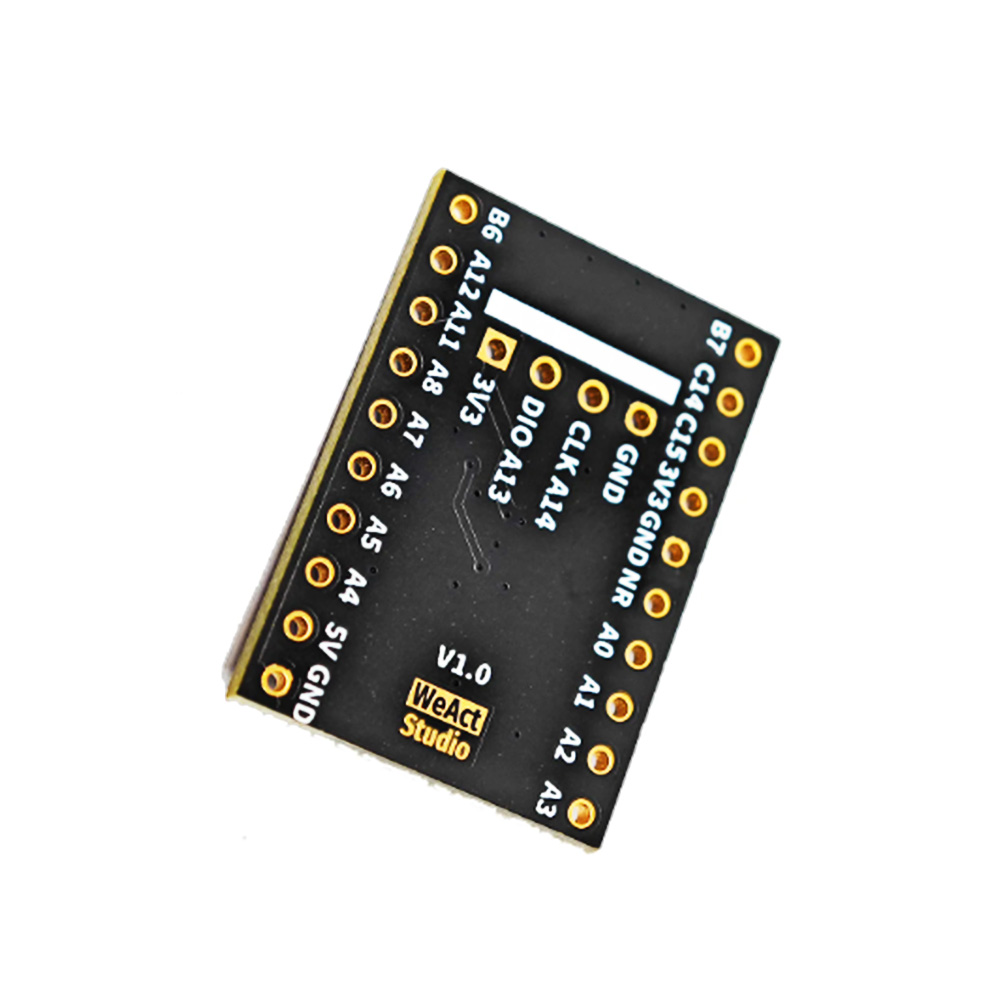

1 x WeAct Studio STM32G030F6P6 Core Demo Board
