Waveshare WAVE ROVER Flexible And Expandable 4WD Mobile Robot Chassis, Full Metal Body
- Chassis height: 33.70mm
- OLED screen: 0.91inch
- Tire width 42.50mm
- Running speed: 1.25m/s
- Tire diameter: 80mm
- Number of driving wheels: 4
SKU: Not Found
Brand: WAVESHARE
Out of stock
₹10031.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

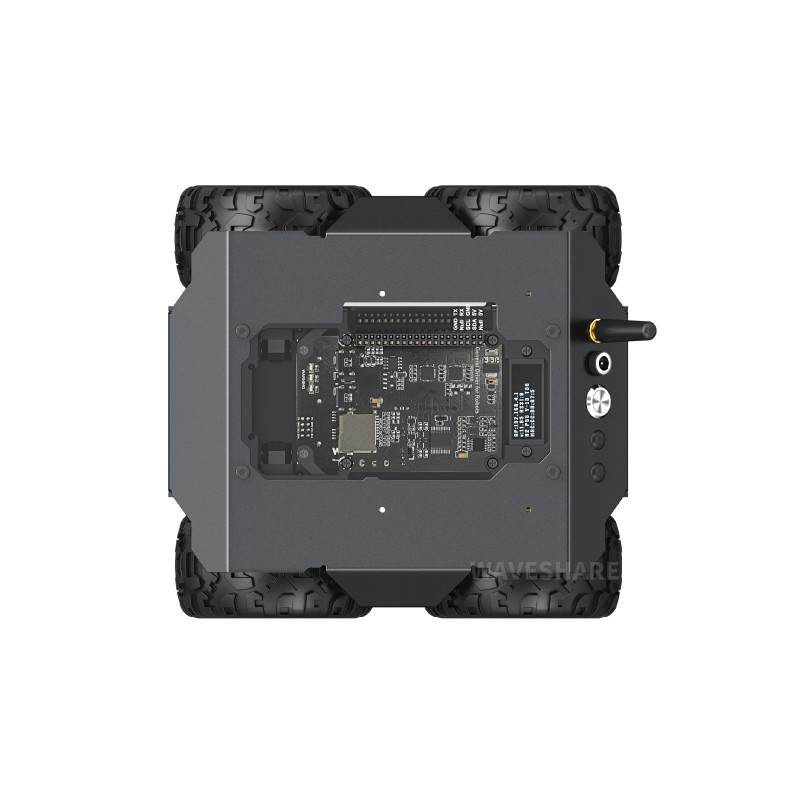

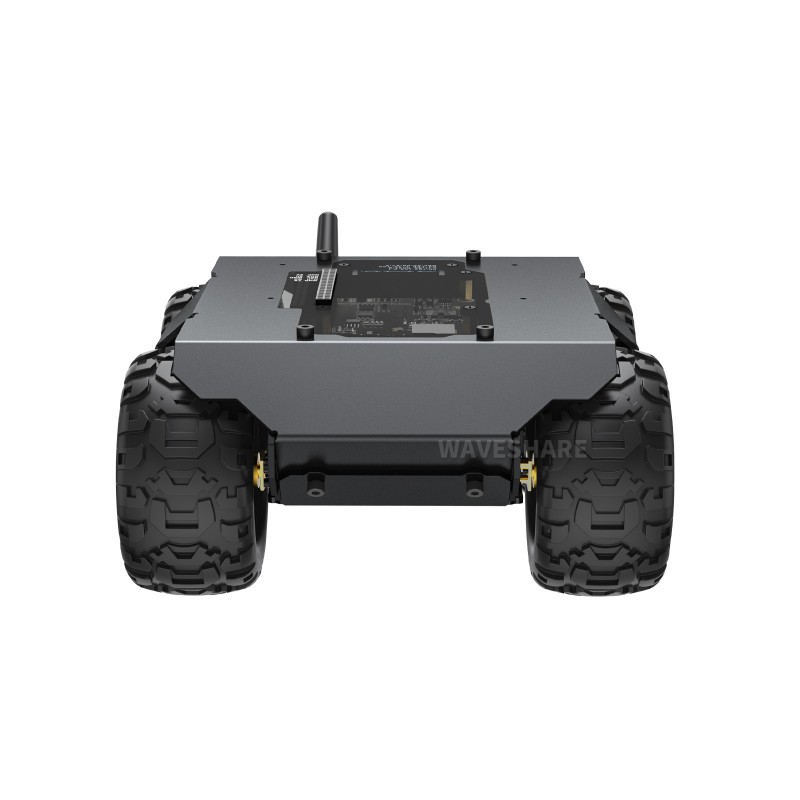

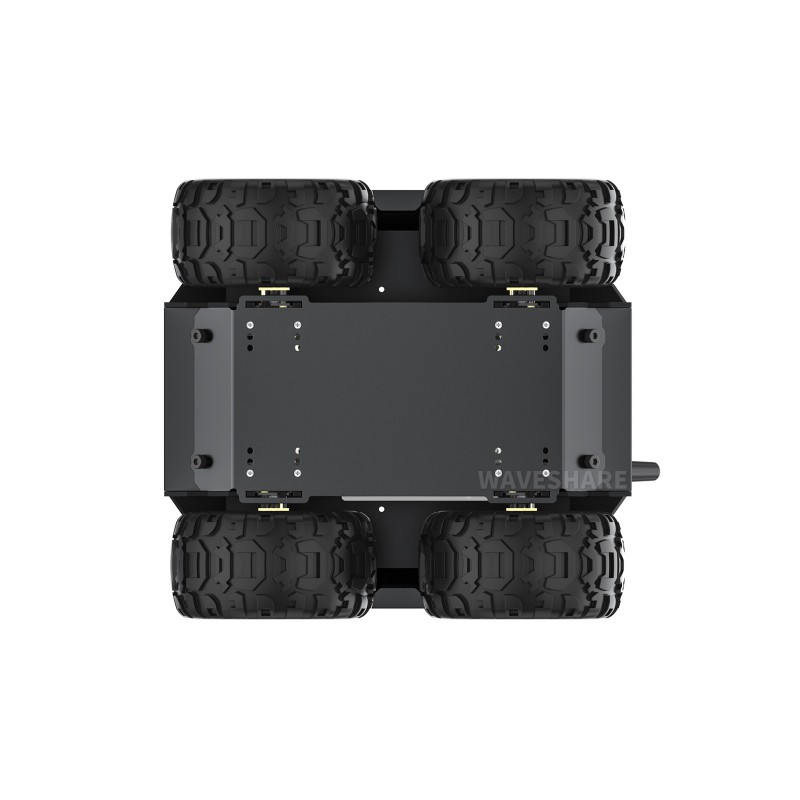

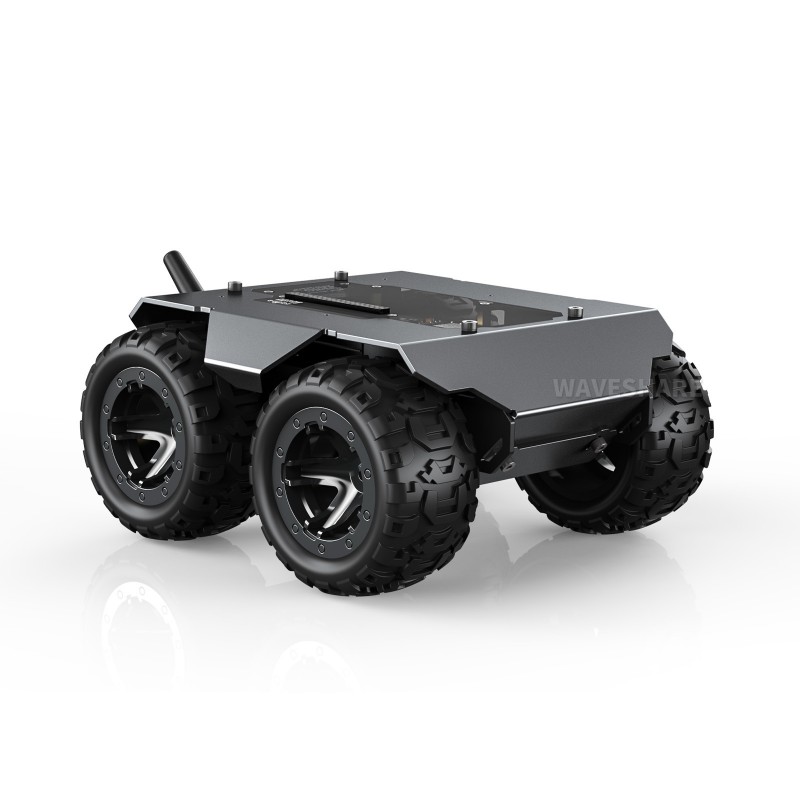

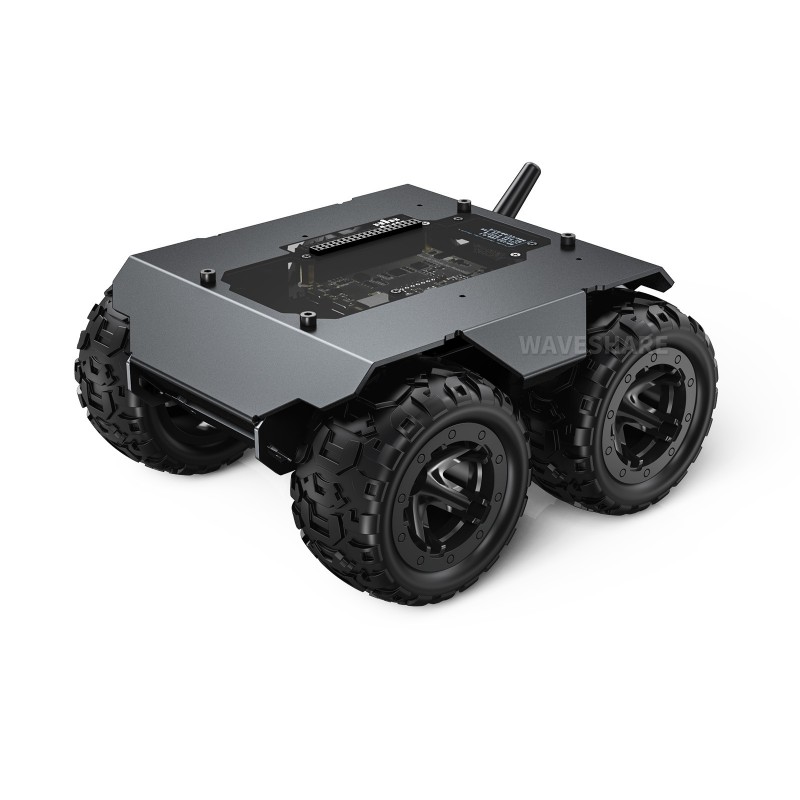

WAVE ROVER Flexible And Expandable 4WD Mobile Robot Chassis, Full Metal Body, Multiple Hosts Support, With Onboard ESP32 Module
Features:
- The Wave Rover is a full metal body 4WD mobile robot chassis
- Superb off-road crossing ability and shock-absorbing performance
- It supports multiple host computers (Raspberry Pi, Jetson Nano, Jetson Orin Nano, etc)
- The host computer can communicate with the ESP32 slave computer through the serial port
Useful Link:
https://www.waveshare.com/wiki/WAVE_ROVER
Package Includes:
1 x Waveshare WAVE ROVER Flexible And Expandable 4WD Mobile Robot Chassis, Full Metal Body
Technical Specifications
| Additional Specs. | Climbing ability: 22° |
|---|---|
| Battery support | 18650 Lithium battery × 3 (NOT Included) |
| Body Material | 2mm (thickness) 5052 Aluminum Alloy |
| Chassis height | 33.70mm |
| Dimensions (L x W x H) mm | 194×168×100mm |
| Item Type | Accessory |
| Minimum turning radius | 0m (In-situ Rotation) |
| Model | Robot Chassis |
| Motor | N20 12V 200RPM × 4 |
| Motor power | 1.5W × 4 |
| No. of Driving Wheels | 4 |
| Remote control function | WIFI AP/STA |
| Running speed | 1.25m/s |
| Shipping Dimensions | 25 × 22 × 13 cm |
| Shipping Weight | 1.109 kg |
| Tire material | Nylon wheel hub, rubber tire |
| Tire width | 42.50mm |
| Upper surface area | 17551mm2 |
| Vertical obstacle ability | 40mm |
