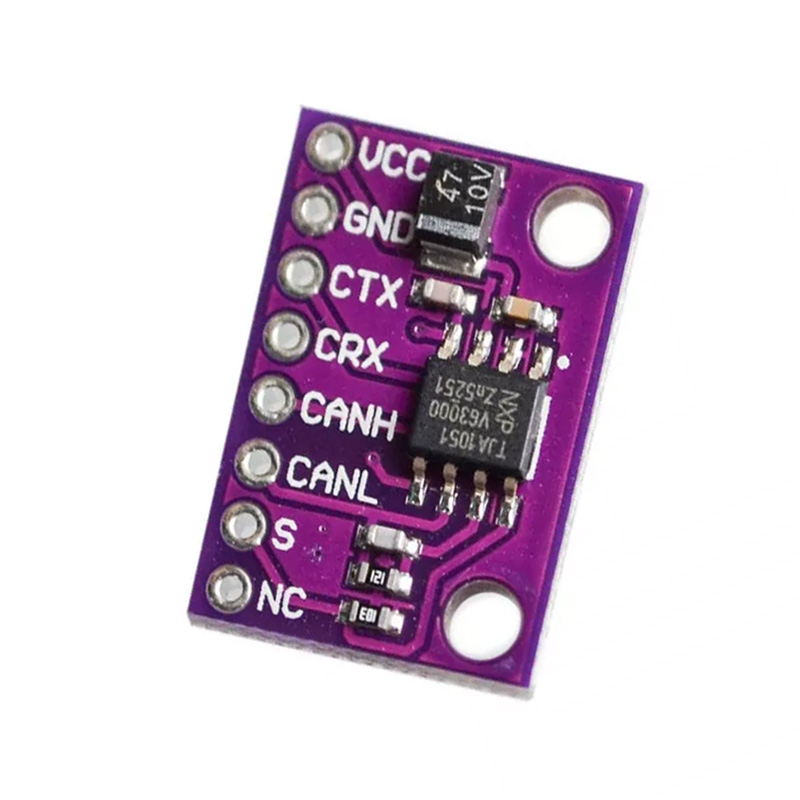

The TJA1051T High-Speed CAN Transceiver is a robust communication interface designed to connect a CAN controller to the CAN bus in high-speed applications. It adheres to the latest high-speed CAN physical-layer standards and supports data rates up to 5 Mbit/s during the fast phase of CAN FD communication. With improved electromagnetic performance and low emissions, it ensures stable communication even in electrically noisy environments.

The device supports both 12 V and 24 V systems and offers strong protection against transients and ESD events, making it dependable for demanding embedded applications. Some variants include a separate I/O voltage pin for direct interfacing with 3 V to 5 V logic. Its low-power silent/off modes minimize current consumption and allow safe system shutdown while keeping the CAN bus undisturbed. This transceiver is ideal for automotive, industrial, and embedded systems requiring reliable, high-speed CAN communication.

Features:

1. Compliant with high-speed CAN physical-layer standards.
2. Supports up to 5 Mbit/s CAN FD fast-phase data rate.
3. Optimized for 12 V and 24 V system operation.
4. Low electromagnetic emissions and high immunity.
5. Optional logic-level I/O interface (2.8 V–5.5 V variants).
6. Silent/off operating modes for low-power systems.
7. High protection on CAN bus lines against ESD.
8. Stable passive behaviour when supply is off.

Package Includes:

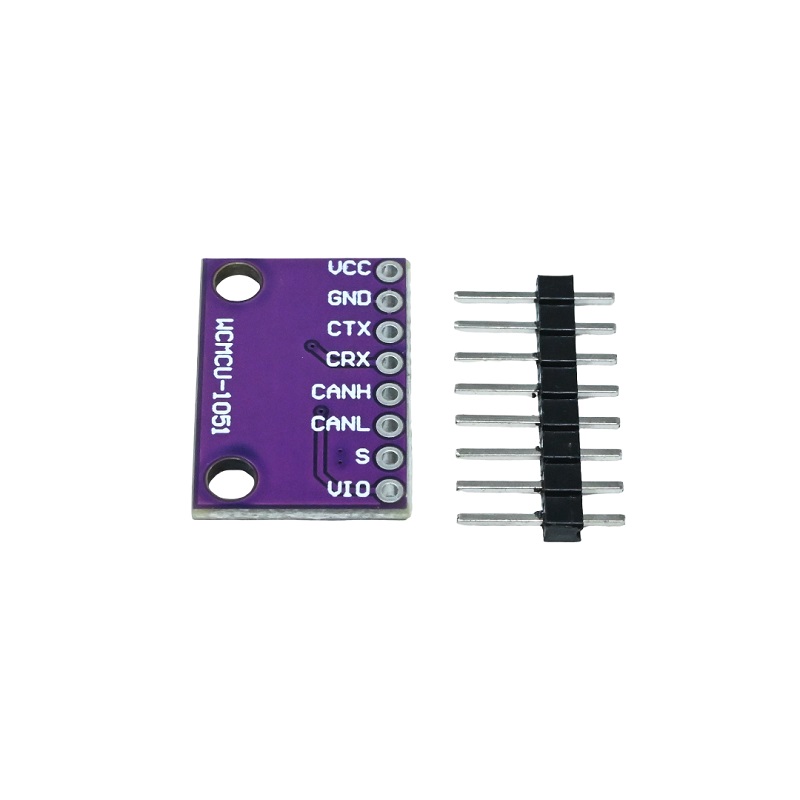

1 x TJA1051T High-Speed CAN Transceiver

1 x Header Pin
