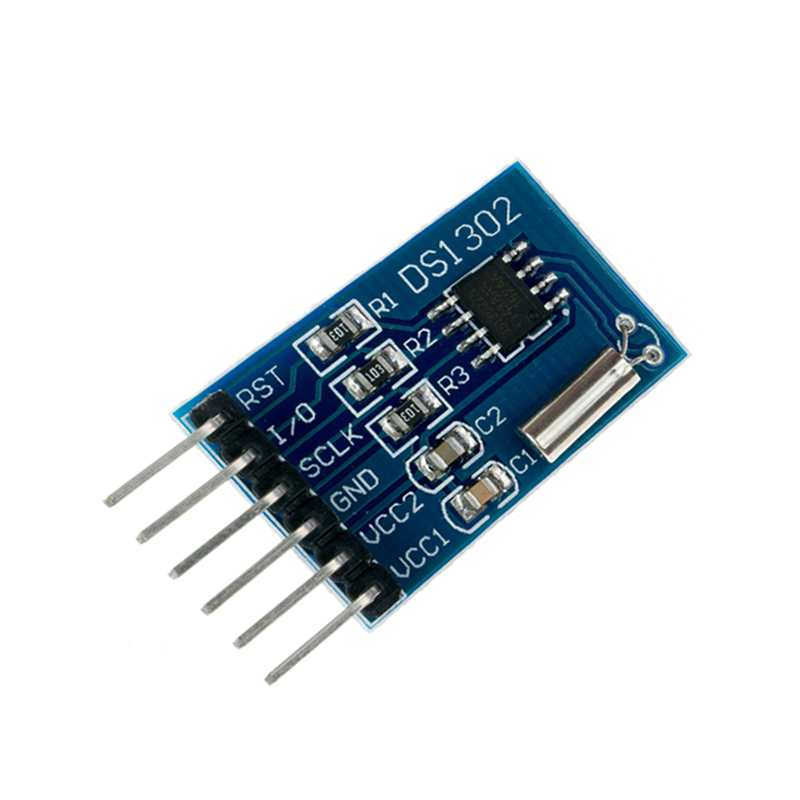

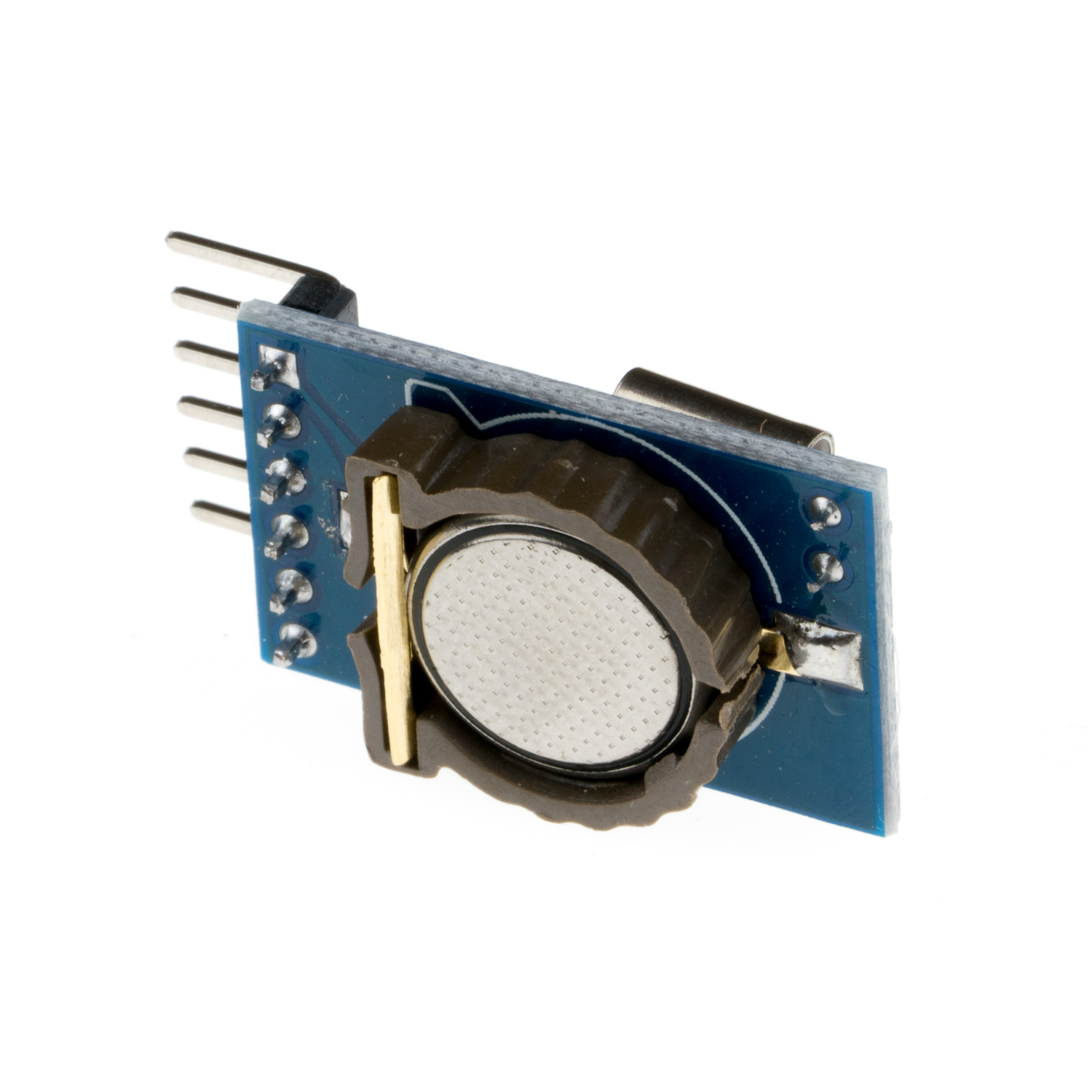

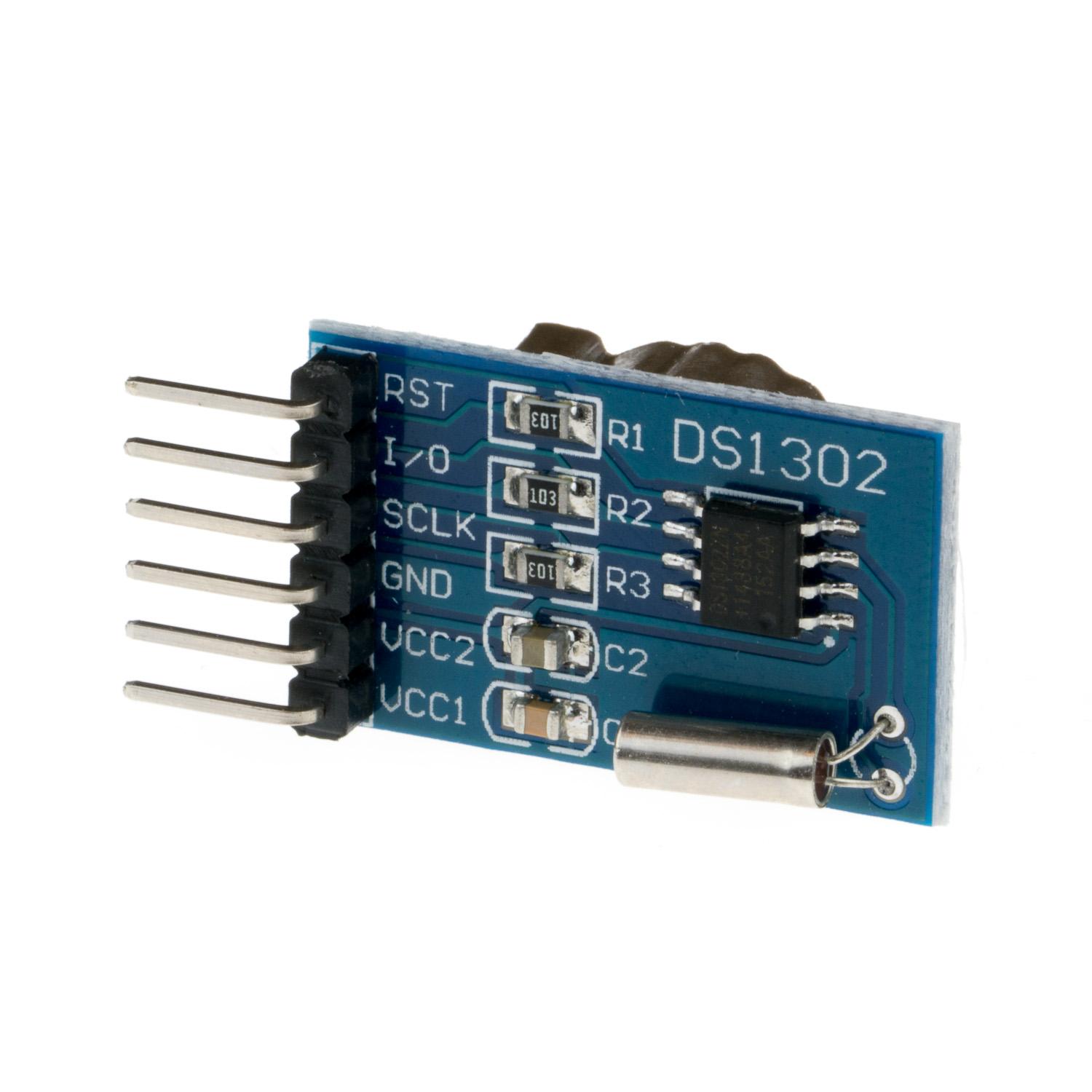

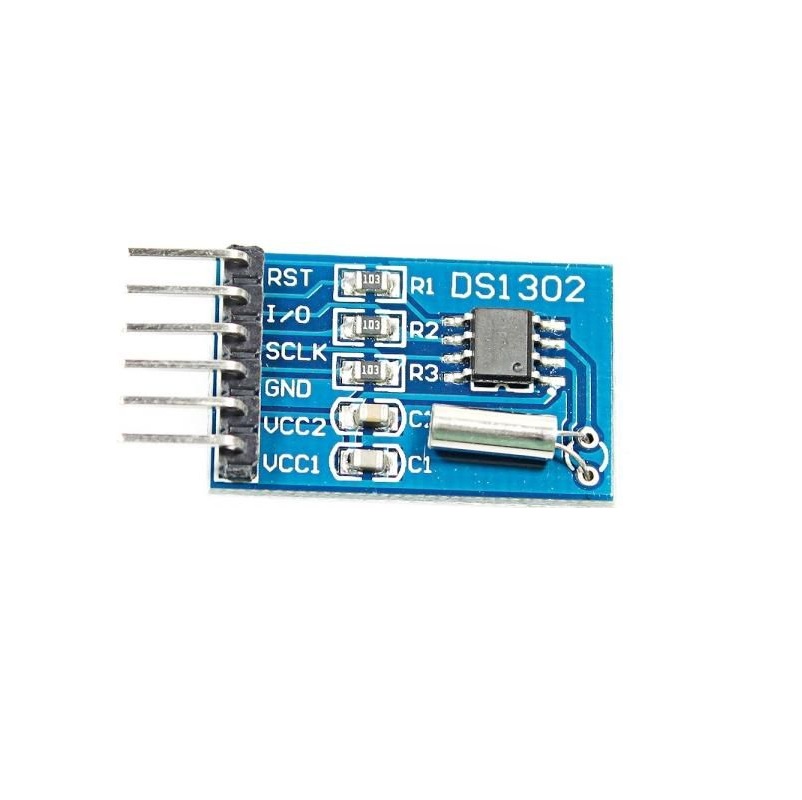

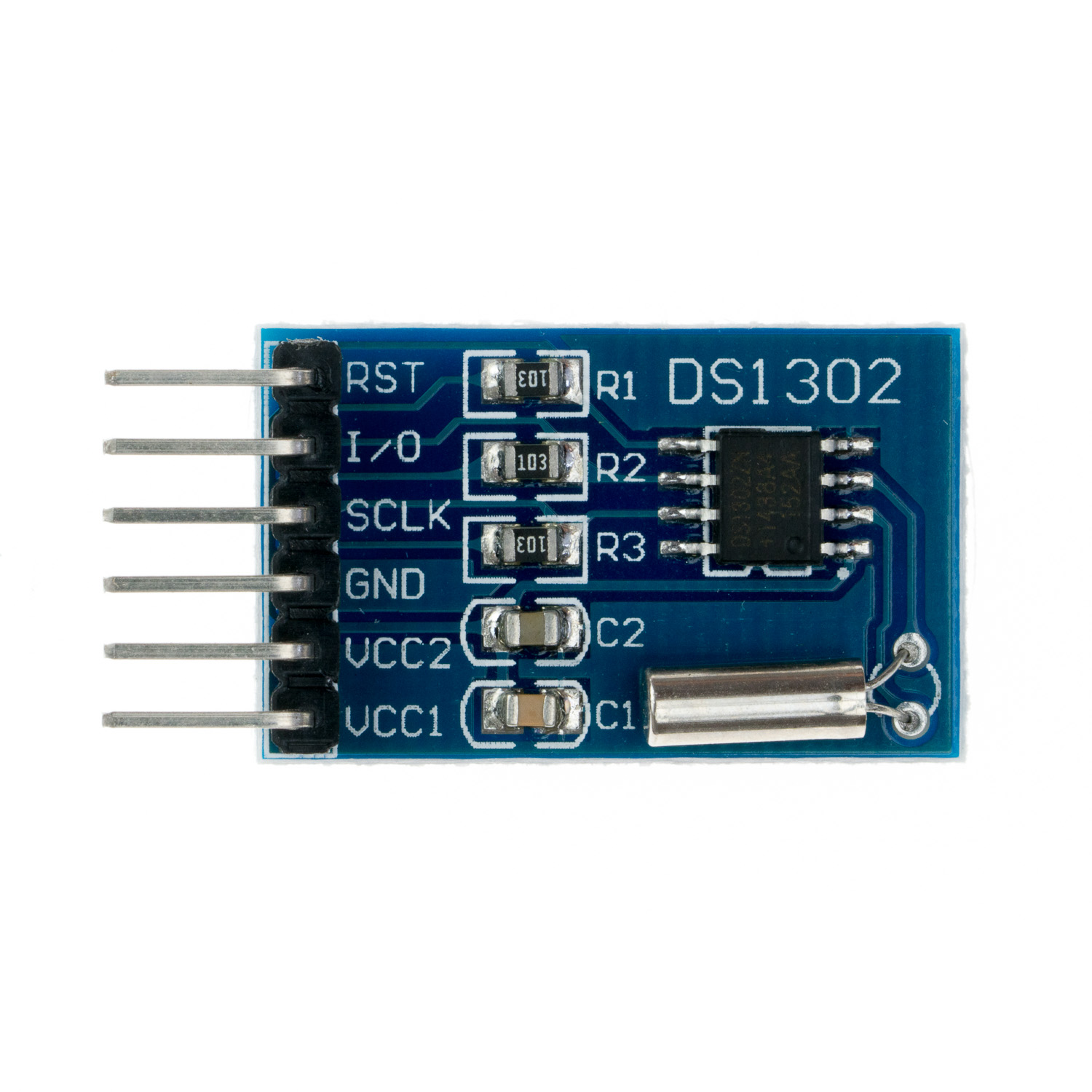

DS1302 Real Time Clock Module (with Battery)
- Crystal 32.768KHz, matching capacitance 6pF
- DS1302 8-pin SMD homemade chips
- Seconds, Minutes, Hours, Day of Month, Day of Week, and Year
- Operating temperature: 0 degree — 70 degree
SKU: Not Found
Brand: Unknown Brand
Out of stock
₹76.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The DS1302 real-time clock (RTC) works very much like a watch. The RTC module accurately keeps time with a precise oscillator and is maintained with a small battery . It is used to give an accurate date and time in many applications. The RTC module is ideal in any time-critical applications like attendance systems, digital cameras, automated sprinkler systems, or a time and calendar display.
Pin configuration :
VCC2 → +5 V/3.3V
GND → GND
CLK → P02
DAT → P01
RST → P00
Specifications
- Crystal 32.768KHz, matching capacitance 6pF
- DS1302 8-pin SMD homemade chips
- Seconds, Minutes, Hours, Day of Month, Day of Week, and Year
Useful Link:
Arduino Playground DS1302 Example
Package Includes:
1 x DS1302 Real Time Clock Module with battery
Technical Specifications
| Battery | CR1220 |
|---|---|
| Crystal | 32.768KHz |
| IC Chip | DS1302 |
| Item Type | RTC Module |
| Model No | DS1302 |
| Operating Temperature (°C) | 0 to 80 |
| PCB Size ( L x W ) mm | 26 x 16 |
| Shipping Dimensions | 8 × 6 × 3 cm |
| Shipping Weight | 0.005 kg |
| Weight (g) | 3 |
