GSM GPRS and GNSS Modules

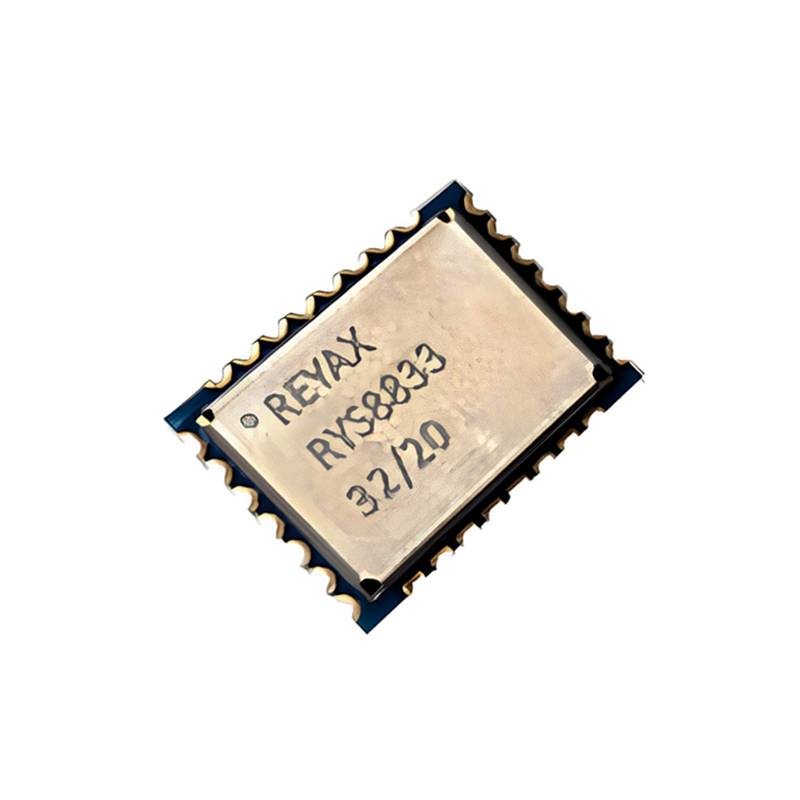

Reyax RYS8833 Ultra Low Power 1.8V UART/I2C Interface GNSS Module
- Power Supply Voltage: 0.9 to 1.95V
- Idle Current: 3.7mA
- Operating Temperature: -40 to 85 °C
- Flash size: 8 M-bit
- Cold starts: 35sec
SKU: Not Found
Brand: Reyax
Out of stock
₹913.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The RYS8833 is a multi-GNSS module with high sensitivity, the RYS8833 also has integrated digital noise filters and spectrum analyzer.
Features:
- SONY CXD5605AGF Engine
- A multi-GNSS module for GPS(L1 C/A), GLONASS(L1 OF), SBAS(L1 C/A), QZSS(L1 C/A), Galileo(E1 CBOC), and BeiDou(B1, specific Firmware)
- Including SAW filter, LNA and TCXO
- Embedded digital noise filters and spectrum analyzer
- UART / I2C Interface optional
Package Includes:
1 x Reyax RYS8833 Ultra Low Power 1.8V UART/I2C Interface GNSS Module
Technical Specifications
| Cold start | 35sec |
|---|---|
| Idle Current (mA) | 3.7 |
| Item Type | Module |
| Module Type | GNSS Module |
| Operating Temperature (°C) | -40 to 85 |
| Shipping Dimensions | 6 × 5 × 1 cm |
| Shipping Weight | 0.005 kg |
| Voltage Rating (VDC) | 0.9 to 1.95 |
