Realtek AMB82-Mini IoT AI Camera Arduino Dev. Board
- 8-in-1 SoC featuring embedded AI & NPU, High resolution up to 2K
- Fast boot-up in milliseconds; ultra-low power in microampere
- Supporting battery-powered, AI & IoT Ecosystems
- Multiple streams real-time H.265/H.264/JPEG encoding
- SDK supports free RTOS, IAR, GCC, Arduino IDE
SKU: Not Found
Brand: Realtek
Out of stock
₹2745.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

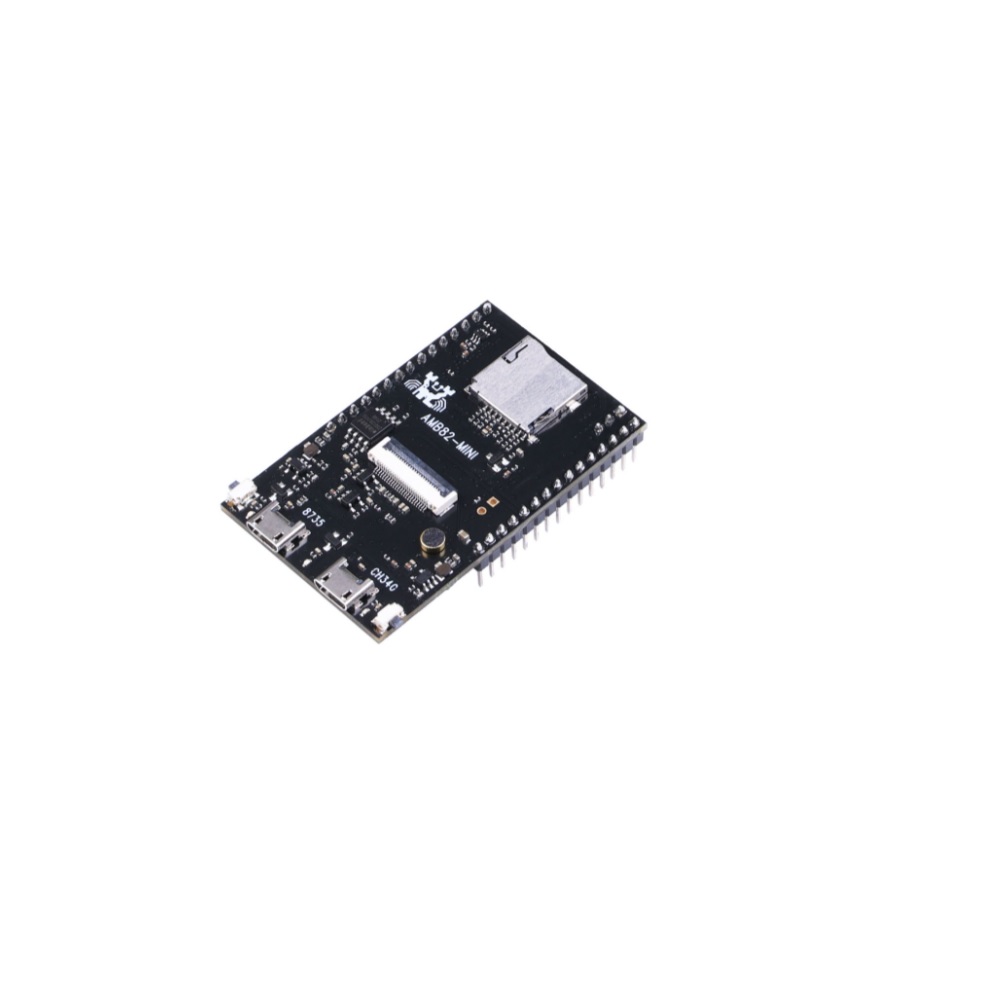

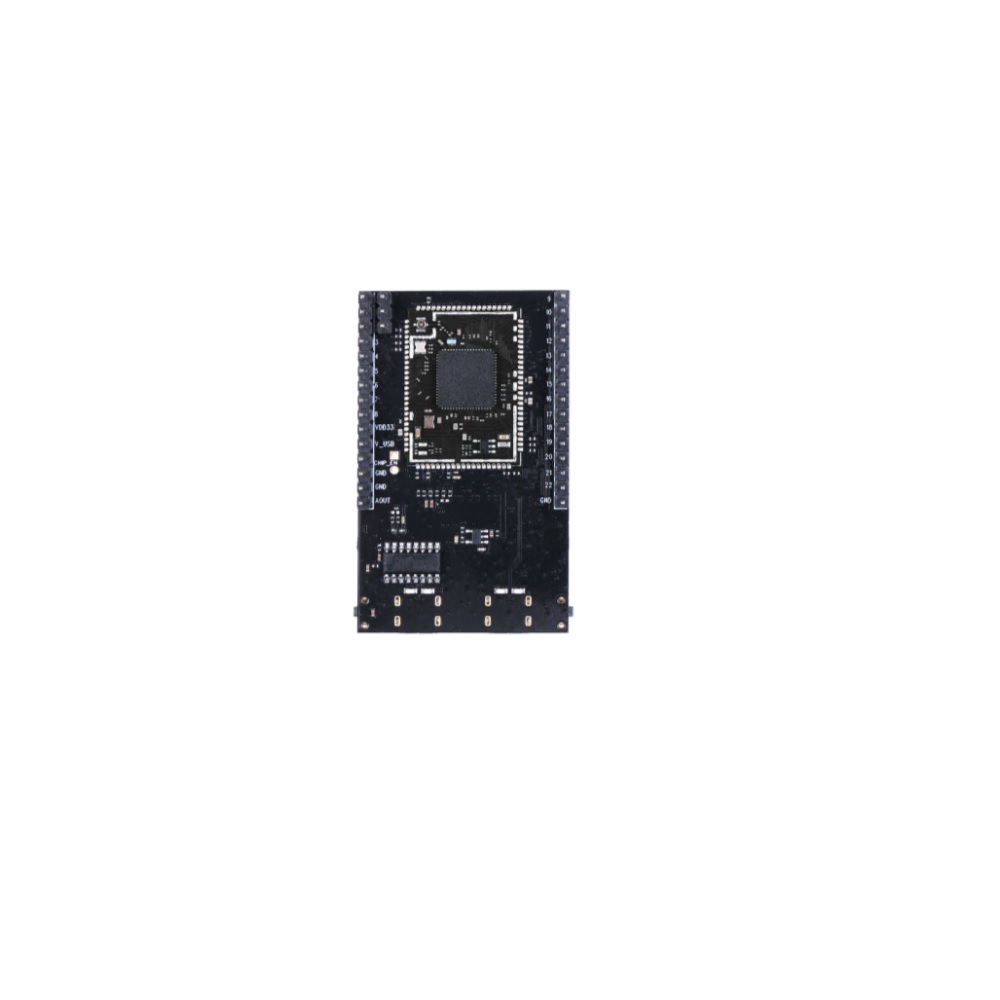

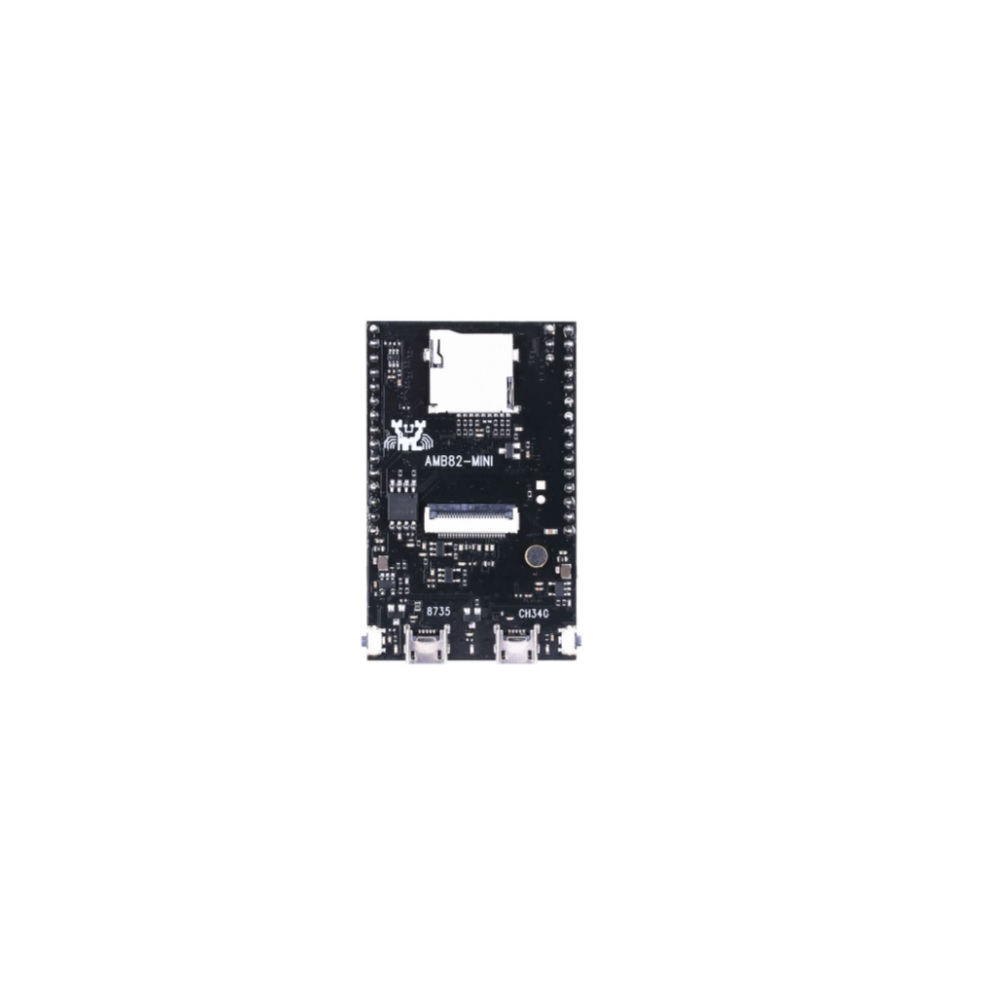

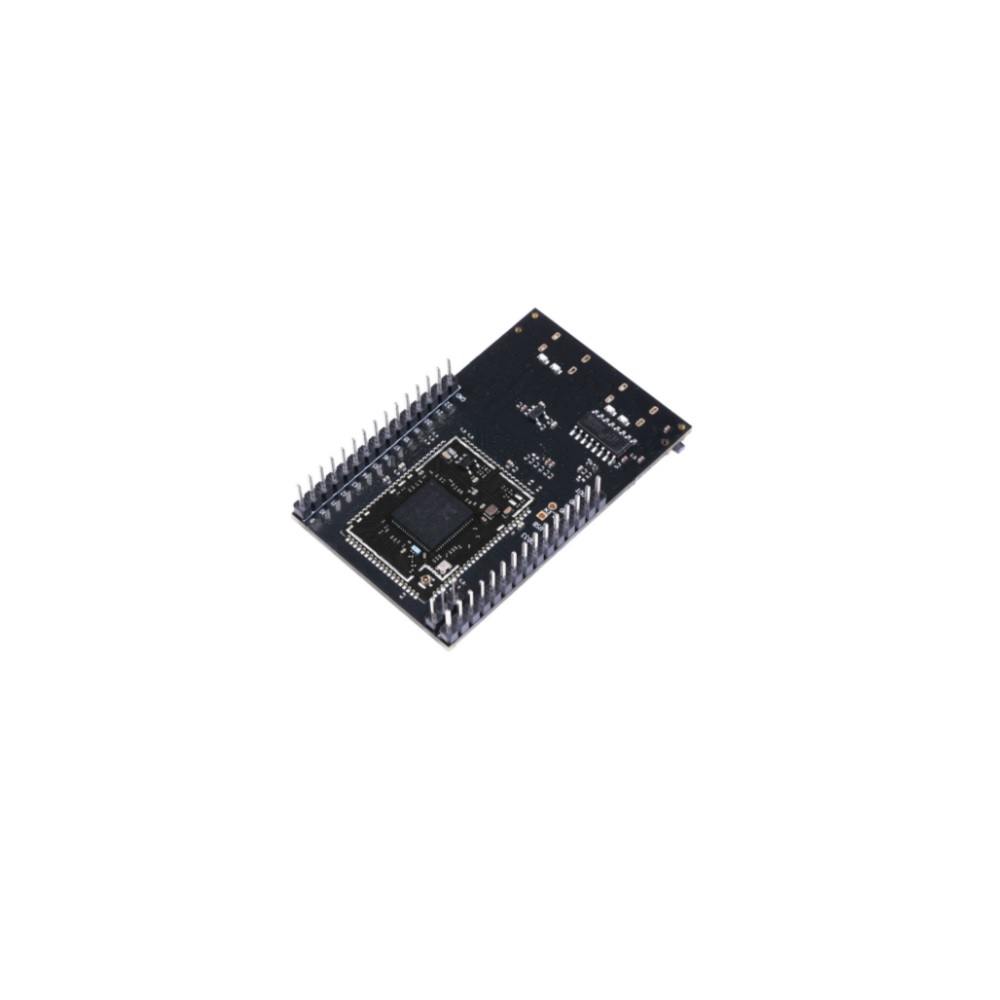

The AMB82-MINI development board is adopting Realtek RTL8735BDM SoC. RTL8735BDM is a highly integrated low-power 802.11 a/b/g/n WLAN and Bluetooth camera SoC, it combines arm® v8M MCU(500MHz and 2.23 DMIPS/MHz), dual-band Wi-Fi, Bluetooth BLE5, audio codec, ISP and H264/H265 encoder, DDR2 128MB memory, and neural network intelligent engine in a single chip.
It also provides useful high-speed connectivity interfaces, such as a USB 2.0 host, USB 2.0 device, SD host, and a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.
Feature:
- Worldwide leading Ultra-Low-Power AI Wi-Fi IP Camera SoC：8-in-1 SoC featuring embedded AI & NPU, High resolution up to 2K
- Fast boot-up in milliseconds; ultra-low power in microampere
- Supporting battery-powered, AI & IoT Ecosystems
- Multiple streams real-time H.265/H.264/JPEG encoding
- SDK supports free RTOS, IAR, GCC, Arduino IDE

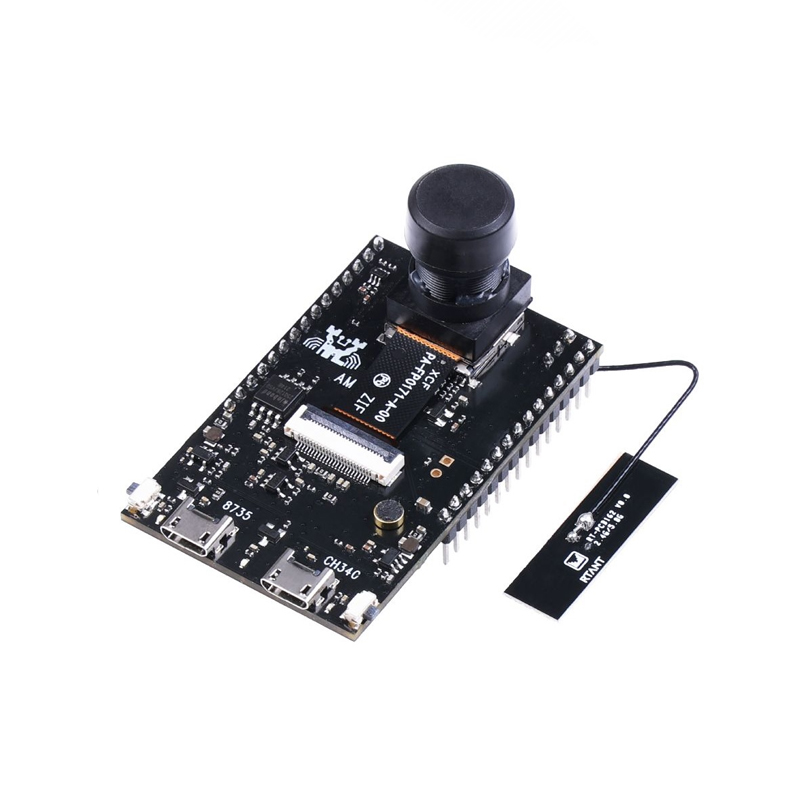

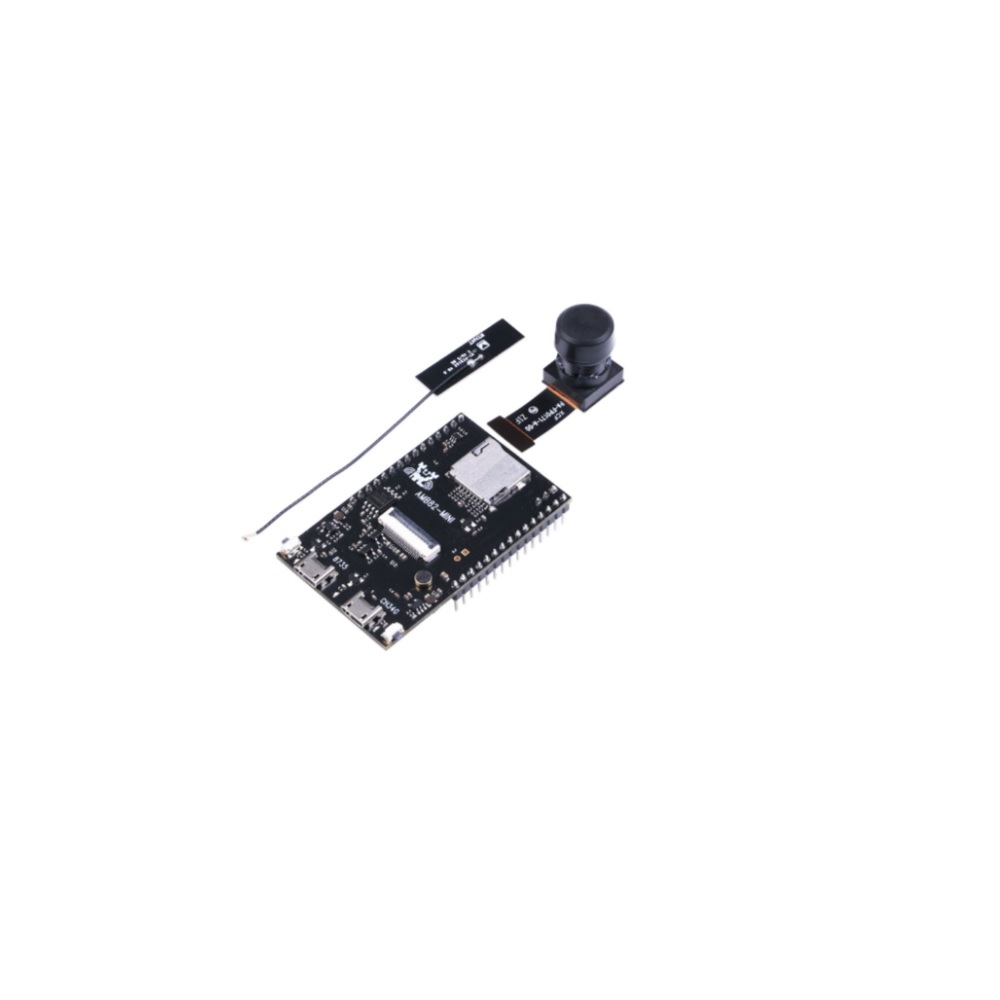

Package Includes:
1 x Realtek AMB82-MINI Dev. Board
1 x Dualband Wi-Fi (2.4GHz/5GHz) ipex antenna
1 x Taiyee camera module(F37)
Technical Specifications
| Additional Specs. | Audio Codec: ADC/DAC/I2S |
|---|---|
| Bluetooth Version | BLE 5.1 |
| Camera Module | JXF37 1920×1080 full HD CMOS image sensor with wide view angle FOV 130° optical lens |
| Interface | 1 Microphone on Dev Board, 2 Micro USB_B, 1 MicroSD card slot, 2 tact switch button 3 UART 2 SPI 1 I2C 8 PWM 2 GDMA Max. 23 GPIOs |
| ISP/Video | HDR / 3DNR / WDR ; H264/H265/JPEG video encoder 1080p@30fps +720p@30fps |
| Item Type | Development Board |
| MCU Type | ARMv8M up to 500MHz |
| Memory | internal DDR2 128MB on SoC and 16MB external SPI Nor flash on Dev. Board |
| Model Name | AMB82-Mini |
| NPU | Intelligent Engine @ 0.4 TOPS |
| Security | Hardware cryptographic engine Secure boot (optional) Trust-Zone (optional) Wi-Fi WEP, WPA, WPA2, WPA3, WPS |
| Shipping Dimensions | 12 × 8 × 3 cm |
| Shipping Weight | 0.037 kg |
| WiFi (Y/N) | 802.11 a/b/g/n 1×1, Dualband 2.4GHz/5GHz Wi-Fi Wi-Fi simple config |
