RFID Readers and Writers
RDM6300 125KHz EM4100 RFID Card ID Reader
- Maximum effective distance up to 150mm
- Less than 100ms decoding time

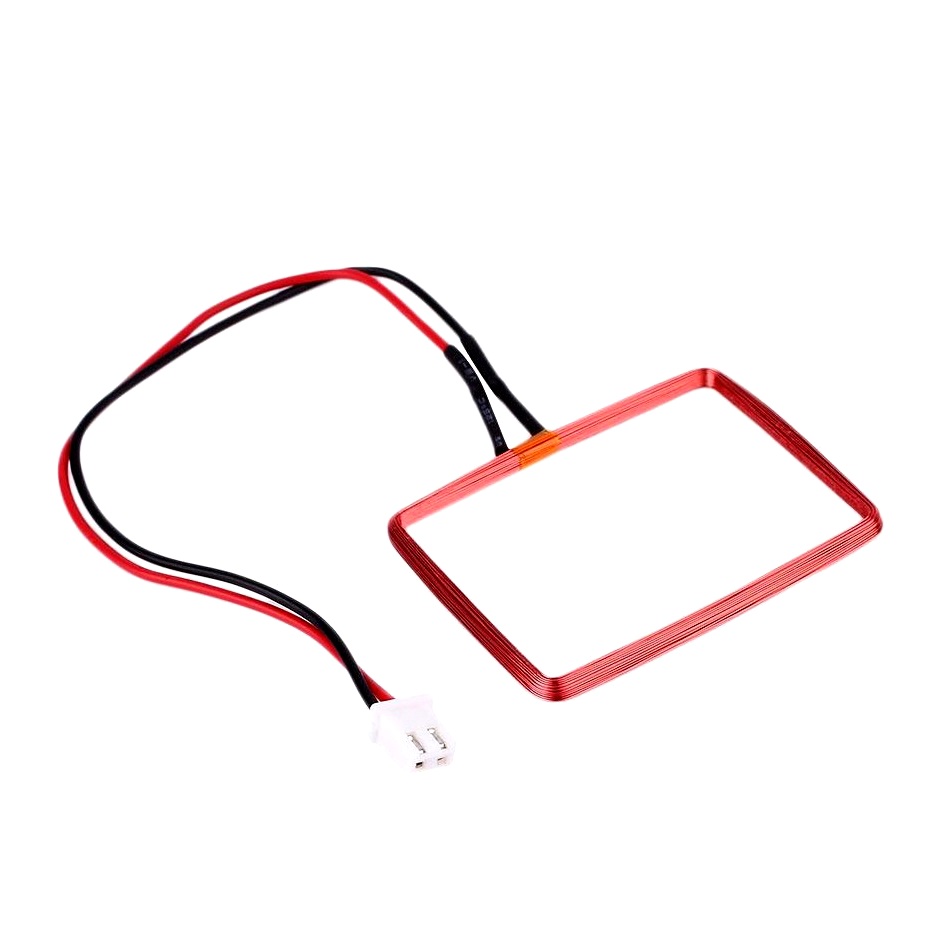

- Support external antenna
- Uart interface
- Support EM4100 compatible read-only or read/write tags
- Small outline design
SKU: Not Found
Brand: Generic
Out of stock
₹261.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

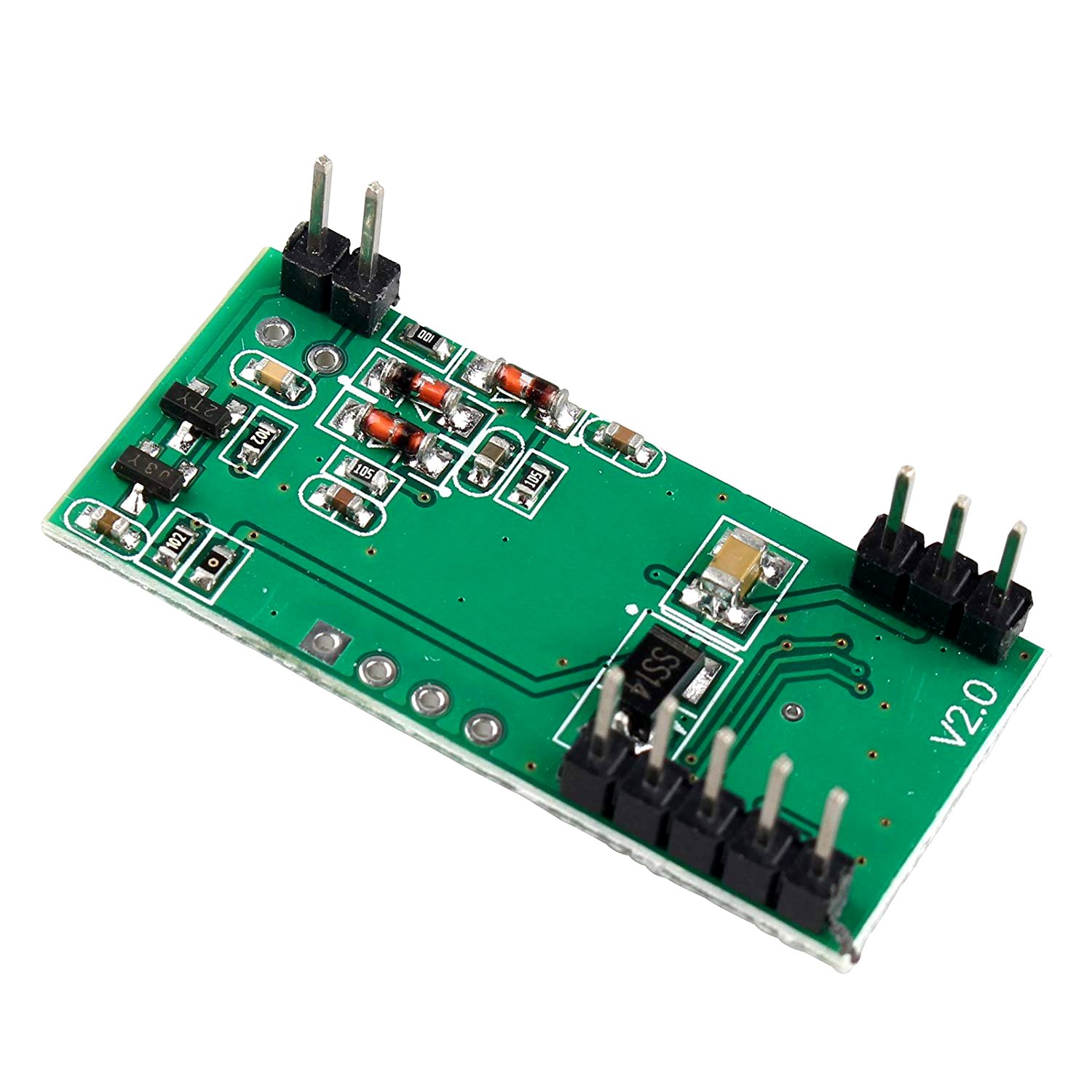

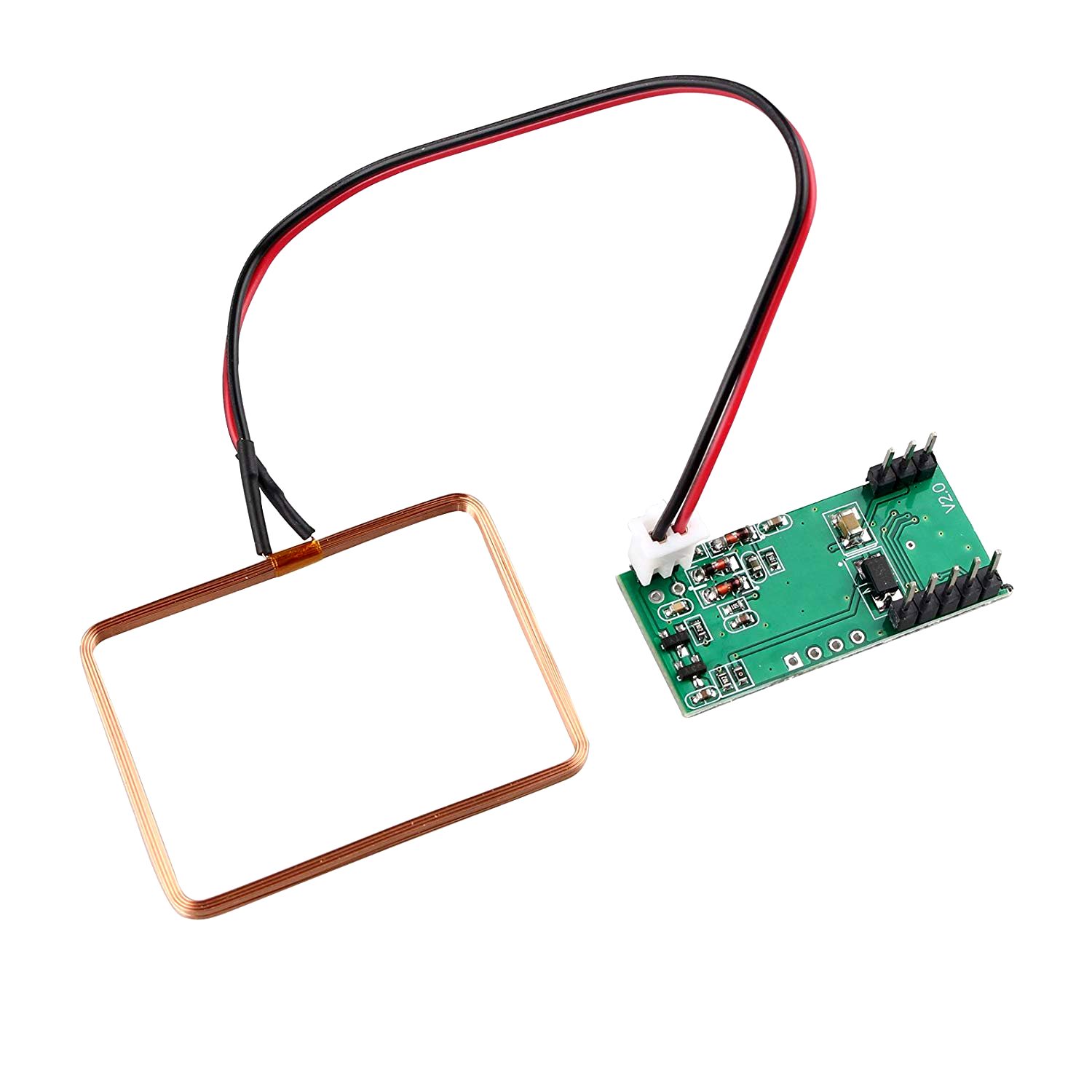

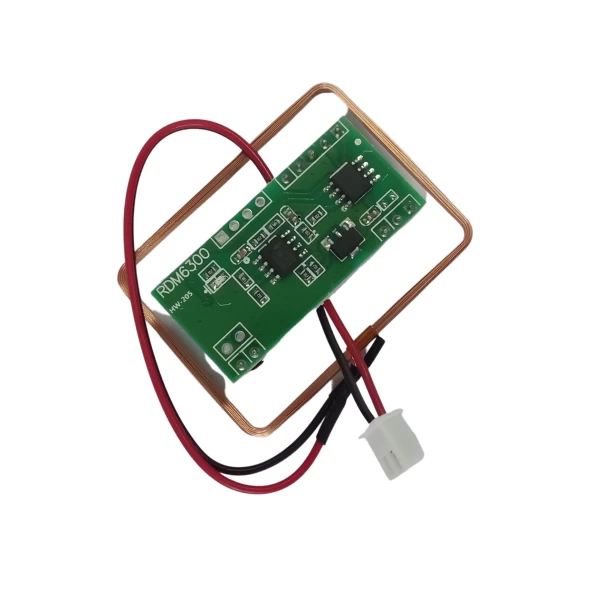

RDM6300 125KHz EM4100 RFID Card ID Reader Module is designed for reading code from 125KHz card compatible read-only tags and read/write the card. It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.
Features:
- Maximum effective distance up to 150mm
- Less than 100ms decoding time
- Support external antenna
- Uart interface
- Support EM4100 compatible read-only or read/write tags
- Small outline design
Package Includes:
1 x RDM6300 125KHz EM4100 RFID Card ID Reader Module
Technical Specifications
| Baud Rate (bps) | 9600 |
|---|---|
| Humidity Range | 0~95% |
| Interface | TTL level RS232 format |
| Model | RFID Reader |
| Operating Current (mA) | <50mA |
| Operating Frequency (MHz) | 0.125 |
| Operating Temperature (°C) | -10°C~+70°C |
| Operating Voltage (VDC) | DC 5V(+/-5%) |
| PCB Size ( L x W ) mm | 38.5 x 20 mm |
| Receive distance | 20~50mm |
| Shipping Dimensions | 8 × 6 × 4 cm |
| Shipping Weight | 0.1 kg |
| Storage Temperature (°C) | -20°C~+80°C |
| Weight (g) | 7g |
| Wiring size | 46*32*3mm |
