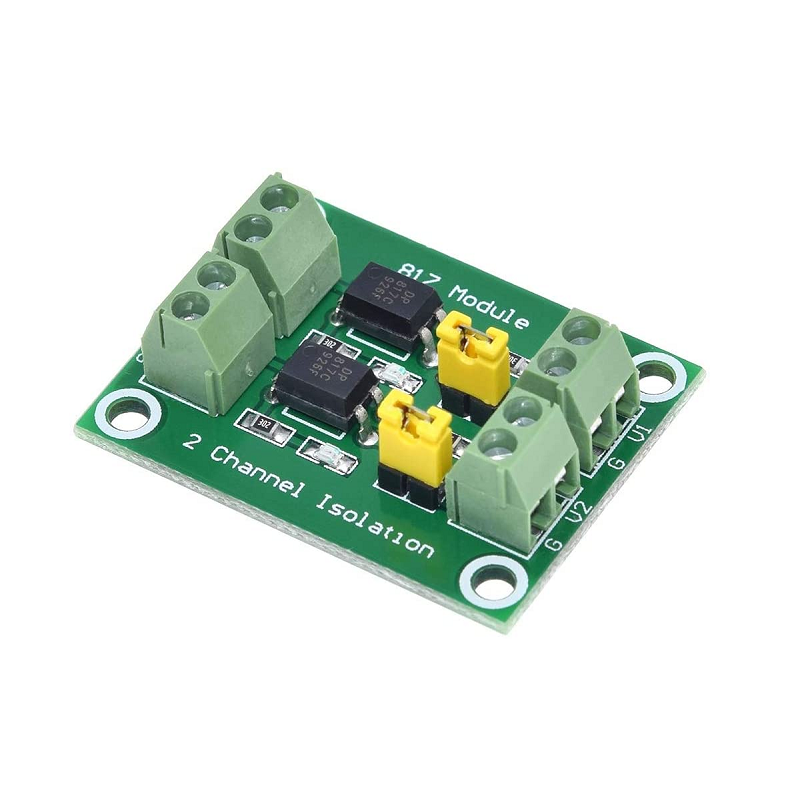

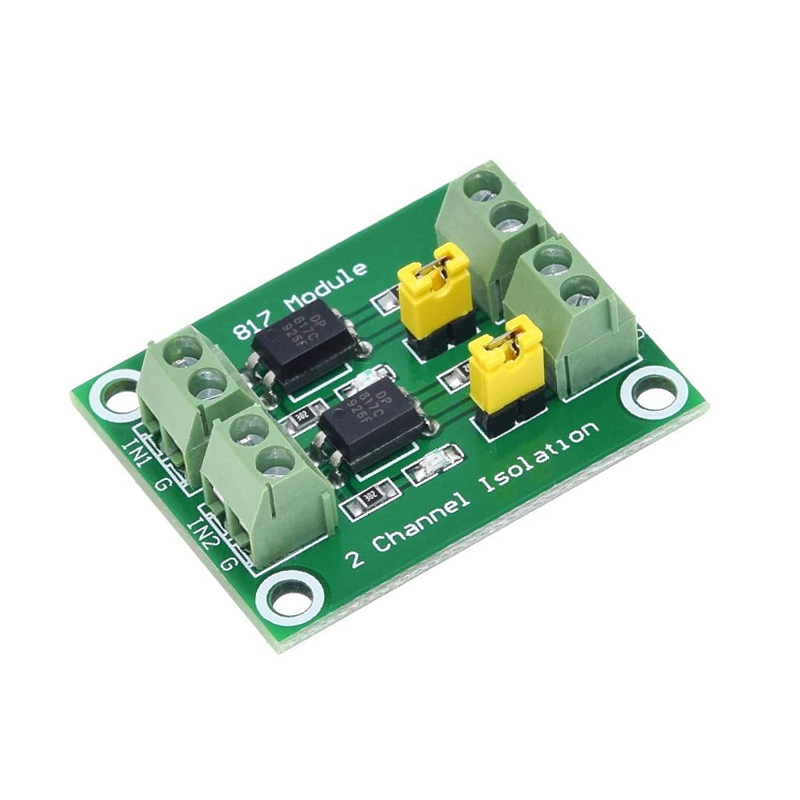

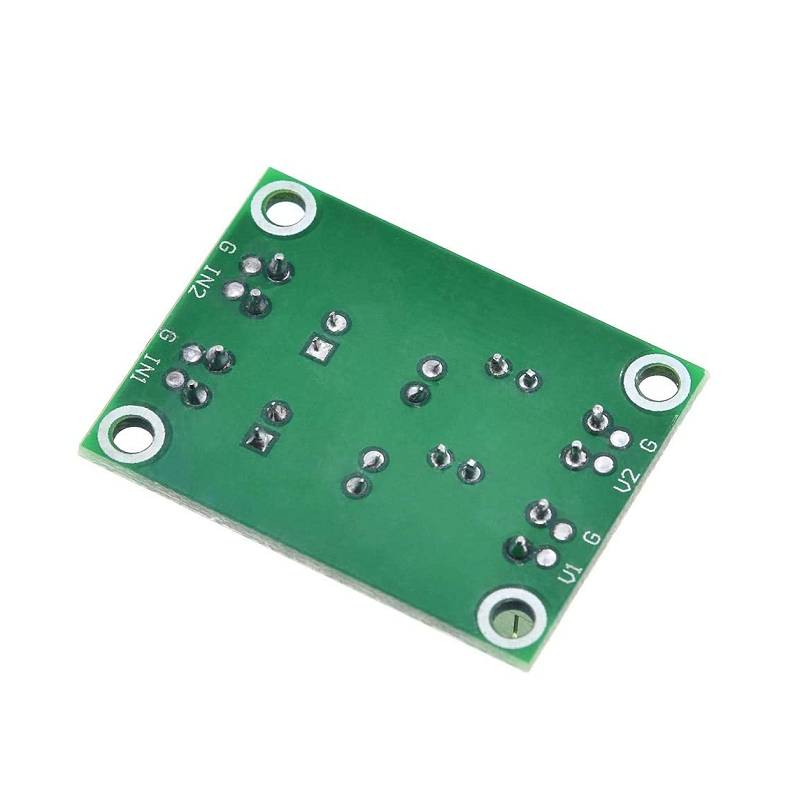

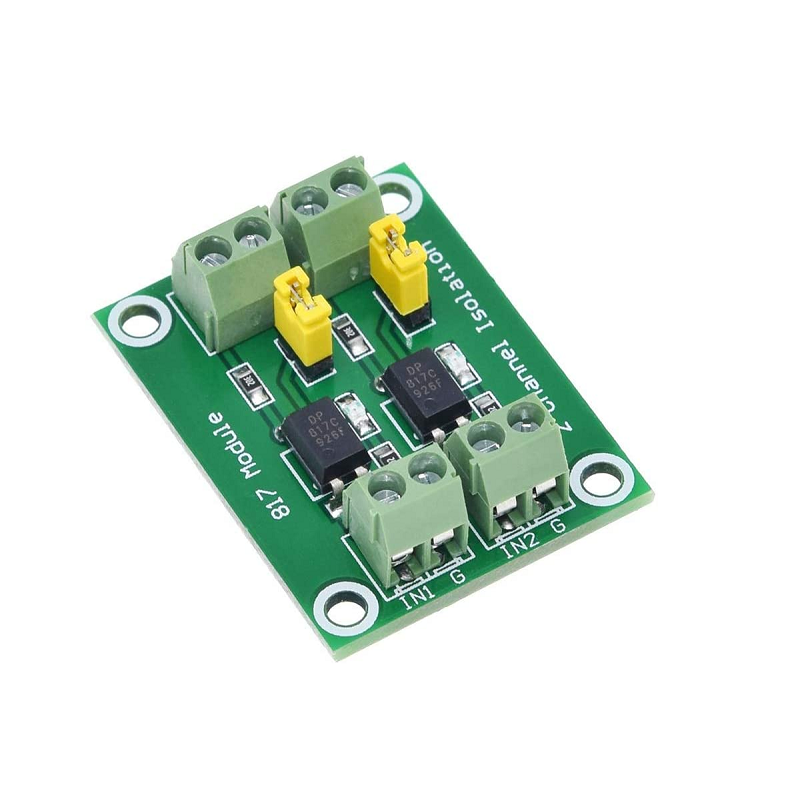

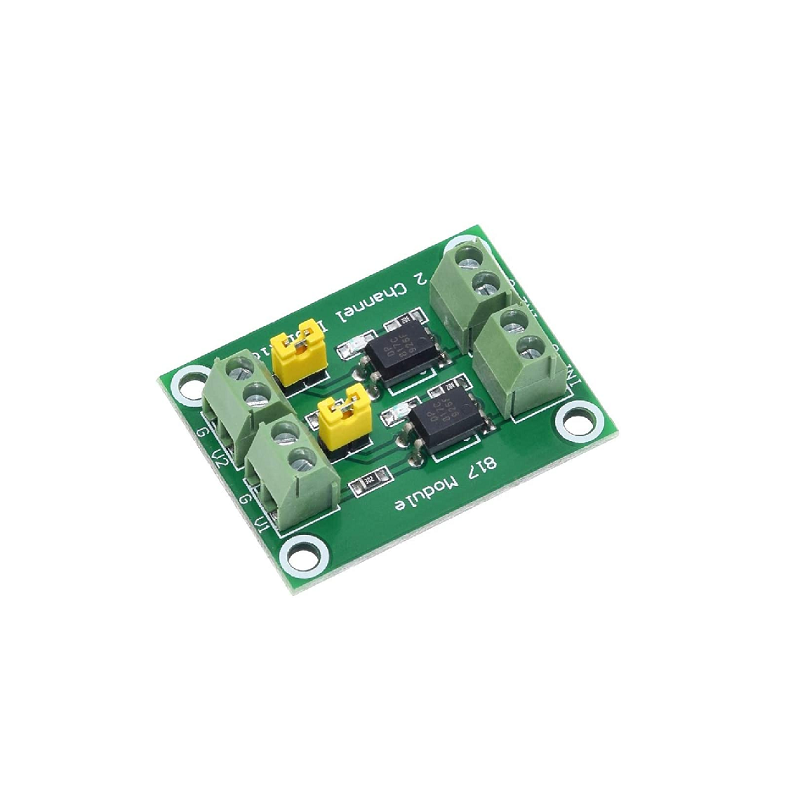

PC817 2 CH Optocoupler Isolation Module
- I/O Isolation for MCUs (Micro Controller Units)
- Noise Suppression in Switching Circuits
- Driving Port Signal Voltage: 3.6-24V
- Output Port Voltage Port: 3.6-30V
- Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.
SKU: Not Found
Brand: Generic
Out of stock
₹73.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 14 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This is a PC817 2 Channel Optocoupler Isolation Board. Onboard with 4-Channel 817 are independent, so they can achieve different voltage control at the same time. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.
Applications:
- I/O isolation for MCUs (Micro Controller Units)
- Noise Suppression in Switching Circuits
- Signal Transmission Between Circuits of Different Potentials and Impedances
Features:
- Driving Port Signal Voltage: 3.6-24V
- Output Port Voltage Port: 3.6-30V
- Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.
Package Includes:
1 x PC817 2 CH Optocoupler Isolation Module
Technical Specifications
| Height (mm) | 12 |
|---|---|
| Input Voltage (V) | 3.6-24DC |
| Length (mm) | 38 |
| Model | Optocoupler Isolation Module |
| No. of Channels | 2 |
| Output Voltage (V) | 3.6-30 |
| Shipping Dimensions | 5 × 4 × 1 cm |
| Shipping Weight | 0.01 kg |
| Weight (g) | 5 |
| Width (mm) | 29 |
