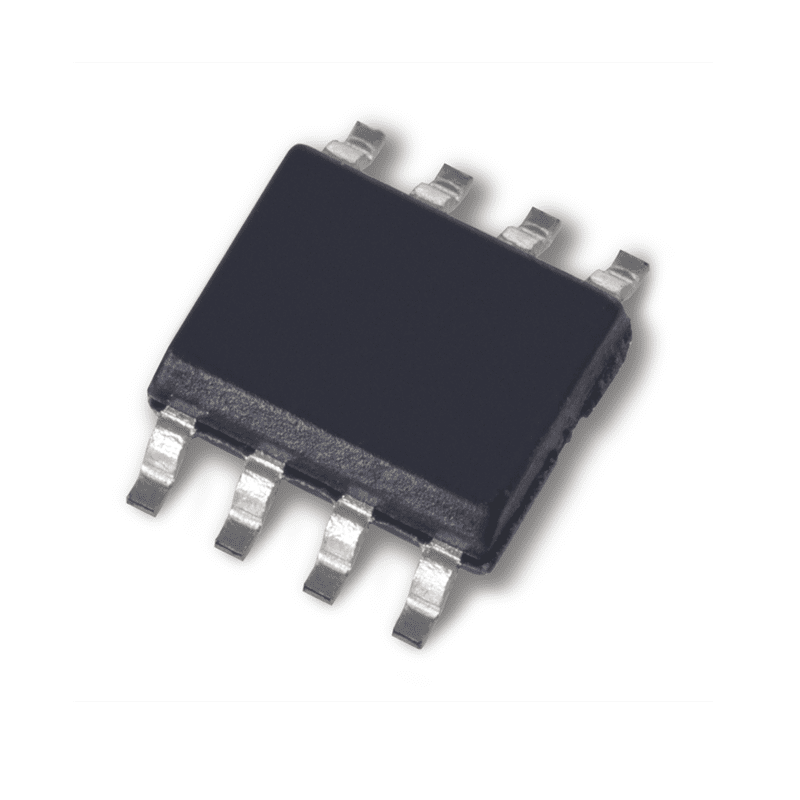

SST25PF020B-80-4C-SAE-Microchip-Flash Memory, Serial NOR, 2 Mbit, 256K x 8bit, SPI, SOIC, 8 Pins. The SST25PF020B-80-4C-SAE is a 2MB Serial Flash Memory features a four-wire, SPI-compatible interface that allows for a low pin-count. This device is enhanced with improved operating frequency and even lower power consumption. SST25PF020B SPI serial flash memory is manufactured with proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The device significantly improves performance and reliability, while lowering power consumption. The devices write with a single power supply of 2.3 to 3.6V for SST25PF020B. The total energy consumed is a function of the applied voltage, current and time of application. Since for any given voltage range, the SuperFlash technology uses less current to program and has a shorter erase time, the total energy consumed during any erase or program operation is less than alternative flash memory technologies.
Note: Images for reference only.

Specifications:

1. Flash Memory Type: Serial NOR
2. Memory Configuration: 256K x 8bit
3. IC Case / Package: SOIC
4. Clock Frequency Max: 80MHz
5. Supply Voltage Min: 2.3V
6. Supply Voltage Nom: 1.8V
7. Operating Temperature Min: 0°C
8. Product Range: 3V Serial NOR Flash Memories
9. Memory Density: 2Mbit
10. Interfaces: SPI
11. No. of Pins: 8Pins
12. Access Time: 8ns
13. Supply Voltage Max: 3.6V
14. IC Mounting: Surface Mount
15. Operating Temperature Max: 70°C
16. Manufacturer: Microchip Technology
17. Case/Package: SOIC 8
18. No. of Pins: 8

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x SST25PF020B-80-4C-SAE-Microchip-Flash Memory, Serial NOR, 2 Mbit, 256K x 8bit, SPI, SOIC, 8 Pins
