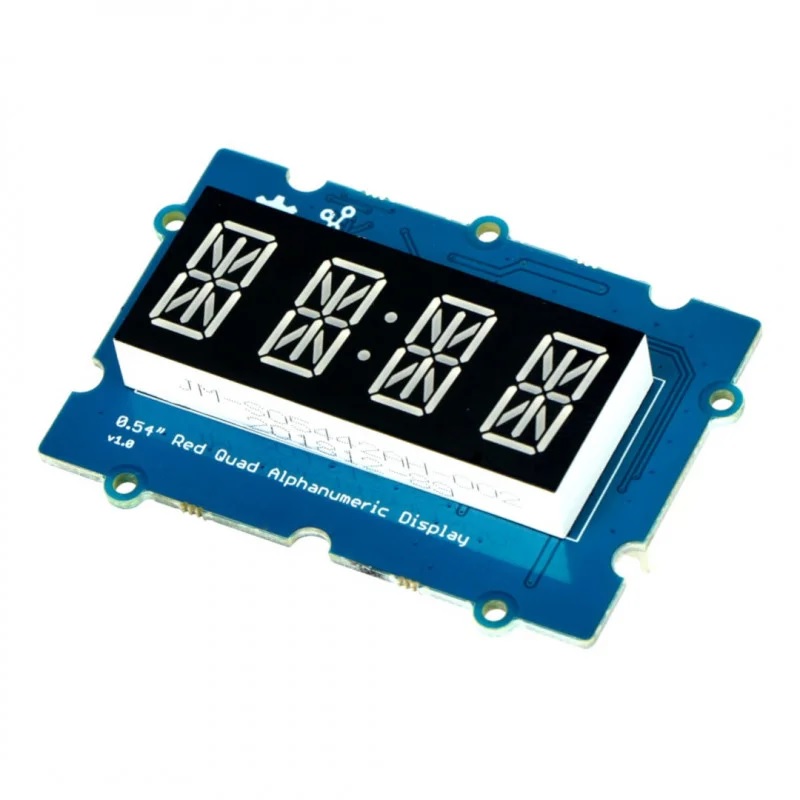

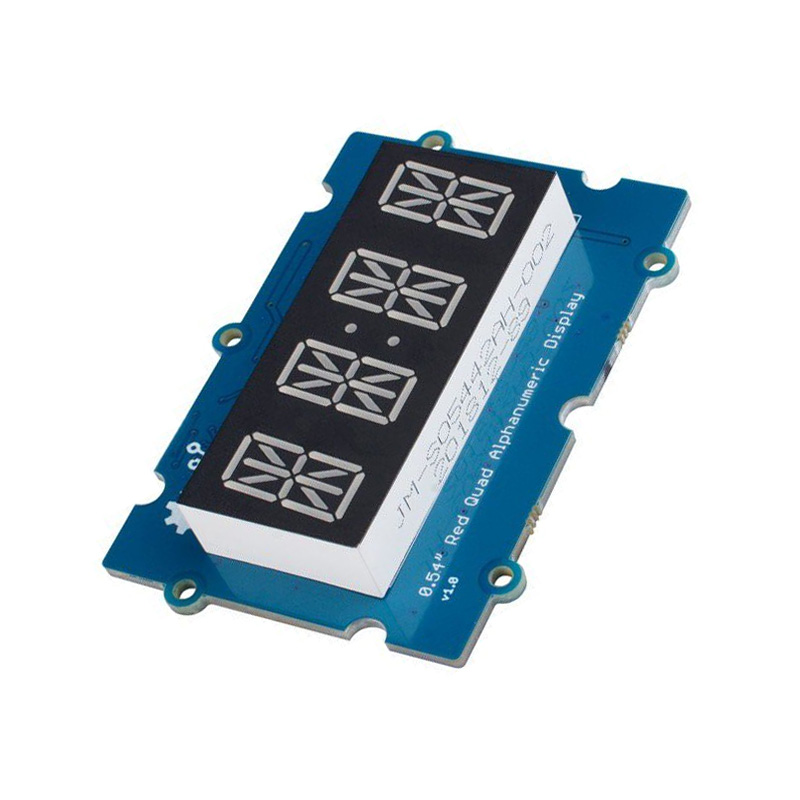

SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display
- Supply voltage 3.3V / 5V
- Operating ambient temperature -30°C to 85°C
- LED Display JM-S05442ASR-001
- LED Controller Driver HT16K33
- LED Color Red
- Ultra-high brightness 30mcd
- LED height 0.54inch
- LED segment 14
- Size 40 * 60mm
- Output interface I2C
- I2C Address(Selectable) 0x71(Default)
SKU: Not Found
Brand: Seeed Studio
Out of stock
₹1129.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

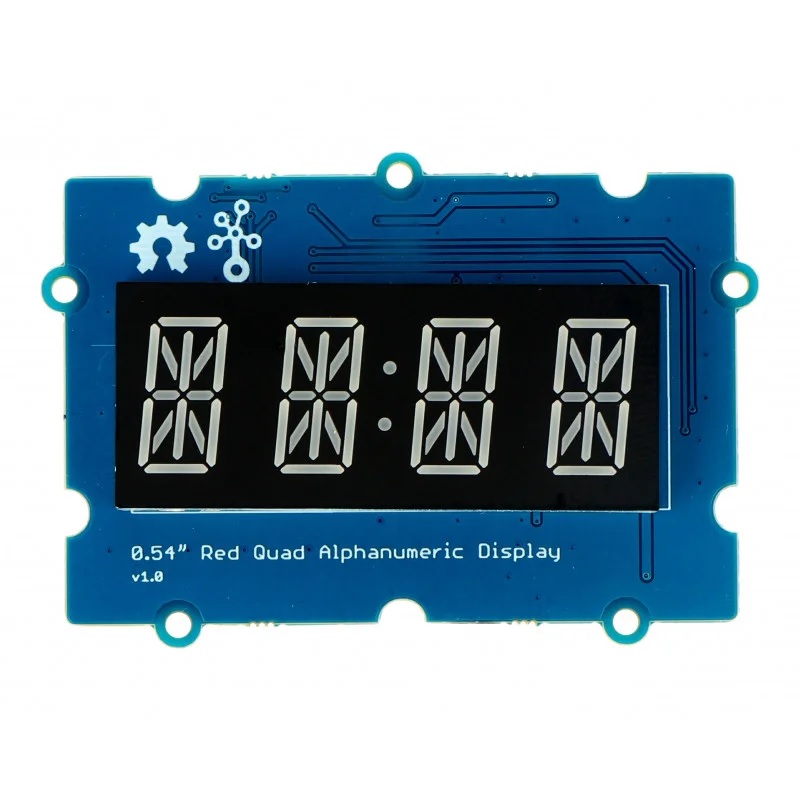

This module is a 4 digit alphanumeric display with high brightness and red backlight, each digit is consists of a 14-segment digital tube. The commonly used 7-segment display, such as our Grove – 4-Digit Display can only display the numbers 0-9 and a limited number of letters. In contrast, the 14-segment digital display does not have this limitation, it can display all the characters, that’s why we call it alphanumeric display.
The digit height is 0.54 inch and the red LED used in this module has super high brightness, so you can see it a few meters away.

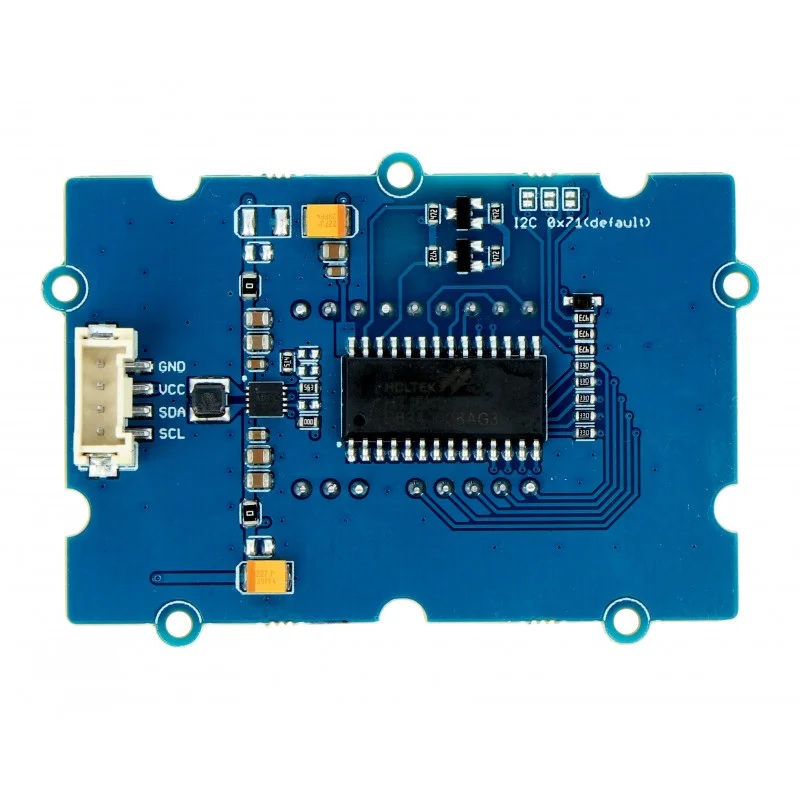

Usually, the 14-segment display needs to use 17 or more wires to control the display, which means that a large amount of IO of your main control board (such as Arduino) will be occupied. With the help of onboard HT16K33 chip and Grove connector, we made it an i2c display, only four wires are enough. No troublesome soldering and no complicated wiring, if you are using seeeduino, it is really plugged and play, easy peasy.
We have released a lot of displays for Arduino, raspberry pi, Beaglebone and other SBC(Single Board Computer), now we bring you the Grove – 0.54” Red Quad Alphanumeric Display, you can use it to show a four-letter word, such as ‘Love’, or you can make it a clock. All in all, the 14-segment display means more possibility and creativity. We hope it will help you create more interesting projects.
Features:
- Can display all letters and numbers
-
Ultra-high brightness:30mcd
-
Grove I2C only takes two IO pins
-
Onboard drivers, easy to use
- Cathode display
Useful link:
Grove – 0.54 inch Red Quad Alphanumeric Display tutorial
Application:
- Industrial control indicators
- Digital clocks, thermometers, counters, multimeters
- Instrumentation readouts
- Other consumer applications
- LED Displays

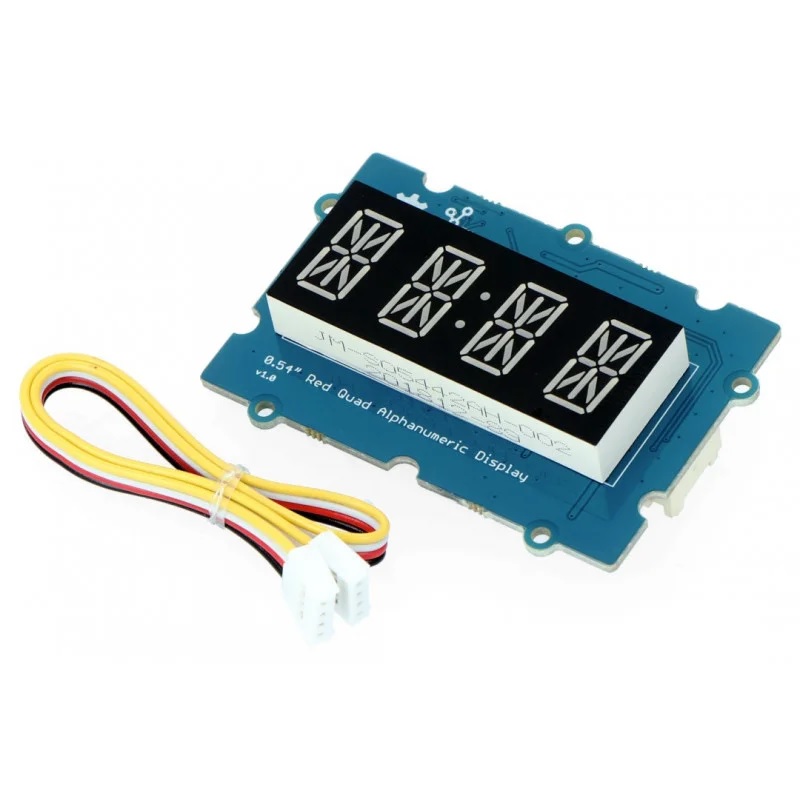

Package Includes :
1 x SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display
1 x JST cable
Technical Specifications
| Ambient Temperature (°C) | -30°C to 85°C |
|---|---|
| Driver | LED Controller HT16K33 |
| I2C Address | 0x71(Default) |
| LED Color | Red |
| LED height | 0.54inch |
| LED segment | 14 |
| Model | Alphanumeric Display |
| Output Interface | I2C |
| Shipping Dimensions | 12 × 7 × 1 cm |
| Shipping Weight | 0.023 kg |
| Size (mm) | 40 * 60mm |
| Supply Voltage (V) | 3.3V / 5V |
