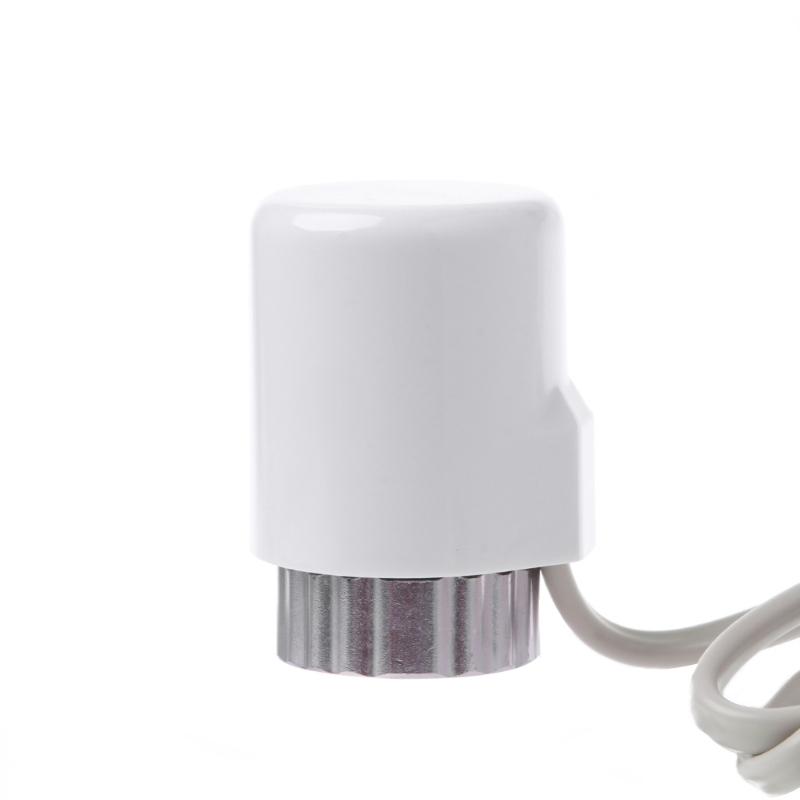

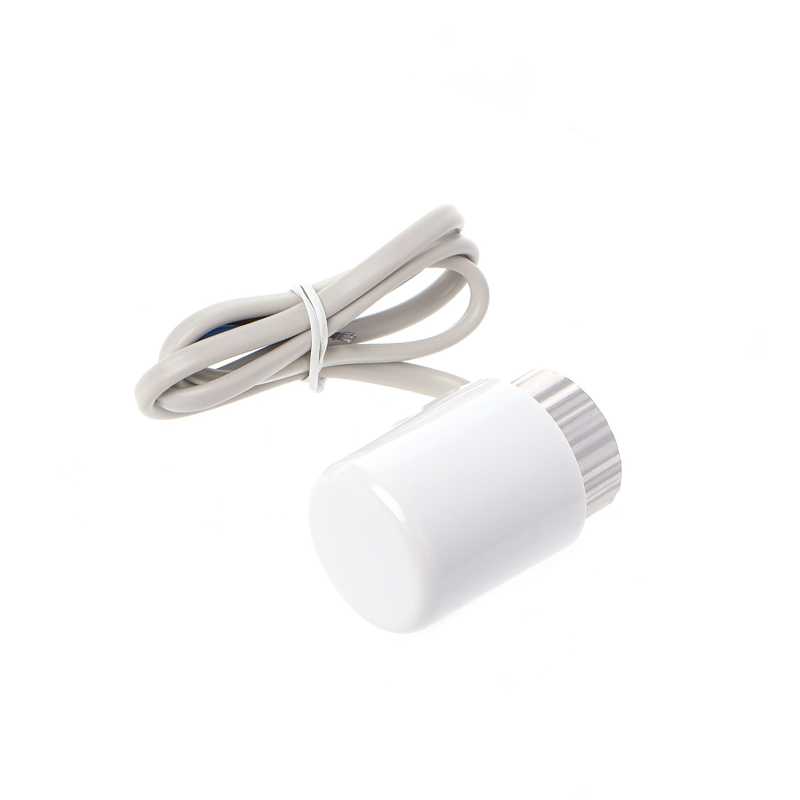

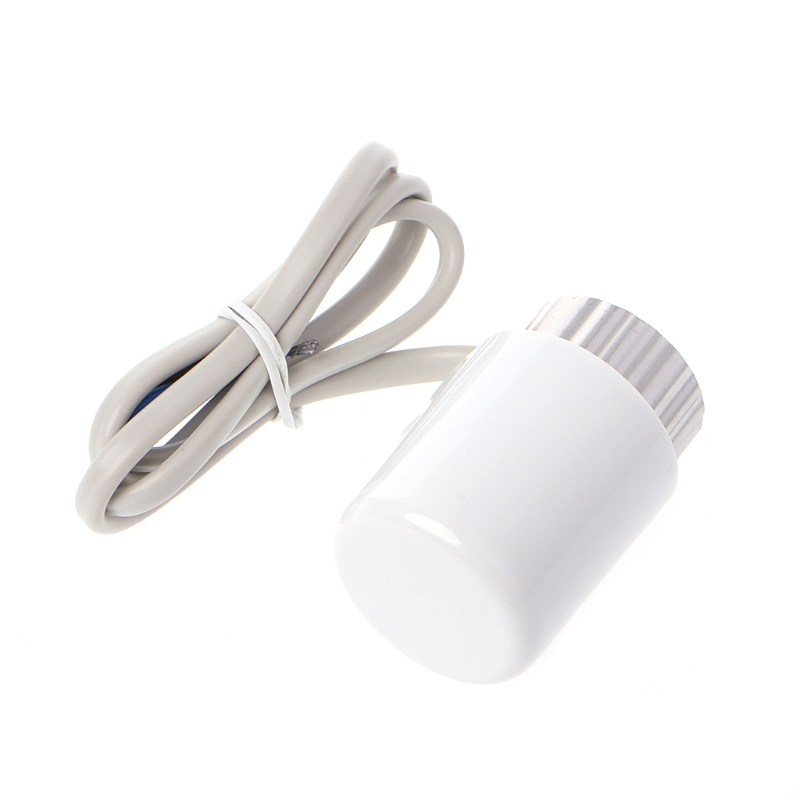

Normally Close Thermal Actuator For Underfloor Heating Manifold 230V 2W Waterproof IP54
- Type: Normally Closed
- Material: Retardant PC
- Voltage: 230V 2W
- Power: 2W
- Thrust: 110N
- Waterproof Level: IP54
SKU: Not Found
Brand: Unknown Brand
Out of stock
₹395.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This is a normally close thermal electric actuator for the underfloor heating manifold. It controls water flow through an underfloor heating system.
Features:
- Controls water flow through an underfloor heating system
- 2-wire connection with one valve per loop
- Unique quick-lock snap action.
- Red spot indicator on top
- Can be fixed easily to an adaptor ring
Package Includes:
1 x Normally Close Thermal Actuator For Underfloor Heating Manifold
Technical Specifications
| Connecting Mode | Size: M30x1.5mm |
|---|---|
| Diameter (mm) | 40 |
| Environmental Temperature (°C) | -5~60℃ |
| Input Voltage (VAC) | 230V 2W |
| Length (mm) | 65 |
| Material | Retardant PC |
| Max Thrust | 110N |
| Model | Thermal Actuator |
| Power Rating (W) | 2W |
| Shipping Dimensions | 7 × 5 × 5 cm |
| Shipping Weight | 0.225 kg |
| Timer | 3-5Min |
| Waterproof Level | IP54 |
| Weight (g) | 100 |
