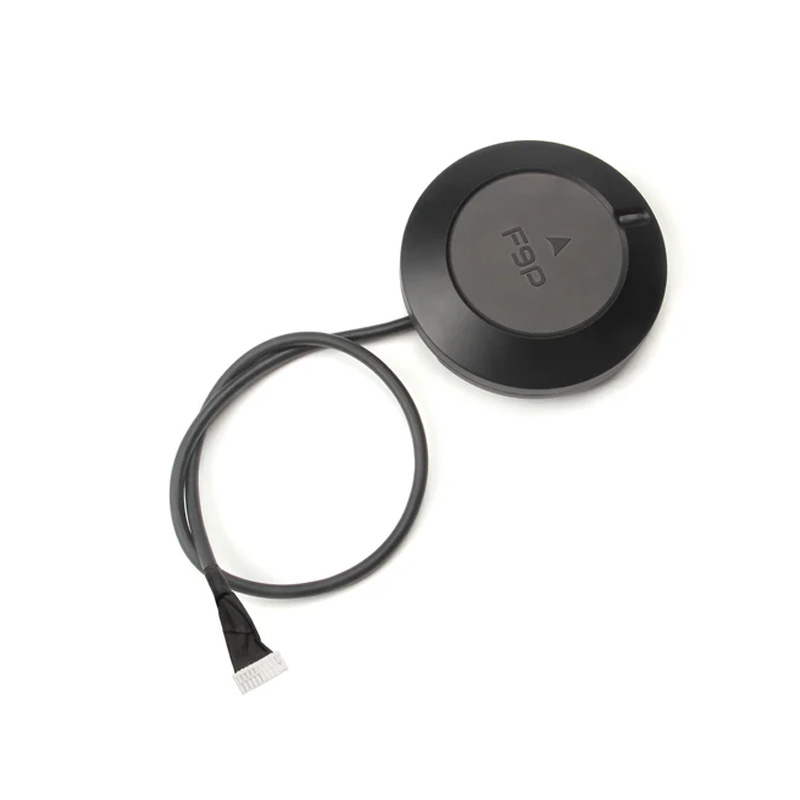

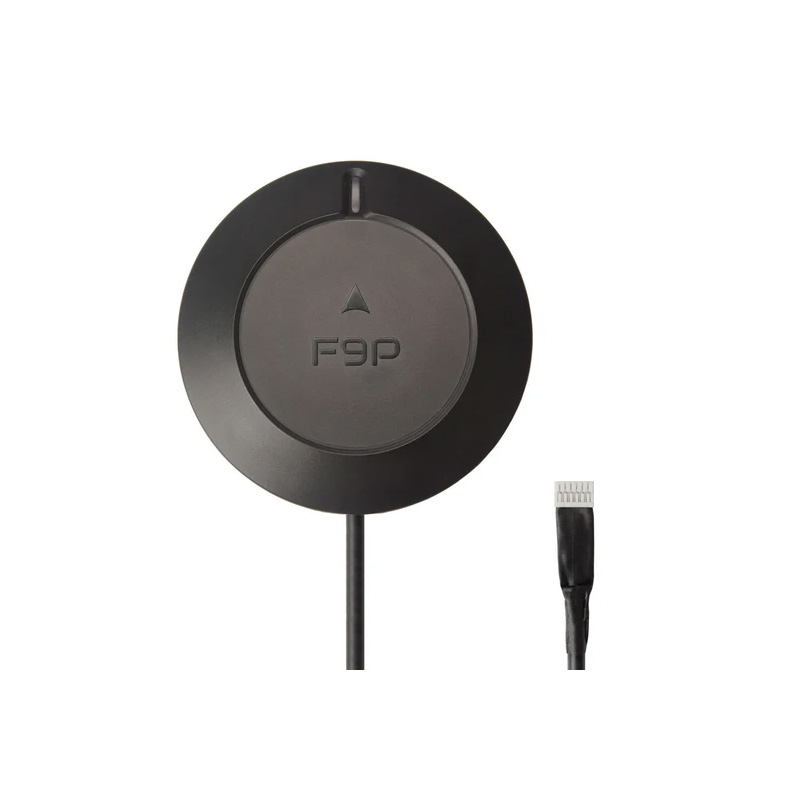

Holybro H-RTK ZED-F9P Rover – UART (6Pin)
- Model: H-RTK ZED-F9P Rover
- Integrated RM3100 Compass for orientation
- IP66 Rating: Dust and water-resistant
- Dual-Band Antenna with high gain
- Fast Start-up: 2s hot start, 25s cold start
- Data Rate: 20Hz for raw, 8Hz for RTK
SKU: Not Found
Brand: Holybro
Out of stock
₹38590.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Holybro H-RTK ZED-F9P Rover is a high-precision, multi-GNSS RTK GPS solution designed for demanding applications such as UAVs, ground vehicles, and marine systems. Powered by the u-blox ZED-F9P GNSS receiver, it offers centimeter-level accuracy by simultaneously receiving signals from multiple GNSS constellations including GPS, GLONASS, Galileo, BeiDou, and QZSS. The rover features an integrated RM3100 compass for precise heading and orientation, ensuring stability in complex environments.
- u-blox ZED-F9P GNSS receiver for centimeter-level accuracy
- Multi-GNSS support: GPS, GLONASS, Galileo, BeiDou, QZSS
- Integrated RM3100 compass for accurate orientation
- IP66-rated for dust and water resistance
- Dual-band stacked ceramic antenna with 20.5 dB LNA gain
- Fast convergence times: Hot start (2s), Cold start (25s)
- Data rate up to 20Hz for raw data, 8Hz for RTK
- Advanced anti-jamming and anti-spoofing technologies
- Wide operating temperature range: -40°C to +85°C
- Working voltage: 4.75V~5.25V, Current consumption: ~250mA
Package Includes:
1x H-RTK ZED-F9P Rover
1x Fixed Carbon Fiber GPS mount
Technical Specifications
| Antenna Type | Dual-band patch (Rover) |
|---|---|
| Current (mA) | 250 |
| Dimensions (mm) | 80 x 20 |
| GNSS Receiver | u-blox ZED-F9P with RTK accuracy |
| Input Voltage (V) | 4.75V~5.25V |
| Model Name | H-RTK ZED-F9P Rover |
| Operating Temperature (°C) | -20°C to 85°C |
| Protocol | UART (6Pin) |
| Shipping Dimensions | 14 × 10 × 7 cm |
| Shipping Weight | 0.223 kg |
| Weight (g) | 123 |
