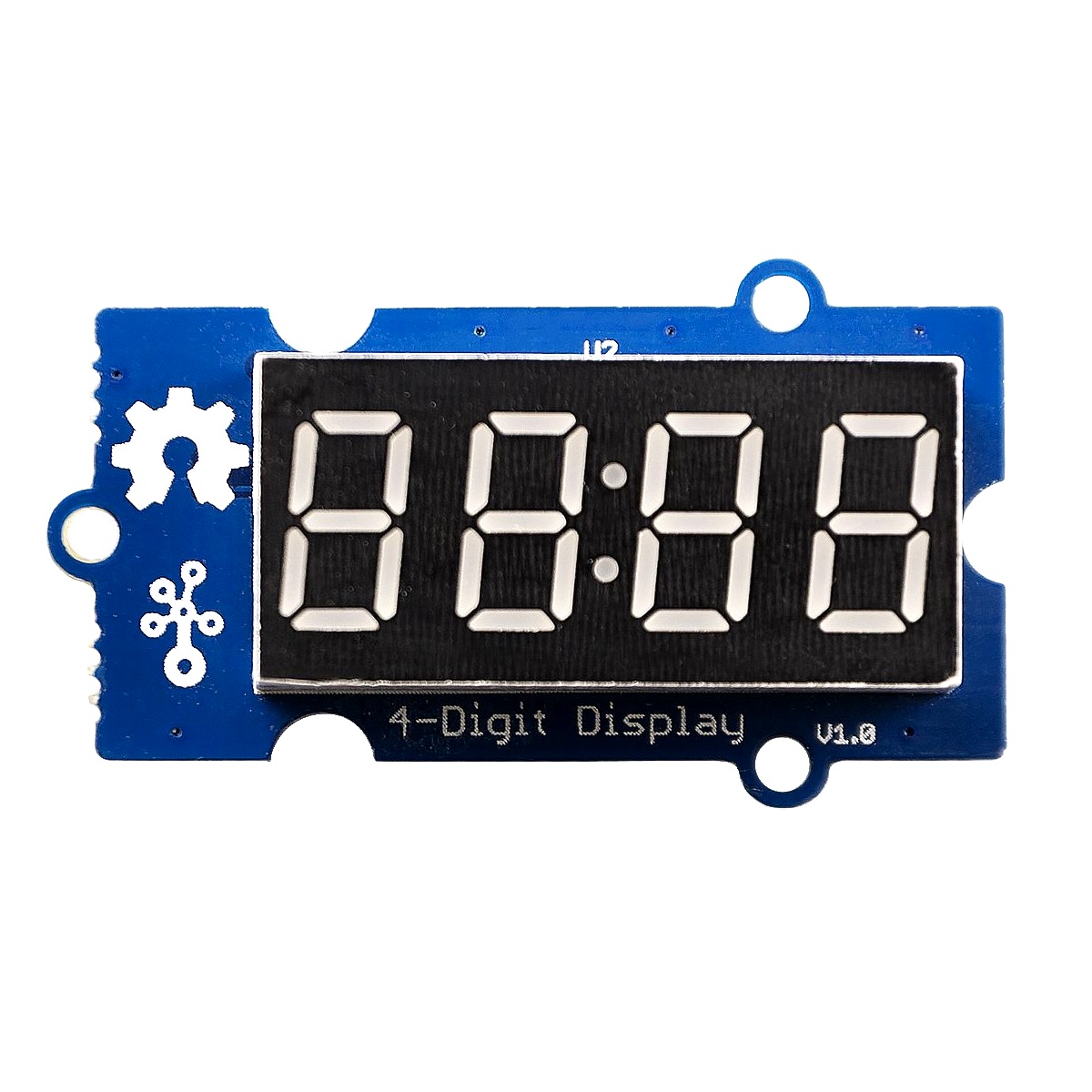

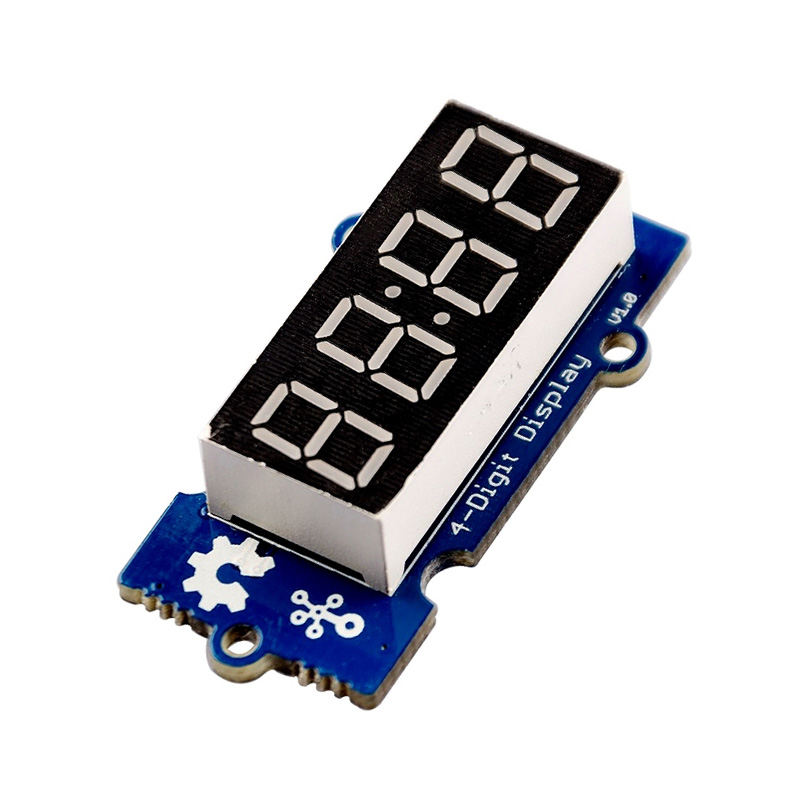

Seeed Studio Grove 4 Digit Display
- Operating voltage: 3.3 V to 5.5 V, typical 5 V
- Operating current: 0.2 mA to 80 mA, typical 27 mA
- 4 digit numeric display
- LED color: Red
- 8 adjustable luminance levels
- Grove compatible interface
SKU: Not Found
Brand: Seeed Studio
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

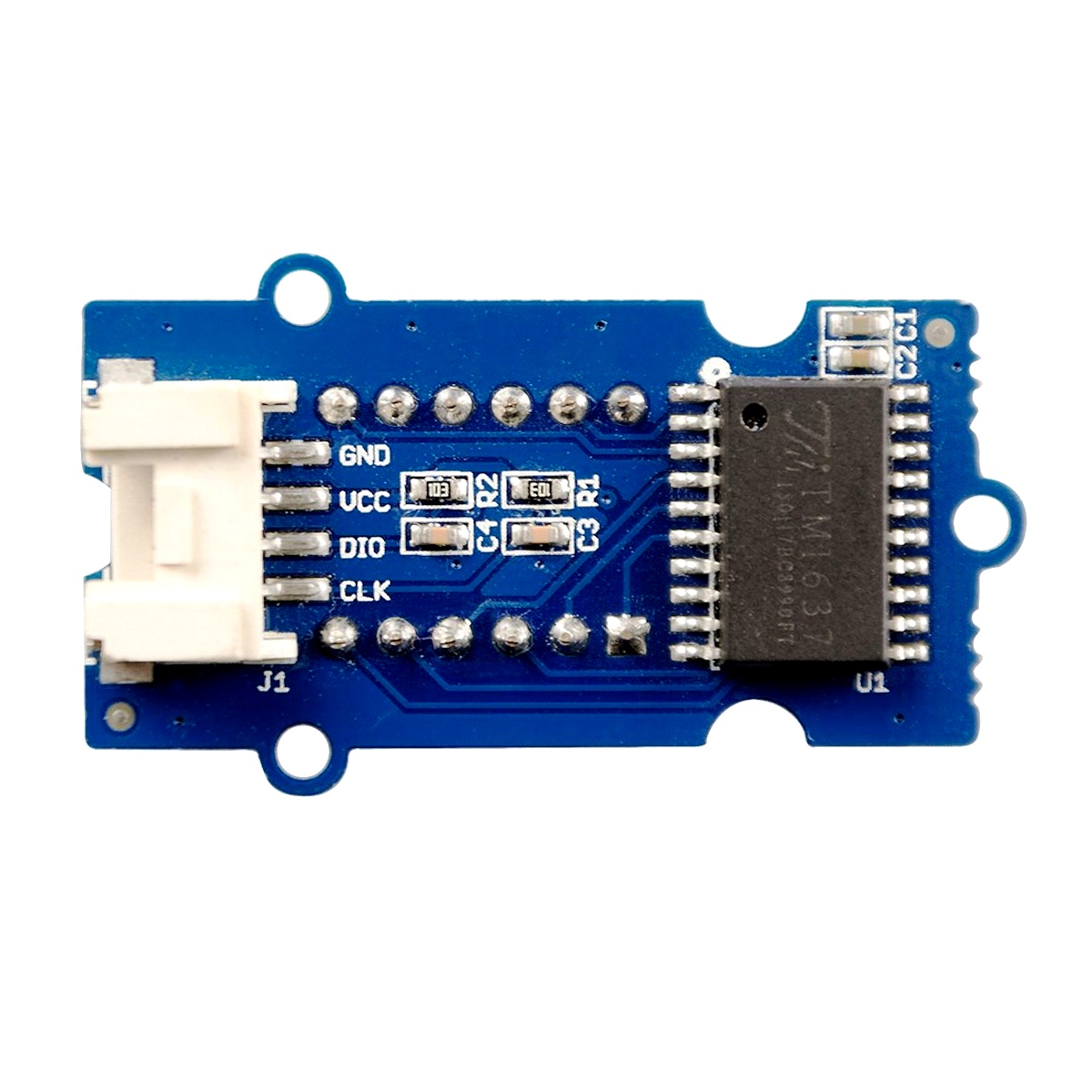

Need a numeric display? We have a solution for it, the Grove – 4-Digit Display. This is a 4 digit red numeric display having 8 adjustable luminance levels. It is usually a 12 pin module. In this Grove module, TM1637 chip is utilized to scale down the controlling pins into 2 Grove pins. It takes only 2 digital pins of Arduino or Seeeduino to control the content, even the luminance of this display.
For all Grove users (especially beginners), Seeed Studio provides guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before using the product. This is a suitable product for not only Grove users but also all electronic enthusiasts. You can use this display for applications such as time display, stopwatch, and sensors input display. So why wait? Buy it now!
Features:
- 4 digit red numeric display
- 8 adjustable luminance levels
- Grove compatible interface
Useful Links:
Package Includes:
1 x Seeed Studio Grove 4 Digit Display
Technical Specifications
| Configuration | 0.2 mA – 80A, typical 27 mA |
|---|---|
| Height (mm) | 12 |
| Length (mm) | 42 |
| Mounting Hole Diameter (mm) | 2 |
| Operating Voltage (VDC) | 3.3 ~ 5.5 |
| Shipping Dimensions | 9.8 × 6.8 × 1.2 cm |
| Shipping Weight | 0.01 kg |
| Weight (g) | 7 |
| Width (mm) | 24 |
