ESP8266 ESP 01 Wifi Module Downloader LINK v1.0 without Wireless Module
- Chipset: CH9102F
- USB Connector: USB-A
- Connector: 2 x 4p Female, 2 x 4p Male
- Reset Button: YES
- Suitable For: ESP8266 ESP-01, ESP8266 ESP-01(S)
SKU: Not Found
Brand: Generic
Out of stock
₹211.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

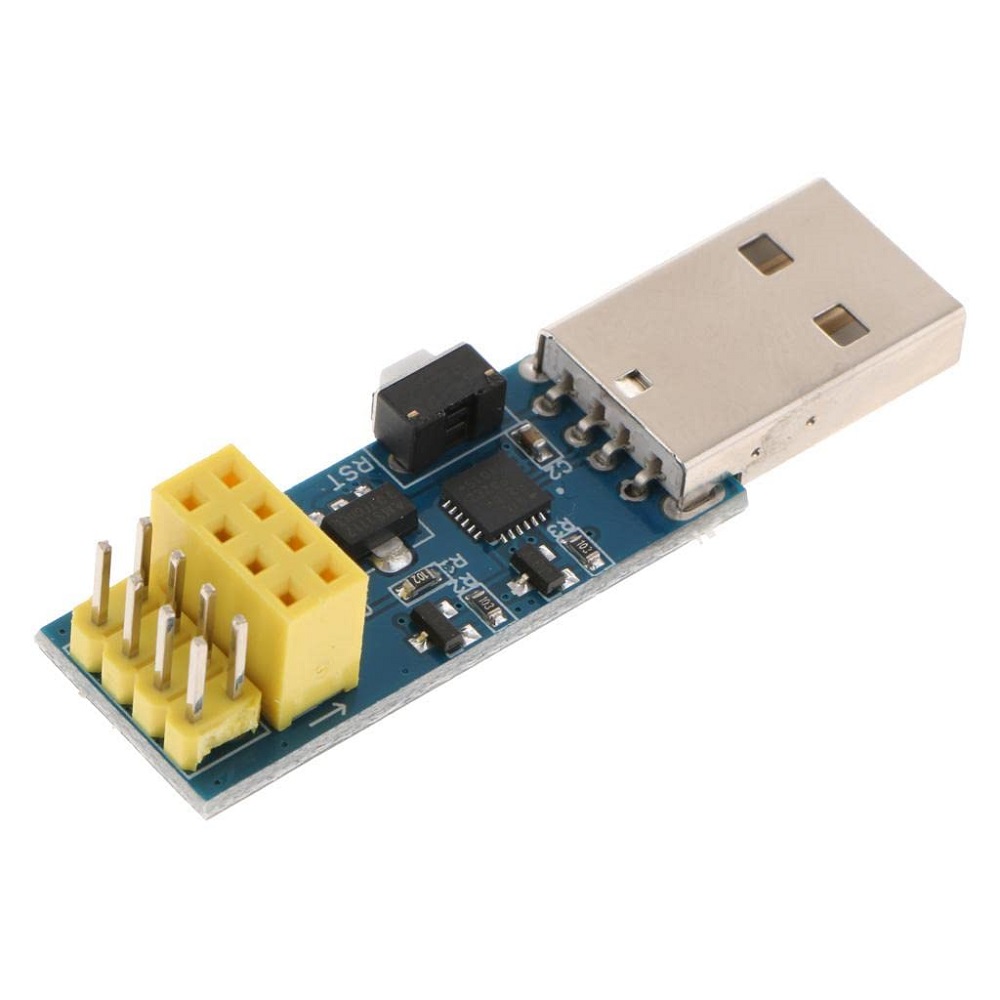

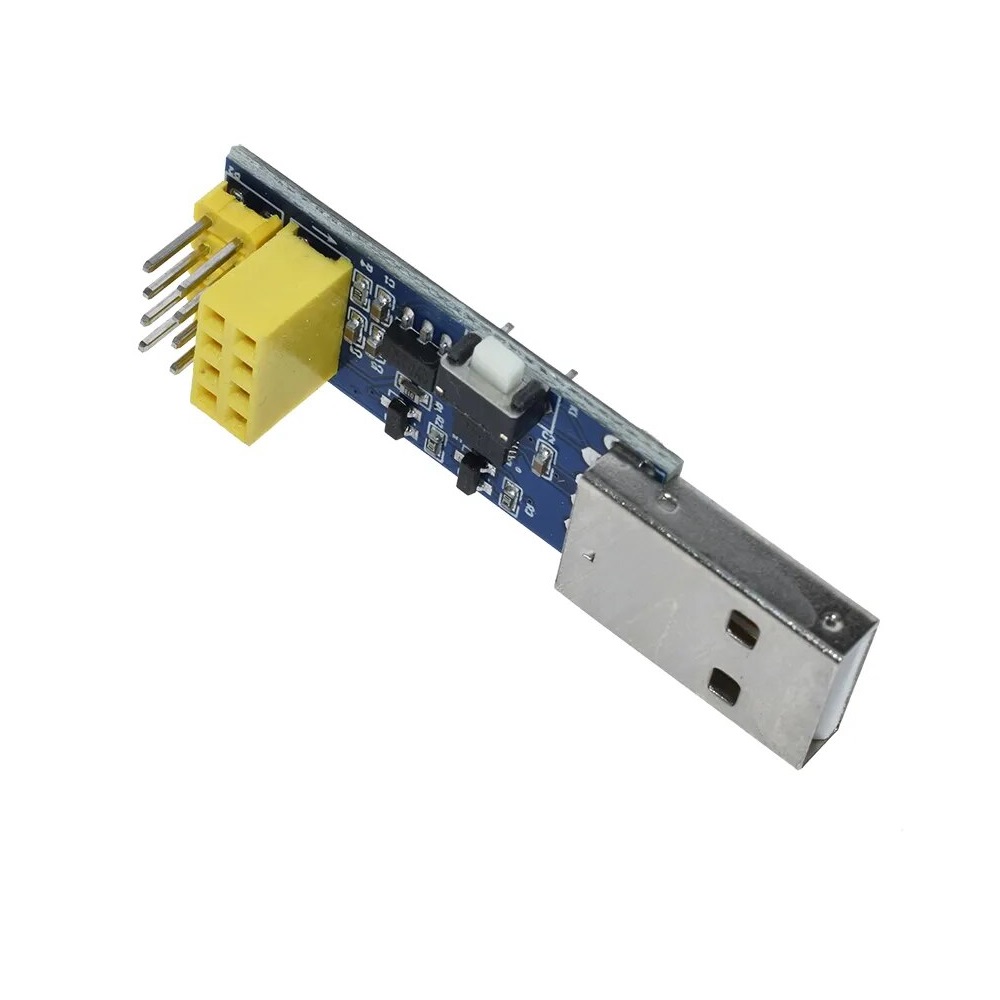

This ESP8266 ESP-01 wireless WIFI downloader uses a CH9102F USB serial port chip and adds an ESP8266 automatic download circuit.
It is very convenient for users to download ESP-01/01S programs, upgrade firmware, serial port debugging, etc.
It supports downloading software such as Arduino IDE, Essence ESP8266 Flasher, and Lexin FLASH_DOWNLOAD_TOOLS with one button.
It does not need to be downloaded. There is no need to press any buttons. The WiFi module will automatically enter the download mode.
Note: The ESP8266 ESP-01(S), ESP8266 ESP-01 is not included.
Features:
- This Wi-Fi downloader Uses a CH9102F USB serial Port Chip And Adds an Automatic Download Circuit.
- It Is Very Convenient For Users To Download Esp-01/01S Programs, Upgrade Firmware, Serial Port Debugging, Etc.
- It Supports Download Software Such As Arduino Ide, Essence Flasher, And Lexin Flash_Download_Tools with one Button.
- It Does Not Need To Be Downloaded. There Is No Need To Press Any Buttons. The Wi-Fi module Will Automatically Enter The Download Mode.
Package Includes:
1 x ESP8266 ESP 01 Wifi Module Downloader LINK v1.0 without Wireless Module
Technical Specifications
| Based On | ESP8266 Based |
|---|---|
| Chipset | CH9102F |
| Connector | 2 x 4p Female, 2 x 4p Male |

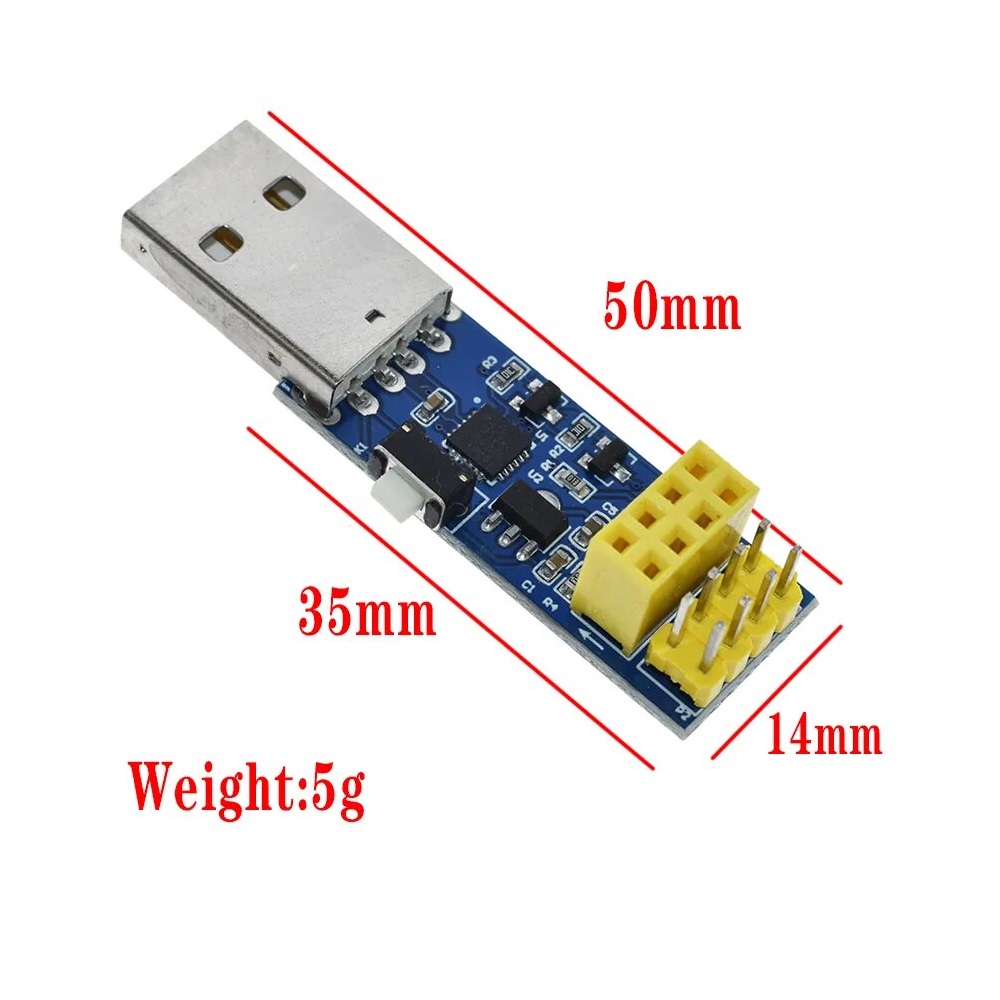

| Height (mm) | 12 |
| Item Type | WiFi Module |
| Length (mm) | 50 |
| Reset Button (Y/N) | YES |
| Shipping Dimensions | 8 × 6 × 2 cm |
| Shipping Weight | 0.005 kg |
| Suitable For | ESP8266 ESP-01, ESP8266 ESP-01(S) |
| USB Connector | USB-A |
| Weight (g) | 5 |
| Width (mm) | 14 |
