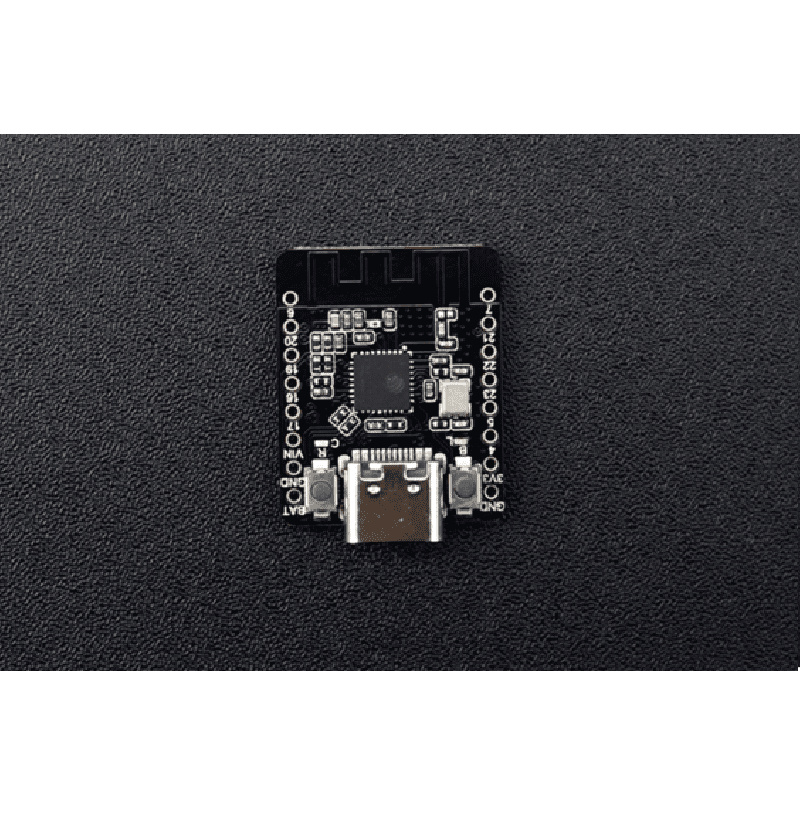

Beetle ESP32-C6 is a mini size Arduino low-power IoT development board based on the ESP32-C6 chip, featuring a compact design with dimensions as small as a coin (25*20.5mm). The ESP32-C6 is equipped with a high-performance 160MHz RISC-V 32-bit processor, supporting communication protocols such as Wi-Fi 6, Bluetooth 5, Zigbee 3.0, and Thread 1.3. It is capable of connecting to various IoT networks using multiple communication protocols, making it ideal for use as a Matter terminal device. The development board integrates lithium battery charging management, allowing for battery charging without the need for external modules. This feature contributes to a more compact project size, making it highly suitable for wearable applications.

Note: Actual product may vary in terms of the version printed on it.

Applications:

1. Electronic Badge
2. Backpack Charm
3. Pet Tracker
4. Electronic Watch
5. Smart Button
6. Smart Lighting
7. Human-Interactive Device

Features:

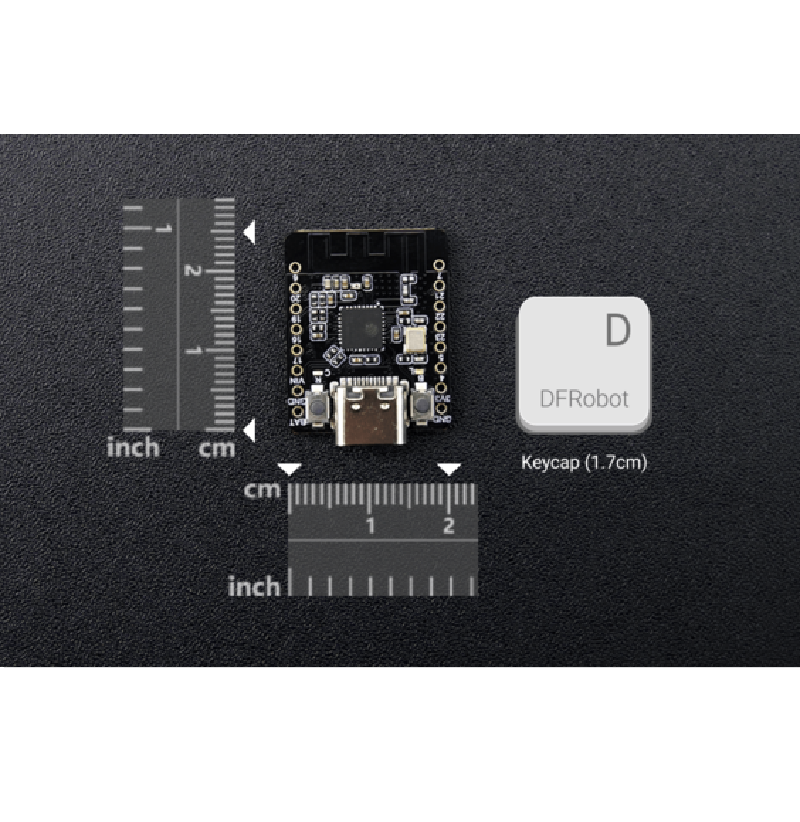

1. Ultra-compact size, measuring only 25*20.5mm.
2. Equipped with the ESP32-C6 chip, it supports communication protocols including Wi-Fi, BLE, Zigbee, and Thread.
3. Supports Wi-Fi 6 protocol for lower latency and lower power consumption.
4. Ultra-low power consumption with deep sleep at 14uA.
5. Integrated lithium battery charging functionality.
6. Supports battery voltage detection, providing insights into device power levels.

Hardware Information

• Processor: RISC-V single-core processor
• Main Frequency: 160 MHz
• SRAM: 512KB
• ROM: 320KB
• Flash: 4MB
• RTC SRAM: 16KB
• USB: USB 2.0 CDC

WIFI

• WIFI Protocol: IEEE 802.11b/g/n
  IEEE 802.11ax (20 MHz-only non-AP mode)
• Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
• WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
• WIFI Frequency: 2.4GHz
• Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU

Bluetooth

• Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
• Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

IEEE 802.15.4

• Compatible with IEEE 802.15.4-2015 protocol
• Frequency band: 2.4GHz
• Data rate: 250Kbps
• Supports Thread 1.3 and Zigbee 3.0

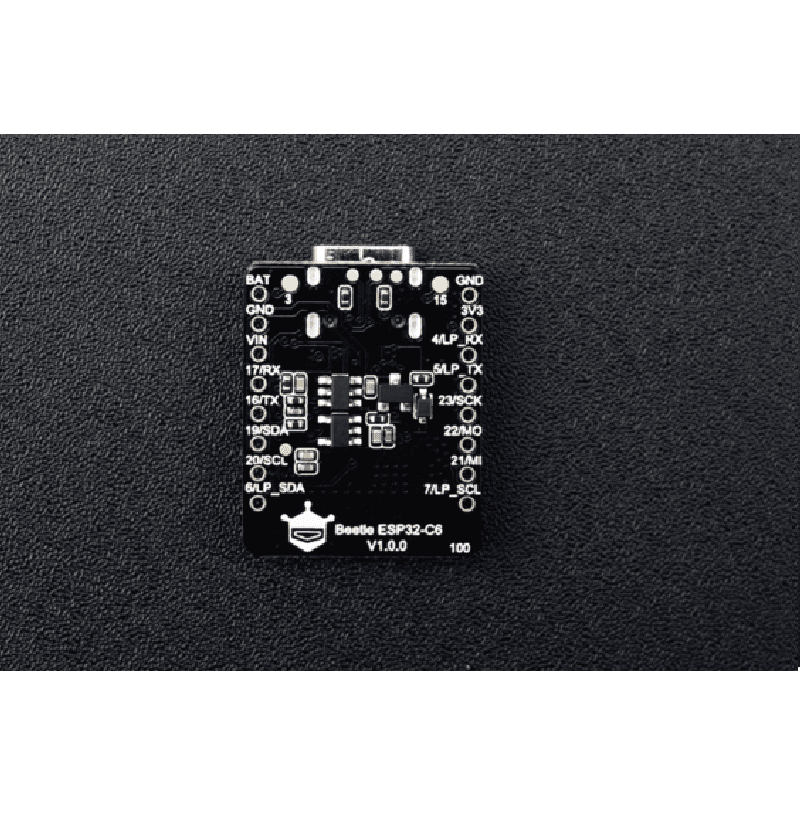

Ports

• Digital I/O x13
• LED PWM 6 Channel
• SPI x1
• UART x3 (LP UART x1)
• I2C x2 (LP I2C x1)
• I2S x1
• IR Transceiver: transmit channel x5, receive channel x5
• 1 × 12-bit SAR ADC, 7 Channel
• DMA Controller: transmit channel x3, receive channel x3

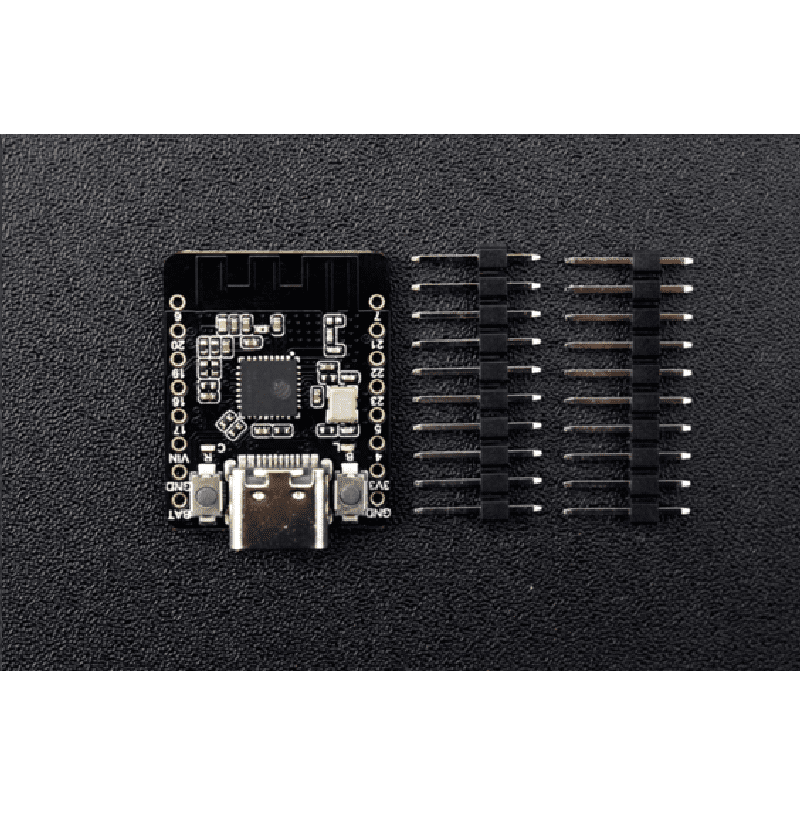

Package Includes:

1 x Beetle ESP32 C6 Mini Development Board

2 x 10pin-2.54mm Pin Header
