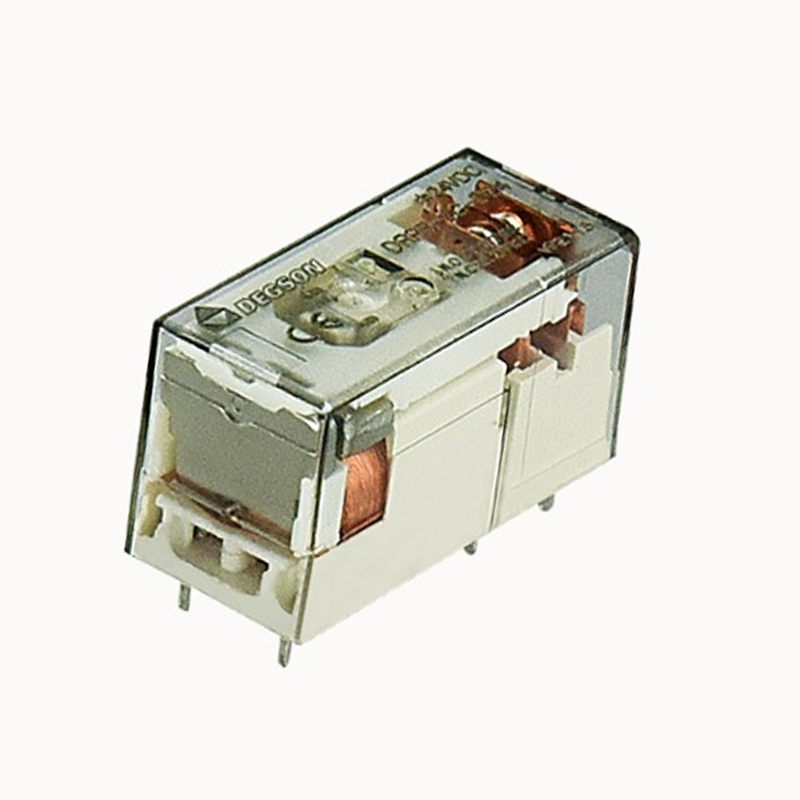

The Degson Single relay 1C 24VDC is a compact and powerful relay designed to control high currents up to 12A. This relay features a single changeover contact, a test lever, and an instruct light for easy monitoring and testing.

It is rated for a control voltage of 24VDC, making it suitable for a wide range of applications. With a small volume and robust construction, this relay is ideal for use in tight spaces and demanding environments. Whether you need to control motors, lights, or other electrical devices.

Features and Specifications:

1. Contact Rating: 12A at 250VAC/30VDC (resistive load), 7A at 250VAC (inductive load)
2. Coil Voltage: 24VDC
3. Coil Power Consumption: 0.36W
4. Contact Resistance: ≤100mΩ
5. Insulation Resistance: ≥100MΩ (500VDC)
6. Dielectric Strength: Between coil and contacts: 5000VAC; Between contacts: 1000VAC
7. Mechanical Life: 10 million operations (no load)
8. Electrical Life: 100,000 operations at rated load
9. Ambient Temperature: -40°C to +85°C
10. Dimensions (L x W x H): 27mm x 12.7mm x 20mm
11. Weight: 10g

Package Includes:

1 x Degson Single relay 1C 24VDC
